PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
— To prevent personal injury or product damage only licensed electricians should install.
— To avoid electric shock or component damage, disconnect power before attempting installation or servicing.
— This product must be installed in accordance with the national electric code (NEC) and all applicable federal, state, and local electric codes and safety standards.
— Disconnect product and allow cooling prior to servicing.
— This luminaire is designed to operate in ambient temperatures ranging from -40°F to 104 °F and to be horizontally mounted with the LEDs facing down.
— This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the
hazards involved.
— MIN 167°F (75°C) SUPPLY CONDUCTORS
— CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CIRCUIT CONDUCTOR
— CAUTION - RISK OF FIRE
— When equipped with a Photocell,
— This product is not suitable for several special environments, such as places with corrosive gas liquids or high pressure water vapor.
Mount Installation Guide
Mounting Accessories
Twist-Lock Photocell
Multi-Level Motion Sensor (100W 120-277V)

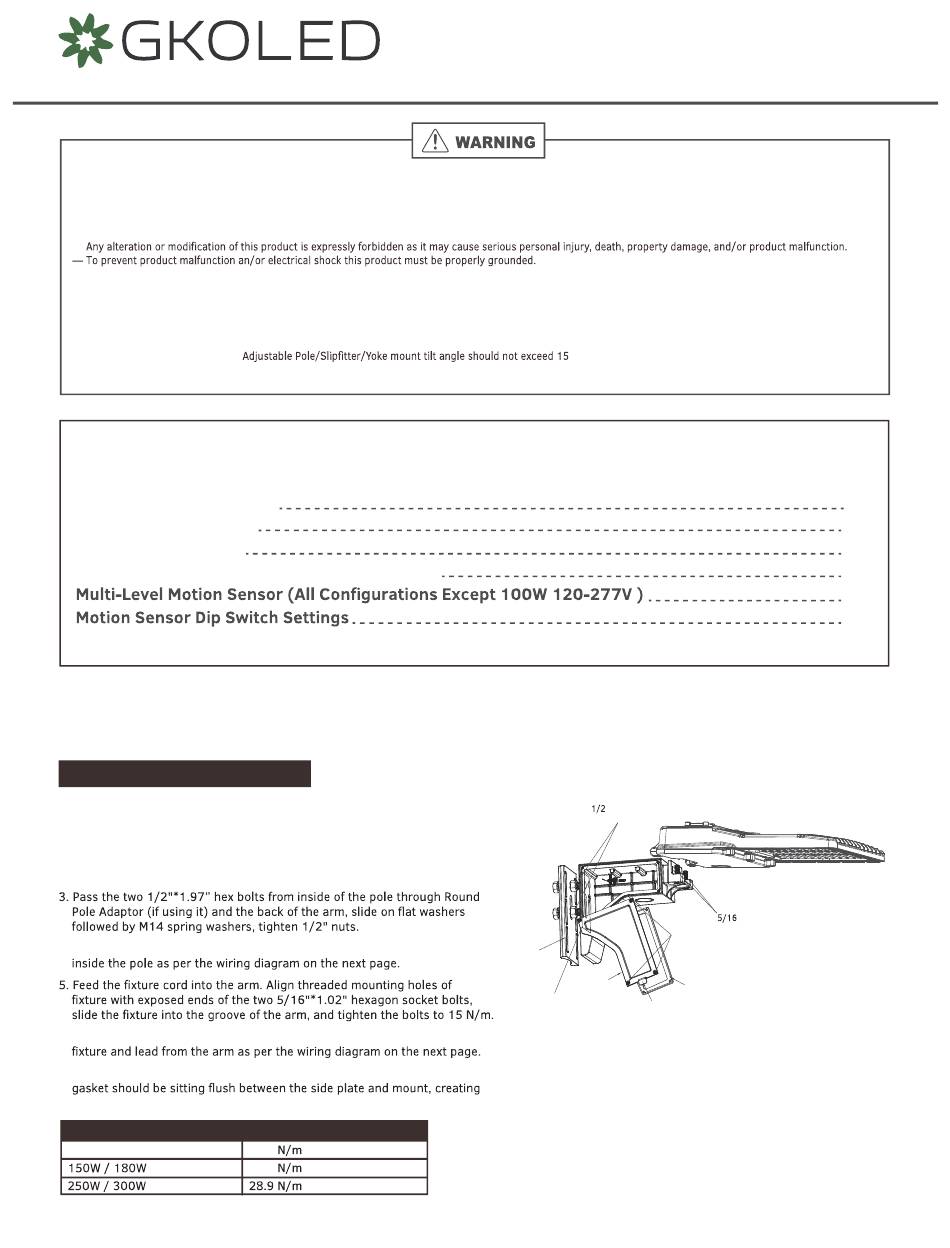

Mount Installation Guide
Square/Round Pole (Figure 1)
1. Loosen the four PM4*12mm screws and remove the side plate and
rubber gasket from the mounting bracket. Please skip to Step 3 if using a
Square Pole Mount.
2. If using the Round Pole Adaptor, place the adaptor between the arm and
the pole, with the radius side of adaptor towards pole.
4. Feed the lead from the arm into the pole and make wiring connections
6. Inside the arm, make wiring connections between the lead from the
7. Reinstall the side plate and rubber gasket, tightening the screws. The
a tight seal around the edges.
Square Pole Mount Torque Values At Install for 1.5G Testing
100W
GKO-V1-0924-US
®
Content
29.5
29.2
LED AREA LIGHT
°.
"*1.97(inch)
UNC Bolts
Round Pole
Adaptor
Side Plate
PM4*12(mm) Screws
Open Tab
Series GKOALG5
Installation Guide
P1
P3
P4
P5
P7
P9
"*1.02(inch)
UNC Bolts
PM4*12(mm)
Screws
Gasket
(Figure 1)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the GKOALG5 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for GKOLED GKOALG5 Series

  • Page 1 Series GKOALG5 ® LED AREA LIGHT Installation Guide PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION — To prevent personal injury or product damage only licensed electricians should install. — To avoid electric shock or component damage, disconnect power before attempting installation or servicing. —...
  • Page 2 Adjustable Pole Mount (Figure 2) HWM4*6(mm) "*1.575(inch) M10 Screw Screws UNC Screws " screws. 3. Route the cord into the mounting bracket through the wiring hole, "*1.02(inch) UNC Screws Side Plate Gasket A screws. Gasket B PM4*12(mm) Screws Side Plate page, replace the two side plates, and fasten the PM4*12(mm) screws.
  • Page 3: Wiring Diagram

    Wiring Diagram Note: Black Line PHOTOCONTROL MOTION SENSOR White Neutral BLACK Ground LAMPLOAD WHITE Purple Pink INPUT Mounting Accessories Mounting Type Accessory Quantity Adjustable Pole Mount Bolt "*1.575 Gasket A L100W22H2 Gasket Adjustable Pole Mount Gasket B L100W30H3 Gasket Pole Mount Arm Bolt "...
  • Page 4 Please Note: If a Twist-Lock Photocell is installed, a Multi-Level Motion Sensor cannot be installed. 2.519in. (64mm.) 2.165in. (55mm.) Illumination Threshold: Illumination Threshold: Net Weight: 90g±2g Net Weight: 110g Installation (Figure 7) 1. IMPORTANT: 1. Remove the three screws and open the cover of the power photocell installation.
  • Page 5 Please Note: If a Multi-Level Motion Sensor is installed, (For 100W 120-277V & All 480V) a Photocell cannot be installed. 1.77in. (45mm.) 2in. (50mm.) 1.4in. (34.5mm.) 1.29in. 1.63in. (41.3mm.) 32.9mm. Ø2.4in. (61mm.) 19.2mm. Sensor Coverage Coverage Side View 12-24V DC Coverage Top View Detection Radius &...
  • Page 6 Select the daylight sensor function by pushing when the remote control is in setting mode. Power On Settings In This Demonstration: Check Every 30 Min. Motion (The Motion when the Daylight Sensor is activated.) 100% Hold-Time Ends goes in a cycle when motion is detected, motion is detected for a long time.
  • Page 7 Please Note: If a Multi-Level Motion Sensor is installed, a Photocell cannot be installed. 3.5in. (90mm.) 1.6in. (41mm.) 1.4in. (35.97mm.) 32.9mm. Ø2.4in. (61mm.) 19.2mm. Sensor Coverage Coverage Top View Coverage Side View 0-10V, default 10V Detection Radius & Angle: 30' @ 40' Mounting Height, 360° Mounting Height: 360°...
  • Page 8 Select the daylight sensor function by pushing when the remote control is in setting mode. Power On Settings In This Demonstration: Check Every 30 Min. Motion (The Motion when the Daylight Sensor is activated.) 100% Hold-Time Ends goes in a cycle when motion is detected, motion is detected for a long time.
  • Page 9: Dip Switch Factory Settings

    For Both Multi-Level Motion Sensors Dip Switch Factory Settings (FOR 100W 120-277V & ALL 480V) SENSOR DETECTION RANGE: STAND-BY LIGHT LEVEL: SENSOR HOLD TIME: 5 MINUTES STAND-BY TIME: 30 MINUTES LIGHT THRESHOLD: DISABLED (EXCEPT 100W 120-277V & ALL 480V) The operating parameters of the motion sensor may be adjusted directly from the sensor or remotely using an optional remote control. Adjustments made directly to the sensor are done using a set of dip switches on the sensor body, in the locations indicated in the above image.
