GKOLED GKOHB06 Series Installation Manual

PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
— To prevent personal injury or product damage only licensed electricians should install.
— To avoid electric shock or component damage, disconnect power before attempting installation or servicing.
— This product must be installed in accordance with the national electric code (NEC) and all applicable federal, state, and local electric codes and safety standards.
— Disconnect product and allow cooling prior to servicing.
—
— This luminaire is designed to operate in ambient temperatures ranging from -40°F to 122 °F and to be horizontally mounted with the LEDs facing down.
— This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the
hazards involved.
— MIN 167°F (75°C) SUPPLY CONDUCTORS
— This product is not suitable for several special environments, such as places with corrosive gas liquids or high pressure water vapor.

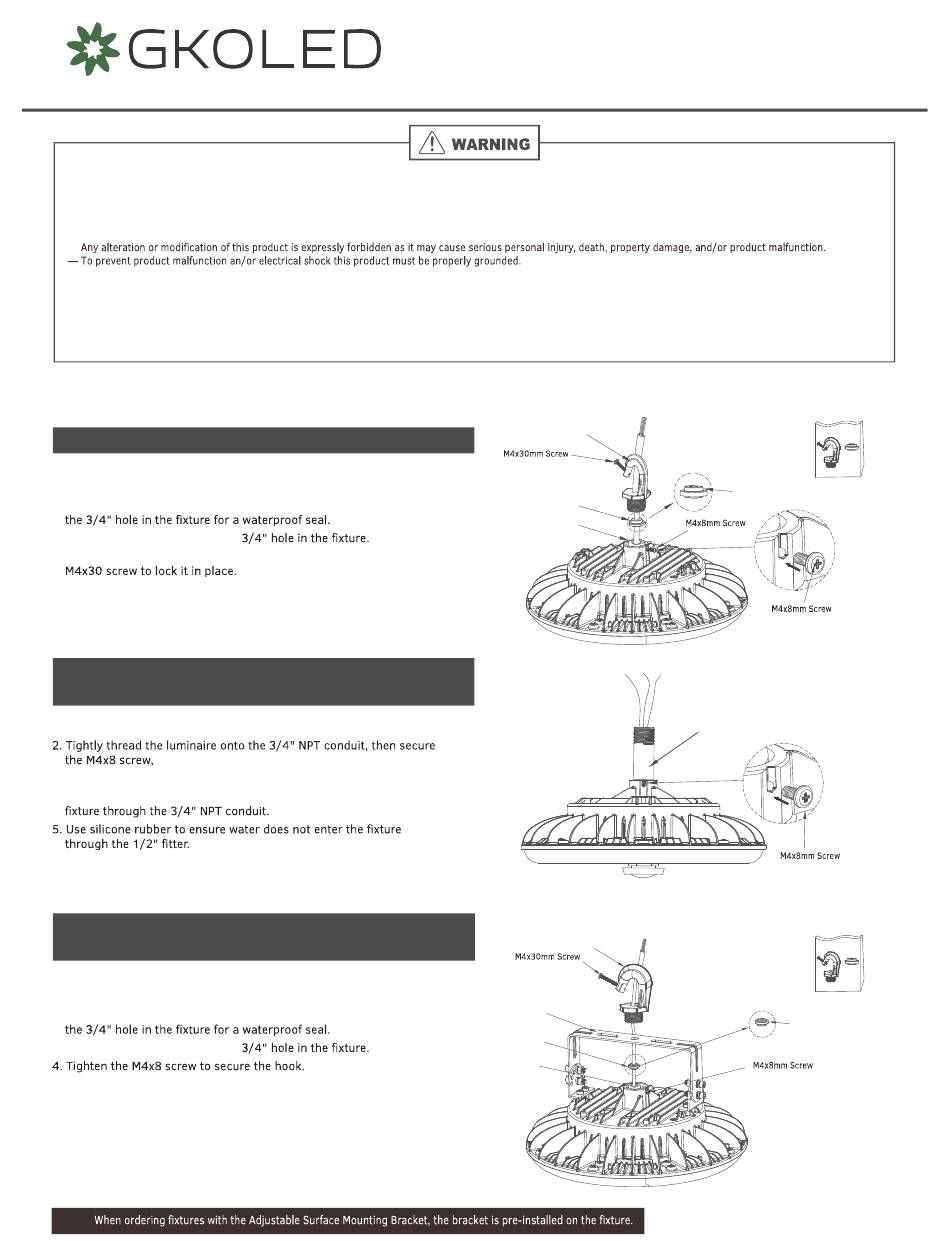

Installation Guide
Hook Installation - Included
1. Remove the line cord protector before installing.
2. Remove the hook from the accessory packet and thread the power
cord through the hole in the hook, ensuring the gasket is kept inside
3. Tightly thread the hook into the
4. Attach the hook to the desired installation point, then tighten the
5. Make wiring connections as per the wiring diagram.
Pendant Mounting With 3/4" Conduit - Optional
(Conduit Not Included)
1. Remove the line cord protector before installing.
3. Make wiring connections as per the wiring diagram.
4. Caulk conduit openings to ensure that moisture does not enter the
Surface Mounting With Adjustable Surface Mounting
Bracket - Optional (Bracket Sold Separately)
1. Remove the line cord protector before installing.
2. Remove the hook from the accessory packet and thread the power
cord through the hole in the hook, ensuring the gasket is kept inside
3. Tightly thread the hook into the
5. Secure the mounting bracket to the surface, adjust to the desired
angle, and lock the angle adjustment screw.
6. Make electrical connections according to the wiring diagram.
NOTE:
Series GKOHB06 - 67W & 140W
®
Hook
Gasket
Line Cord Protector
Adjustable Surface
Mounting Bracket
Gasket
Line Cord Protector
LED HIGH BAY
Installation Guide
IMPORTANT:
Ensure Gasket Locker End
is facing up.
Locker End
3/4" Conduit (Not Included)
Conduit must be made of steel with a thickness
greater than 2.5mm (.1in), with minimum
load-bearing of the conduit thread head over 25lb.
Hook IMPORTANT:
Ensure Gasket Locker End
is facing up.
GKO-V1-0924-US
Accessory Packet
Accessory Packet
Locker end
