GKOLED GKOALG5 Series Installation Manual

PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
— To prevent personal injury or product damage only licensed electricians should install.
— To avoid electric shock or component damage, disconnect power before attempting installation or servicing.
— This product must be installed in accordance with the national electric code (NEC) and all applicable federal, state, and local electric codes and safety standards.
— Disconnect product and allow cooling prior to servicing.
— Any alteration or modification of this product is expressly forbidden as it may cause serious personal injury, death, property damage, and/or product malfunction.
— To prevent product malfunction an/or electrical shock this product must be properly grounded.
— This luminaire is designed to operate in ambient temperatures ranging from -40°F to 104 °F and to be horizontally mounted with the LEDs facing down.
— This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the
hazards involved.
— MIN 167°F (75°C) SUPPLY CONDUCTORS
— CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CIRCUIT CONDUCTOR
— CAUTION - RISK OF FIRE
— When equipped with a Photocell, Adjustable Pole/Slipfitter/Yoke mount tilt angle should not exceed 15°.
— This product is not suitable for several special environments, such as places with corrosive gas liquids or high pressure water vapor.
Installation Guide
Square/Round Pole (Figure 1)
1. Loosen the four PM4*12mm screws and remove the side plate and
rubber gasket from the mounting bracket. Please skip to Step 3 if using a
Square Pole Mount.
2. If using the Round Pole Adaptor, place the adaptor between the arm and
the pole, with the radius side of adaptor towards pole.
3. Pass the two 1/2"*1.97" hex bolts from inside of the pole through Round
Pole Adaptor (if using it) and the back of the arm, slide on flat washers
followed by M14 spring washers, tighten 1/2" nuts.
4. Feed the lead from the arm into the pole and make wiring connections
inside the pole as per the wiring diagram on the next page.
5. Feed the fixture cord into the arm. Align threaded mounting holes of
fixture with exposed ends of the two 5/16"*1.02" hexagon socket bolts,
slide the fixture into the groove of the arm, and tighten the bolts.
6. Inside the arm, make wiring connections between the lead from the
fixture and lead from the arm as per the wiring diagram on the next page.
7. Reinstall the side plate and rubber gasket, tightening the screws. The
gasket should be sitting flush between the side plate and mount, creating
a tight seal around the edges.
Adjustable Pole Mount (Figure 2)
1. Loosen the six PM4*12 screws and remove the two side plates.
2. Attach the bracket to the pole using the provided two 3/8" screws.
3. Loosen the M10 screw and adjust the fixture to the desired angle.
3. Route the cord into the mounting bracket through the wiring hole,
slide the fixture onto the bracket and tighten the two bottom 5/16"
screws.
4. Make wiring connections as per the wiring diagram on the next
page, replace the two side plates, and fasten the PM4*12(mm)
screws. When replacing the side plates, make sure that the power
cord is not exposed and does not press against the wiring.
Wall Mount (Figure 3)
1. Loosen the four PM4*8(mm) screws and remove the side plate from the
mounting bracket.
2. Attach the back plate to the arm bracket using the KM4*10(mm) screws.
3. Use the provided plastic template to locate the places to drill the holes
in the wall, then attach the bracket to the wall using four 3/8" screws
(not included).
4. Route the power cord into the mounting bracket, slide the fixture onto
the bracket, then tighten the two bottom 5/16" screws.
5. Make wiring connections as per the wiring diagram on the next page,
replace the side plate, and fasten the PM4*8(mm) screws.

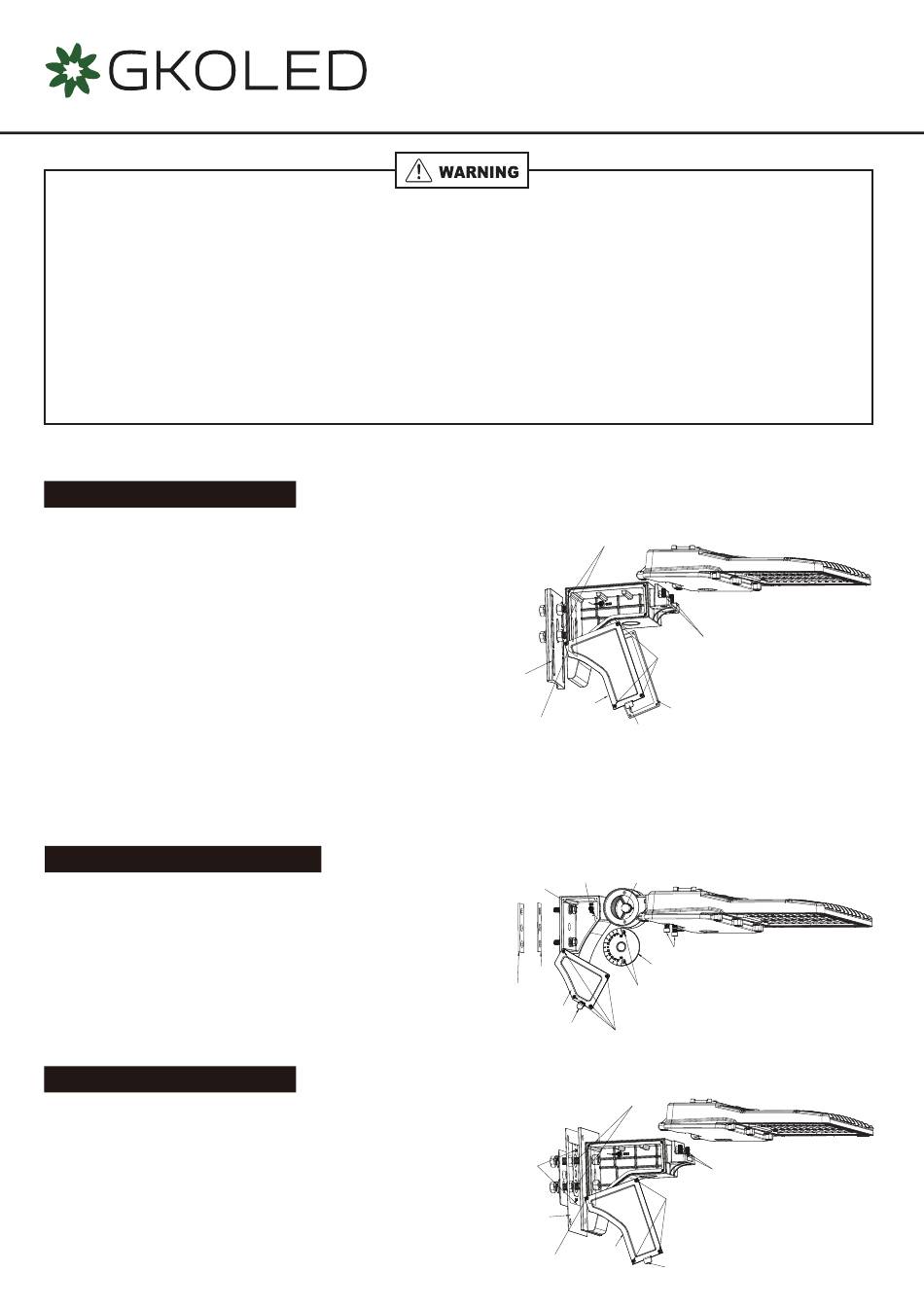

LED AREA LIGHT
®
Round Pole
Adaptor
PM4*12(mm) Screws
3/8"*1.575(inch)
UNC Screws
Gasket A
Gasket B
Side Plate
KM4*10(mm)
Screws
Back Plate
PM4*12(mm)
Screws
Series GKOALG5
Installation Guide
1/2''*1.97(inch)
UNC Bolts
5/16''*1.02(inch)
UNC Bolts
PM4*12(mm)
Screws
Side Plate
Gasket
Open Tab
HWM4*6(mm)
M10 Screw
Screws
5/16"*1.02(inch)
UNC Screws
Side Plate
PM4*12(mm)
Screws
OPEN
PM4*12(mm)
Screws
1/2"*1.46(inch)
UNC Screws
5/16"*1.02(inch)
UNC Screws
PM4*8(mm) Screws
Side Plate
OPEN
(Figure 1)
(Figure 2)
(Figure 3)
