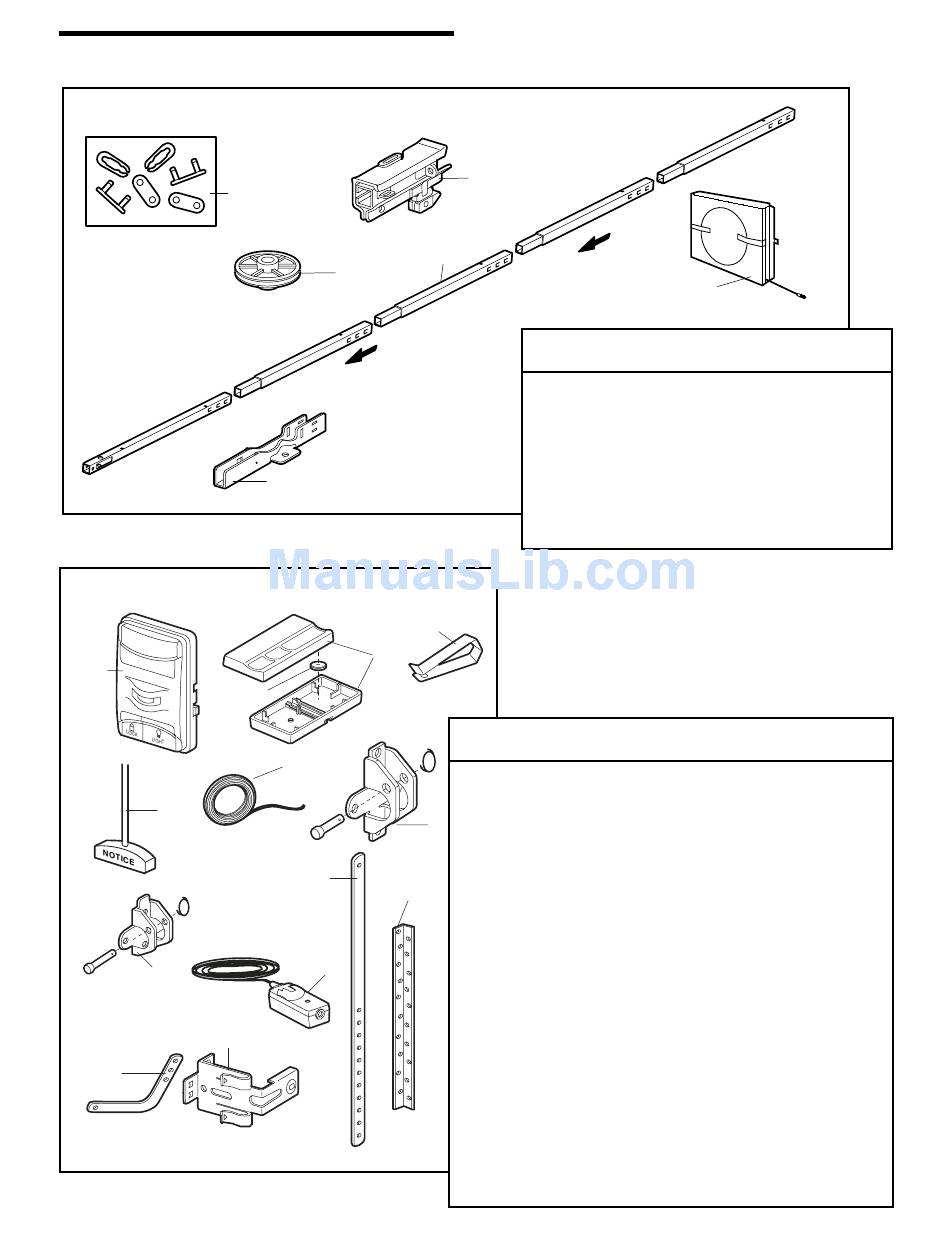

REPAIR PARTS

Rail Assembly Parts

1

Installation Parts

1
5
8
13
12
4
6
4
2
3
6
7
10
11
9
2
3
KEY PART
NO. NO.
1 4A1008
2 41C5141-1
3 41A5665-2
4 144C56
5 41A5807-3
6 12D598-1
183A163
KEY PART
NO. NO. DESCRIPTION
1 935C Motion detecting control panel
2 953CD 3-Button remote control
3 10A20 3V 2032 Lithium battery
4 29B137 Remote control visor clip
5 41A2828 Emergency release rope and handle
assembly
6 41B4494-1 2-Conductor bell wire: white and
white/red
7 41A5047 Door bracket w/clevis pin and fastener
8 41A5047-2 Header bracket w/clevis pin and fastener
9 41A5034 Safety sensor kit: receiving and sending
eyes with 3' (.9 m) 2-conductor bell
wire attached
10 178B34 Straight door arm section
11 12B776 Hanging bracket
12 178B35 Curved door arm section
13 41A5266-1 Safety sensor brackets (2)
NOT SHOWN
41A5258-9 Installation hardware bag
(includes hardware listed on page 7)
114A3211 Owner's manual
37
5
DESCRIPTION
Master link kit
Complete trolley assembly
Complete rail
Idler pulley
Chain and cable
"U" bracket
NOT SHOWN
Wear pads
