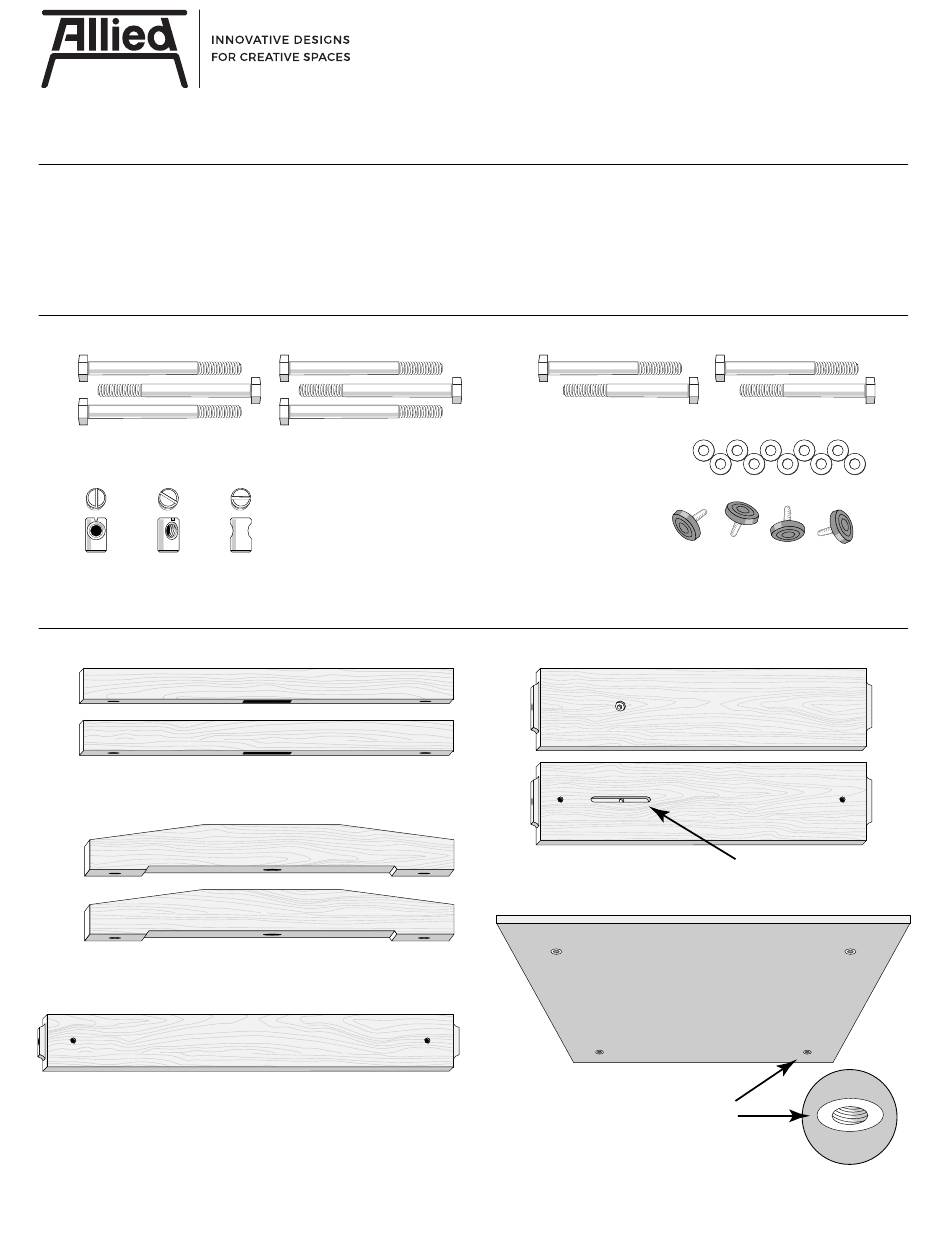

Tools Required for Assembly:
• ⅜" Ratchet with ½" Socket & 3" Extension
• Flat Screwdriver
Included Hardware:
6 x 4½" Hex Bolts
6 x Dowel Nuts
Wood Components:
2 x Top Supports
2 x Bottom Supports
1 x Stretcher
For Customer Service Call 1-800-999-0386
Solid Wood Art Table
with Laminate Top
®
Assembly Instructions
4 x 2¾" Hex Bolts
10 x Flat Washers
4 x Glides
2 x Center Supports
1 x Hardwood Top
Tables: AT3060FM
AT4260FM
Elongated Slot
Threaded Inserts
AT4272FM
R120722
