6ea. 4-1/2" Hex
Bolts
10ea. Flat Washers
2ea Top Supports
2ea Middle Supports

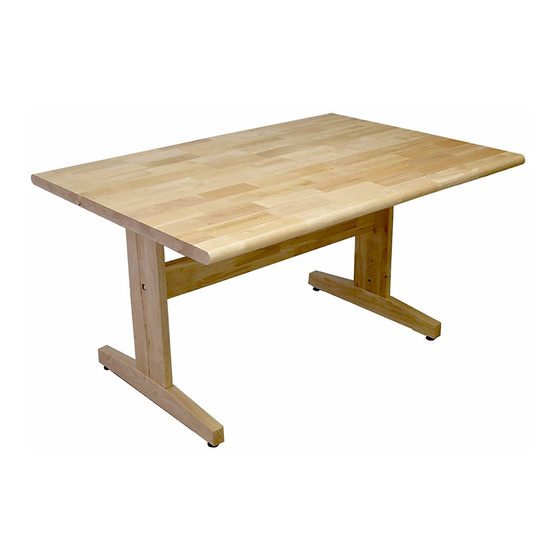

Muse Art Table
Assembly Instructions
Tools required for assembly
1.) 3/8" Ratchet Wrench
2.) 3" extension
3.) 1/2" socket
4.) Standard Screwdriver (flat head)
Hardware Components
Wood Pedestal Components
4ea. 2-3/4" Hex
Bolts
6ea. Dowel Nuts
2ea Bottom Supports
1ea Stretcher
Phone 904-359-0386
www.alliedmanufacturing.com
4ea. Glides
Advertisement
Table of Contents
Related Manuals for Allied Muse Art Table
Summary of Contents for Allied Muse Art Table
- Page 1 Muse Art Table Assembly Instructions Tools required for assembly 1.) 3/8” Ratchet Wrench 2.) 3” extension 3.) 1/2” socket 4.) Standard Screwdriver (flat head) Hardware Components 4ea. 2-3/4” Hex 4ea. Glides 6ea. 4-1/2” Hex Bolts Bolts 10ea. Flat Washers 6ea. Dowel Nuts...
- Page 2 End Pedestal Assembly 1.) Glides should be pre-installed in bottom supports 2.) Fasten bottom support and top support to middle support (ensure extended slot in middle support is closer to the top support.) 3.) Install top and bottom support using 4-1/2 hex bolts with washers. The bolt with washer is placed through the hole in the supports to egage the dowel nuts,.
