Allied MOBILE ADMIN/TEACHER DESK MTSP2454 Assembly Instructions

ASSEMBLY INSTRUCTIONS
MOBILE ADMIN/TEACHER DESK
MDPED
10 x
4 x
1 x
KNOCK OUTS
INWARD
FACING
SIDE
MD-LEG
M-PANEL
4 x
2 x
RELEASE
LATCH

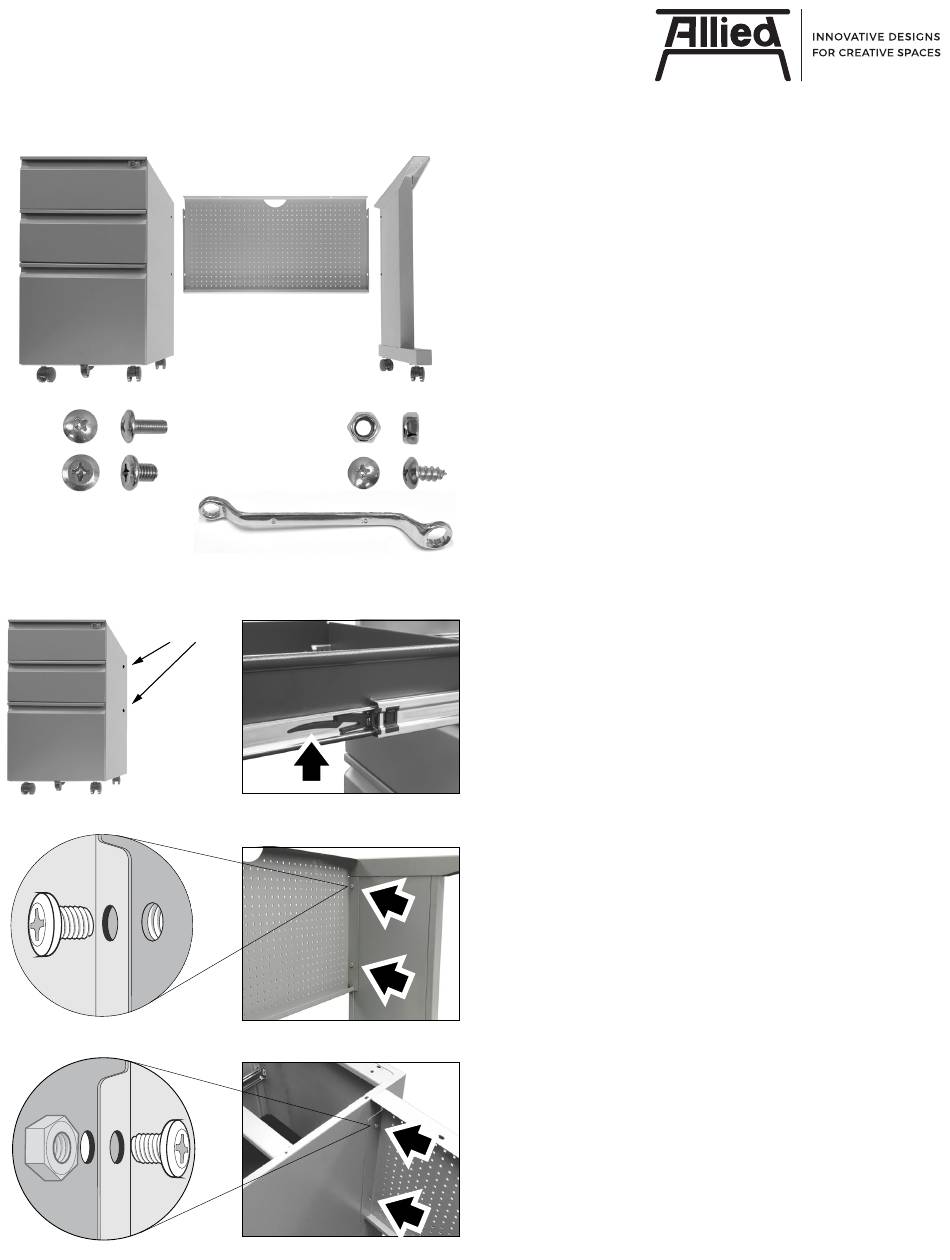

Your desk base arrives in multiple cartons, labeled as:
MDPED - One fully assembled drawer unit*
M-PANEL - One modesty panel (inc. screws)
MD-LEG - One leg assembly (inc. screws)
The Desk Top will also be its own carton. Please
flatten and retain this carton for final assembly.
*Dual Pedestal: Desk will have two MDPED
units and no MD-LEG.

Verify that you have all pieces including hardware:

10) 1/2" Pan-head philips head screws
4) M6 Truss-head screws
4) M6 Nyloc nuts
2) 3/8" Wood screws (not used)
1) 10mm Offset wrench
Step 1.
Determine if you want the drawers on the Left or
Right hand side. Remove the knock-out tabs on the
inward facing side.
*Dual Pedestal: remove knock-outs from both
MDPED units on inward facing sides.
Remove top two drawers from the pedestal
unit(s). Pull drawer out and lift the release latches.
Step 2.
Attach the Modesty Panel to the Leg unit using two
(2) M6 Truss Head screws.
*Dual Pedestal: Proceed to Step 3.
Step 3.
Attach this assembly to the MDPED Drawer Pedestal
using two (2) M6 screws and two (2) Nyloc nuts.
You will need to use the included wrench to hold
the Nyloc nuts inside the MDPED unit.
