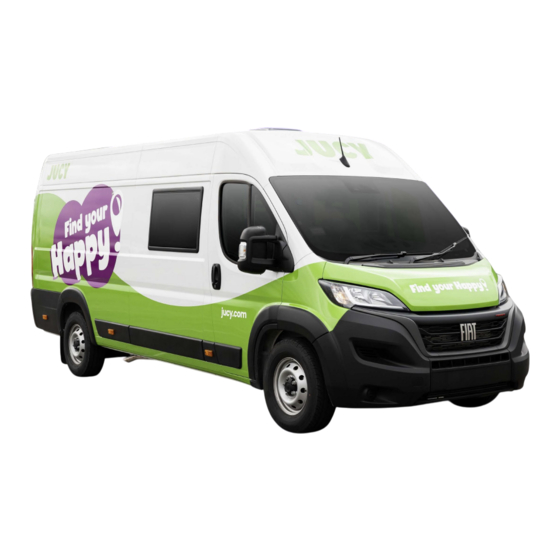

  • Page 1 Cruiser Australia Self-contained Vehicle manual. 2024005 Vehicle Manual Templates Round 1...
  • Page 2: Table Of Contents

    Try our online help hub. vehicle Cruiser MANUAL helphub.starrvcom helphub.jucy.com Contents ........Description of keys ........Vehicle equipment ........Starting the vehicle ......... Baby seat installation ........Windows and vents ......240-volt electrical system ......12-volt electrical system ........... Microwave ....
  • Page 3: Description Of Keys

    Try our online help hub. Description of keys helphub.jucy.com helphub.starrvcom IGNITION KEY: Use for: Start your vehicle. 2. Unlock/ lock diesel tank cap. WATER KEY: Use for: Unlock/ lock freshwater compartment. COMPARTMENT KEY: Use for: Unlock/ lock toilet cassette compartment. 2.
  • Page 4: Vehicle Equipment

    Try our online help hub. Vehicle equipment helphub.jucy.com helphub.starrvcom FIRE EXTINGUISHER Each vehicle is equipped with a dry chemical fire extinguisher, meticulously selected to address both type B fires (involving grease and liquids) and type C fires (involving electrical elements). To deploy the extinguisher effectively, grasp the ring situated atop the bottle, direct the nozzle towards the top of the flames, and press down the lever firmly.
  • Page 5: Starting The Vehicle

    Try our online help hub. Starting the vehicle helphub.starrvcom helphub.jucy.com Gear stick must be in PARK and your foot on the pedal in order for the vehicle to start. Gear stick in parking mode. The dashboard will display a ‘P’ indicating that the vehicle is in park. Start the vehicle using the ignition key.
  • Page 6: Baby Seat Installation

    Try our online help hub. Baby seat installation helphub.starrvcom helphub.jucy.com The two anchor points for baby seats are located on the front forward-facing seat at the dinette behind the driver’s cabin. The anchor points are on the bottom of the chair at the back.
  • Page 7: Windows And Vents

    Try our online help hub. Windows and vents helphub.starrvcom helphub.jucy.com Windows To open the windows on board your vehicle, turn the handles inwards. Push the window out and click the latch in place. The window has a mosquito net and a sun blackout blind.
  • Page 8: 240-Volt Electrical System

    Try our online help hub. 240-volt electrical system helphub.starrvcom helphub.jucy.com To run the microwave, power points, air conditioner and to recharge the house battery, connect the vehicles 15AMP electrical cord to a 240-volt external power source. The above items will only work when plugged into power.
  • Page 9: 12-Volt Electrical System

    Try our online help hub. 12-volt electrical system helphub.starrvcom helphub.jucy.com Your vehicle has two batteries. One in the engine compartment and one in the rear of the cabin. The battery inside the cabin is also called your domestic battery. The engine compartment battery is located under the passengers die cabin floor, in the main driver’s cabin.
  • Page 10: Microwave

    Try our online help hub. Microwave helphub.starrvcom helphub.jucy.com The microwave in your vehicle will only operate via 240-volt power. This means that you need to be plugged into an external power source. Troubleshooting the microwave: Problem: Microwave is inoperative and there is no display. Possible cause: 240-volt power is not plugged in to an outlet.
  • Page 11: Fresh Water Tank & Water Access

    Try our online help hub. Fresh water tank & water access helphub.starrvcom helphub.jucy.com On board the vehicle is a freshwater system consisting of a water pump and freshwater tank. The water tank has an 80L freshwater tank and is located on the passenger side of the vehicle. This water is for the sink, shower and toilet flush.
  • Page 12: Grey Water Tank

    Try our online help hub. Grey water tank helphub.starrvcom helphub.jucy.com The grey water holding tank collects wastewater from the kitchen, bathroom sink and shower. You can check the level of your water on the 12-volt switchboard as seen below. This is the 1 tank level on the control panel.
  • Page 13: Water Pump

    Try our online help hub. Water pump helphub.starrvcom helphub.jucy.com To use water on board the vehicle, ensure there is water in your freshwater tank outside. On the switchboard, press the PUMP symbol once. You will hear the pump quietly start up. The pump operates as part of the 12-volt system.
  • Page 14: Hot Water Heater

    Try our online help hub. Hot water heater helphub.starrvcom helphub.jucy.com The switch to activate the gas-operated water heater system is situated above the kitchen sink. To operate the water heater in your vehicle, please follow the below steps: Step 1: Turn the gas bottle, located in the rear doors under the bed, to the 'on' position, ensuring the valve is fully opened.
  • Page 15: Toilet Use

    Try our online help hub. Toilet use helphub.starrvcom helphub.jucy.com Turn on the water pump on the 12-volt control panel. 2. Push the blue button on the toilet to fill the base with water (Diagram A) Diagram A 3. Once finished, adjust the lever on the bottom of the toilet to empty into cassette (Diagram B) Diagram B 4.
  • Page 16: Toilet Cassette

    Try our online help hub. Toilet cassette helphub.starrvcom helphub.jucy.com It is highly recommended to regularly empty the toilet cassette, and it is mandatory to empty and clean it before returning the vehicle to the depot. To empty the cassette, lift the blue lever and remove the entire cassette from the vehicle.
  • Page 17: Shower

    Try our online help hub. Shower helphub.starrvcom helphub.jucy.com To operate the shower, please follow the below steps: Activate the gas-operated water heater system (as shown above). 2. Turn on the water pump by pressing the PUMP button on the control panel. 3.
  • Page 18: Gas Bottle

    Try our online help hub. Gas bottle helphub.starrvcom helphub.jucy.com The gas bottle is located at the back of the vehicle, under the bed. There is a cupboard marked by a L.P. Gas storage label. IMPORTANT: Never drive with the gas bottle turned to the ‘open’...
  • Page 19: Stove Top

    Try our online help hub. Stove top helphub.starrvcom helphub.jucy.com Warning: It is not safe to use cooking appliances for comfort heating. The gas burners in the vehicle operate via gas. The basic functionality resembles that of a gas stove commonly found in households. However, it's crucial to note that the vehicles confined space limits the amount of oxygen available.
  • Page 20: Tap & Sink

    Try our online help hub. Tap & sink helphub.starrvcom helphub.jucy.com The vehicle comes equipped with a water filtration system. The handle on the back of the tap dispenses filtered water, while the handle on the front provides water directly from the freshwater tank. manual VEHICLE Page 20 of 33...
  • Page 21: Heater & Air Conditioner

    Try our online help hub. Heater & air conditioner helphub.starrvcom helphub.jucy.com The vehicle is equipped with a reverse cycle air conditioner. This will generate both hot and cold air to suit your needs. The air conditioner only works when plugged into 240-volt power.
  • Page 22 Try our online help hub. Heater & air conditioner helphub.starrvcom helphub.jucy.com Using the air conditioner in humid and hot conditions: When utilizing the air conditioner in humid climates, it's essential to take extra precautions to ensure optimal performance and minimize potential issues.
  • Page 23: Fridge

    Try our online help hub. Fridge helphub.starrvcom helphub.jucy.com The fridge in your vehicle operates via the 12-volt & 240-volt system. To operate the fridge, follow the below steps: Press the load button on the control panel twice. You will see a small LOAD “on”...
  • Page 24: Lights

    Try our online help hub. Lights helphub.starrvcom helphub.jucy.com To operate the cabin lights, turn on the 12-volt control panel by pressing the load button twice. You will see a small LOAD “on” appear on the screen. There are 3 sets of light switches, one in the kitchen (Diagram 1), one in the bed area (Diagram 2) and one in the dining area (Diagram 3).
  • Page 25: Dining Table

    Try our online help hub. Dining table helphub.starrvcom helphub.jucy.com To remove or adjust the dining table, click the buttons on the edge of the table so they are sticking up (Diagram 1). To ensure the table is in place, push the buttons down (Diagram 2). Diagram 1 Diagram 2 manual...
  • Page 26: Swivel Chairs

    Try our online help hub. Swivel chairs helphub.starrvcom helphub.jucy.com The passenger and driver seats are designed to swivel around for your convenience, allowing you to easily transition to the dining table area. To swivel the chair around, pull the lever on the side of the chair (as seen to the left) towards you and spin the chair around.
  • Page 27: Power Points

    Try our online help hub. Power points helphub.starrvcom helphub.jucy.com The vehicle is equipped with 2 power points located in the kitchen and 1 power point located under the dining table. These will only work when the vehicle is plugged into 240-volt mains power. The vehicle is equipped with 2 USB charger ports as well as an auxiliary power outlet located under the dining table.
  • Page 28: Bed

    Try our online help hub. helphub.starrvcom helphub.jucy.com The vehicle is equipped with 2 double beds configured in bunk bed style. To access the top bed, securely clip the top of the ladder into the bed frame. manual VEHICLE Page 28 of 33 2024005 Vehicle Manual Templates Round 1...
  • Page 29: Entrance Step

    Try our online help hub. Entrance step helphub.starrvcom helphub.jucy.com The vehicle is equipped with a convenient entrance step located on the passenger side sliding door, enhancing ease of entry for passengers. The button to extend and retract the step is located on the side of the kitchen cupboard.
  • Page 30: Storage

    Try our online help hub. Storage helphub.starrvcom helphub.jucy.com The vehicle has a dedicated storage area under the bunk beds, as well as various drawers/ cupboards throughout the vehicle to store personal items. manual VEHICLE Page 30 of 33 2024005 Vehicle Manual Templates Round 1...
  • Page 31: Internal Blinds

    Try our online help hub. Internal blinds helphub.starrvcom helphub.jucy.com To secure the internal thermal blind to the front windscreen and two side windows of the vehicle, follow these steps using the suction cups: Retrieve the internal thermal blind from the storage compartment located above the front cabin of the vehicle.
  • Page 32: Diesel Fuel

    Try our online help hub. Diesel fuel helphub.starrvcom helphub.jucy.com The vehicle accepts diesel fuel only. DO NOT refill the vehicle with any other fuel or fluid. The diesel tank cap is marked with DIESEL on it and is unlocked using the vehicle diesel key. The fuel filling location is located next to the passenger door.
  • Page 33: Adblue

    Try our online help hub. AdBlue helphub.starrvcom helphub.jucy.com Every 2500 km the vehicle will require AdBlue to be refilled. If the AdBlue level is low, a warning light or symbol illuminates on the dashboard and a message advises you to top up the AdBlue tank. Please find the nearest fuel station or auto shop which supplies AdBlue and refill the vehicle with AdBlue as soon as possible.
