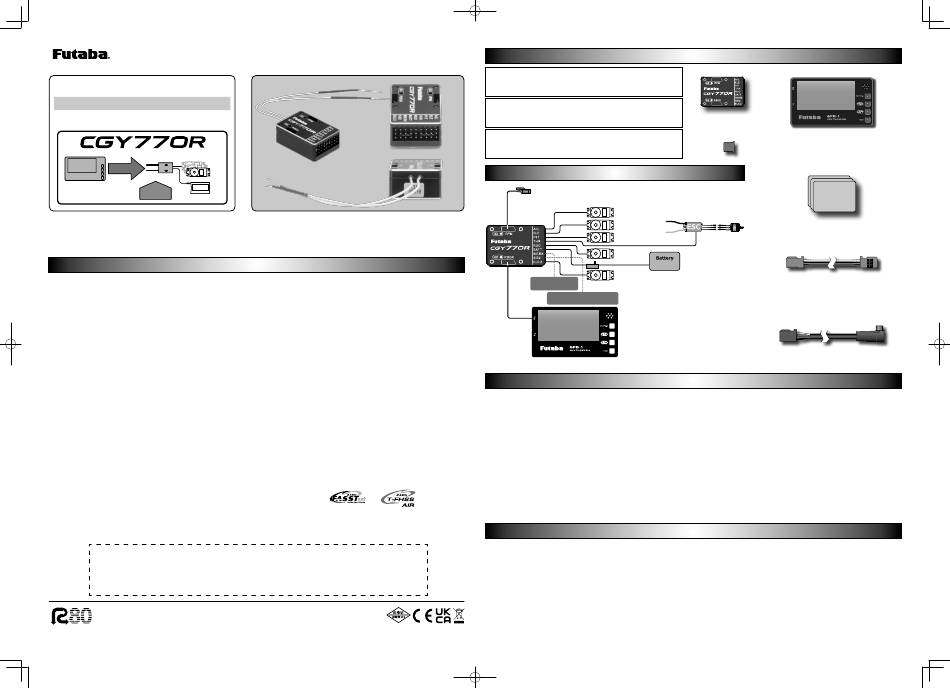

FUTABA CGY770R Quick Start Manual

1M23N40002
3-axis AVCS Gyro
Gyro/Receiver/Governor function integrated
Compatible with flybarless helicopters
Receiver・Gyro・Governor
Setting
CGY770R
GPB-1
Receiving
Battery
Futaba CGY770R is gyro, 3-axis Stabilization System combining AVCS gyro and head speed governor and receiver in one box designed
for flybarless helicopters. Its cutting edge MEMS (Micro Electro Mechanical System) sensor design, ultra high-speed processing speed,
and advanced PID control algorithm put it a league of it's own ahead of all ahead of all other heading hold gyros in size, weight and per-
formance.
• 3-Axis Gyro and Governor and Receiver in one box.
• High speed operation and extremely low latencies result in greater stability.
• Low profile, small size, and light weight.
• Easy set-up and tuning the gyro and governor program using the GPB-1.
• Settings divided into Basic and Expert menus. The basic setting is for initial set-
ting and Expert setting is for more advanced settings.
• Firmware can be updated from a Windows based personal computer when used with
the optional CIU-2 or CIU-3 interface.
• S.BUS 2 compatible.
• UR (ultra response) System compatible. When combined with the UR servo(for
helicopter), ultra-high-speed response is achieved.
*Car UR servos cannot be used.
• Gyro section
• Advanced and adaptive PID control loop is utilized.
• Simultaneous control of 3-axes (roll, pitch, yaw).
• Compatible with 1520 μs Analog, 1520 μs Digital, 760 μs Digital and UR
mode servos.
• Rudder (yaw) section:
• Capable of sensing angular velocity up to +/- 1,000 deg/sec.
• Feed Forward Option allows the CGY770R to consider other control functions
during operation. This results in more accurate corrections and precise opera-
tion.
• Cutting edge control algorithm provides a consistent pirouette rate, precise op-
eration, and smooth yaw control in any flight condition.
• Aileron, Elevator (roll, pitch) section:
• Developed specifically for flybarless helicopters.
• Supports H3-120, H3-140, H3-90, H4-00, and H4-45 swash plate types.
• Governor section
• Advanced and adaptive PID control loop is utilized.
• High speed operation and extremely low latencies provide a more consistent
and accurate operation.
For details on how to use it, refer to the CGY770R manual on the Futaba website:
https://futabausa.com
https://www.rc.futaba.co.jp
FUTABA CORPORATION
1080 Yabutsuka, Chosei-mura, Chosei-gun, Chiba-ken, 299-4395, Japan
TEL: +81-475-32-6051, FAX: +81-475-32-2915
Percentage of Waste
Paper pulp 80%
FEATURES FEATURES
• Capable of governing head speeds from 700 rpm through 4,000 rpm
• Compatible with 1520 μs Analog and 1520 μs Digital throttle servo types.
• Feed Forward Option allows the CGY770R to consider other control functions
during operation. This results in precise governing of the head speed.
• Governor or Revolution Limiter mode selectable.
• Supports gear ratios from 1.00 through 50.00.
• Cutting edge control algorithm provides more consistent RPM governing.
• Revolution sensor is compatible with the GV-1. The CGY770R also supports
an optional back plate revolution sensor and brushless phase sensor.
• Receiver section
• Switch FASSTest - 2.4 GHz (18/12CH mode) system and T-FHSS - 2.4 GHz
system using the Gyro Program Box GPB-1 system.
• By S.BUS 2 system compatibility, it is possible to transmit the battery volt-
age information of the receiver and the optional sensor information con-
nected to the S.BUS 2 port of the receiver.
• Diversity antenna system.
• DUAL RX system.
• Other functions
• Maximum rpm memory.
• Cumulative engine operation timer.
• Integration function of engine operation time.
• Applicable systems
• Transmitter : Futaba FASSTest-2.4 GHz (18/12CH mode), T-FHSS Air-2.4 GHz
*Wireless tuning function is only supported by FASSTest.
*There are restrictions on wireless tuning depending on the item.
©FUTABA CORPORATION
● CGY770R/GPB-1 Set
・CGY770R ・GPB-1 ・CGY connection cable ・Transmitter connection cable
・Mounting Pads × 3 ・Dust Covers × 5 ・Manual
● CGY770R
・CGY770R ・Mounting Pads × 3
・Dust Covers × 5 ・Manual ・Decal
● GPB-1
・GPB-1 ・CGY connection cable ・Transmitter connection cable
・Manual ・Decal ・Velcro
CONNECTION CONNECTION
RPM sensor
Aileron servo
Elevator servo
Collective Pitch servo
Rudder servo
2nd Elevator servo（H4-xx）
（CH setting is possible for cases other than H4-xx）
Battery (3.5~8.4V) or
2nd Rx2 at Dual Rx
External Rx when built-in Rx is INH
or S.BUS2 sensors
GPB－1（CGY770R compatible version）

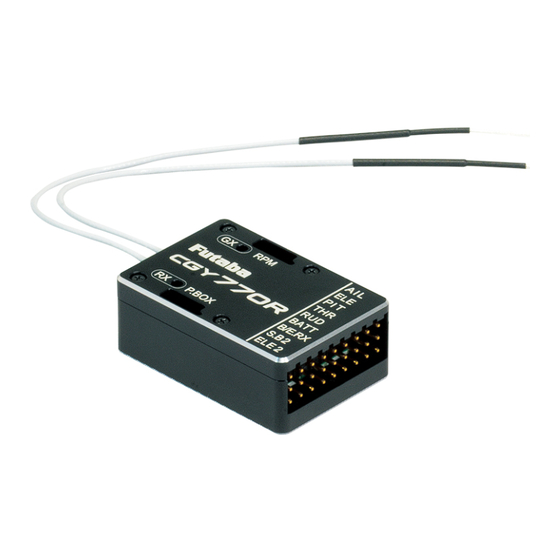

CGY770R
Control System: Digital advanced control
Angular Velocity Range: ±1,000 Degrees Per Second (Gyro)
Sensor: Micro Electromechanical Systems (MEMS) Gyro
Hall effect sensor
Governor Resolution: 0.1 Hz (6 rpm) (Engine RPM)
RPM Accuracy: 1%
Head Speed Range: 700-4,000 rpm
Selectable Servo Frame: 70 Hz, 280 Hz and 560 Hz (Rudder Gyro only) Rate
Center Pulse Width: 1520 μs (70 Hz & 280 Hz) 760 μs (560 Hz)
Receiving system: FASSTest-2.4 GHz (18 CH/12 CH mode ) / T-FHSS-2.4 GHz
S.BUS2 / S.BUS Port and 6 Channels for Conventional System
Frequency band: 2.4 GHz band
RF power output: 25 mW EIRP
Anntena: Dual antenna diversity
Rated voltage: 3.7 V to 7.4 V DC* (Operating Voltage:3.5 V to 8.4 V)
Current Drain: 85 mA (When receiving, no servo, no RPM sensor)
Operating Temperature: 14°F to 113°F (-10°C to +45°C)
Size (CGY770R) : 1.063 in. [27.0 mm](W) / 1.543 in. [39.2 mm](L) / 0.591 in. [15 mm](H)
Weight (CGY770R) : 0.787 oz [22.3 g]
WARRANTY & REPAIR SERVICE (IN U.S.A.) WARRANTY & REPAIR SERVICE (IN U.S.A.)
If any difficulties are encountered while setting up or operating your gyro, please
consult the instruction manual first. For further assistance you may also refer to
your hobby dealer or contact the Futaba Service Center at the e-mail address, fax or
telephone number listed below:
Phone:1-256-461-9399, FAX:1-256-461-1059
E-Mail: service@futabaUSA.com
2024, 6 (1)
CONTENTS CONTENTS
● CGY770R ● GPB-1 Gyro Program Box
・Decal ・Velcro
● Dust Cover
When setting up the gyro and the gover-
nor, connect it to the CGY770R and use
it. Do not install it on the helicopter.
● Mounting Pads
● CGY connection cable: 350 mm
ESC or
It is used to connect the CGY770R and the Gyro Pro-
Throttle servo
gram Box GPB-1.
3.5~8.4V （or AUX.CH servo）
● Transmitter connection cable
It is used to connect the transmitter to the Gyro Pro-
gram Box GPB-1 and use the transmitter to transfer the
settings of GPB-1 to the CGY770R wirelessly.
SPECIFICATIONS SPECIFICATIONS
Rated voltage: 3.7 V to 7.4 V DC* (Operating Voltage:3.5 V to 8.4 V)
Current Drain: 62 mA
Operating Temperature: 14°F to 113°F (-10°C to +45°C)
Display: 128 x 64 dot graphics
Size: 2.126 in. [54 mm](W)/3.543 in. [90 mm](L)/0.6102 in. [15.5 mm](H)
Weight(RPM sensor): 1.88 oz [53.3 g]
* The operating voltage shown only applies to the CGY770R and
GPB-1. Always verify that your receiver, servos, tail rotor servo,
switch and any other electronic components used in your installa-
tion are capable of operating at the voltage you plan to use.
If you are unable to resolve the issue, pack the system in its original container with
a note enclosed and a thorough, accurate description of the difficulty. Include the
following in your note:
• Symptoms (including when the problem occurred)
• System (Transmitter, Receiver, Servos and model numbers)
• Model (Model name)
• Your Name, Address and Telephone number
Send the respective items to the authorized Futaba Service Center Address below:
Futaba Corporation of America
2681 Wall Triana Hwy
Huntsville, AL 35824, U.S.A.
GPB-1
