Installation Instructions
Model:
Description:
Part Number:
Assembly Time:
It is always a best practice to disconnect your negative battery terminal prior to any electronics
installations to avoid damaging the vehicles electrical system. Before you begin, read through
these instructions and check that all parts are present.
This installation may require specials skills and tools to complete, it may be necessary to seek
a trained installation technician to complete this installation. Please note that MB Quart cannot
assume any responsibility for damage resulting from incorrect installation.
No.
1

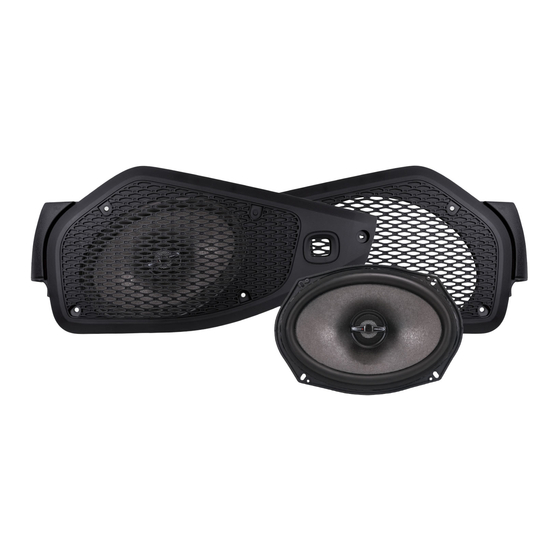

6x9 Coaxial Speakers
2
Speaker Grills
3
Harness Adapter
4
6x9 Cutting Template
1
5mm Allen Bit
2
T15 & T20 Torx Bit
3
Rotary Cutting Tool (i.e. Dremel)
4
Marker
2024+ Jeep JL (Wrangler) & JT (Gladiator)
Rear Speaker Kit
JC2-169SB
120 Minutes (2 Hours)
Parts List
Component Name
Tools Required
Page 1 of 5
Parts List
Qty
2
2
2
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MB QUART JC2-169SB
Summary of Contents for MB QUART JC2-169SB
- Page 1 This installation may require specials skills and tools to complete, it may be necessary to seek a trained installation technician to complete this installation. Please note that MB Quart cannot assume any responsibility for damage resulting from incorrect installation.
- Page 2 Rear Speaker Installation ● Remove (4) 5mm Allen bolts to remove the OEM Grill. Disconnect the map light harness. ● Remove and disconnect (5) T30 Torx screws from the port and (5) T20 Torx screws from both speakers. ● Place included cutting template over speaker holes, Mark the outer edge of the 6x9 shape.
- Page 3 Rear Speaker Installation ● Remove 6x9 cutting template to show cut lines. Using a rotary cutting tool, cut along the marker lines leaving a hole similar to the picture on the right. NOTE BE VERY CAREFUL not to cut the OEM wiring as this will be re-used for the 6x9 speaker and map lights.
- Page 4 Rear Speaker Installation ● Plug in the map light and connect the speaker wires. Set grill back onto the soundbar and install the (5) 5mm OEM screws Page 4 of 5...
-
