Assembly Instructions
Model:
Description:
Part Number:
Assembly Time:
Before you beign, read thought these instructions and check that
all parts are present. Please note that MB Quart cannot assume any
responsibility for damage resulting from incorrect installation.
No.
1
6x9 Coaxial Speakers
2
Speaker Bracket
3
Harness Adapter
1
M4 Allen Bit
2
T20 & T30 Torx Bit
3
Rotary Cutting Tool (i.e. Dremel)
4
Painters Tape
5
Marker
Jeep JL (Wrangler) & JT (Gladiator)
Rear Speaker Kit
JC1-169SB
120 Minutes (2 Hours)

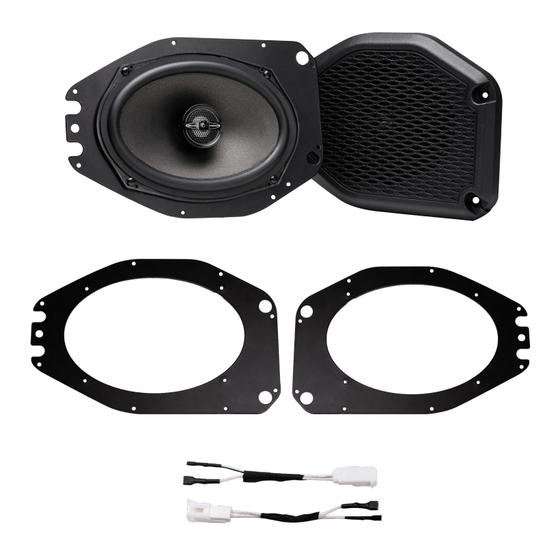

Parts List
Component Name
Tools Required
Page 1 of 6
Parts List
Qty
2
2
2
Advertisement
Related Manuals for MB QUART JC1-169SB
Summary of Contents for MB QUART JC1-169SB
- Page 1 Part Number: 120 Minutes (2 Hours) Assembly Time: Before you beign, read thought these instructions and check that all parts are present. Please note that MB Quart cannot assume any responsibility for damage resulting from incorrect installation. Parts List Parts List...
- Page 2 Parts Photo Page 2 of 6...
- Page 3 Rear Speaker Installation ● Remove four 5mm Allen bolts to remove the OEM Grill ● Remove and disconnect (4) T30 Torx screws from the port and (5) T20 Torx screws from both speakers ● Apply painter tape to the soundbar, then hold the 6x9 speaker mounting plate up and mark the speaker opening Page 3 of 6...
- Page 4 Rear Speaker Installation ● Remove 6x9 mounting plate to show roughly the cutting and using a rotary cutting tool, cut a hole similar to the picture on the right BE VERY CAREFUL not to cut the OEM wiring as this will be used with the 6x9 speaker ●...
- Page 5 Rear Speaker Installation ● Connect the harness adapter to the OEM plug and connect to the 6x9, then mount the 6x9 to the mounting plate using (4) M4 Screws and washers ● Mount the new soundbar grill for the 6x9 with the OEM 5mm bolts Page 5 of 6...
- Page 6 This equipment complied with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. JC1-169SB REV 02 Page 6 of 6...
