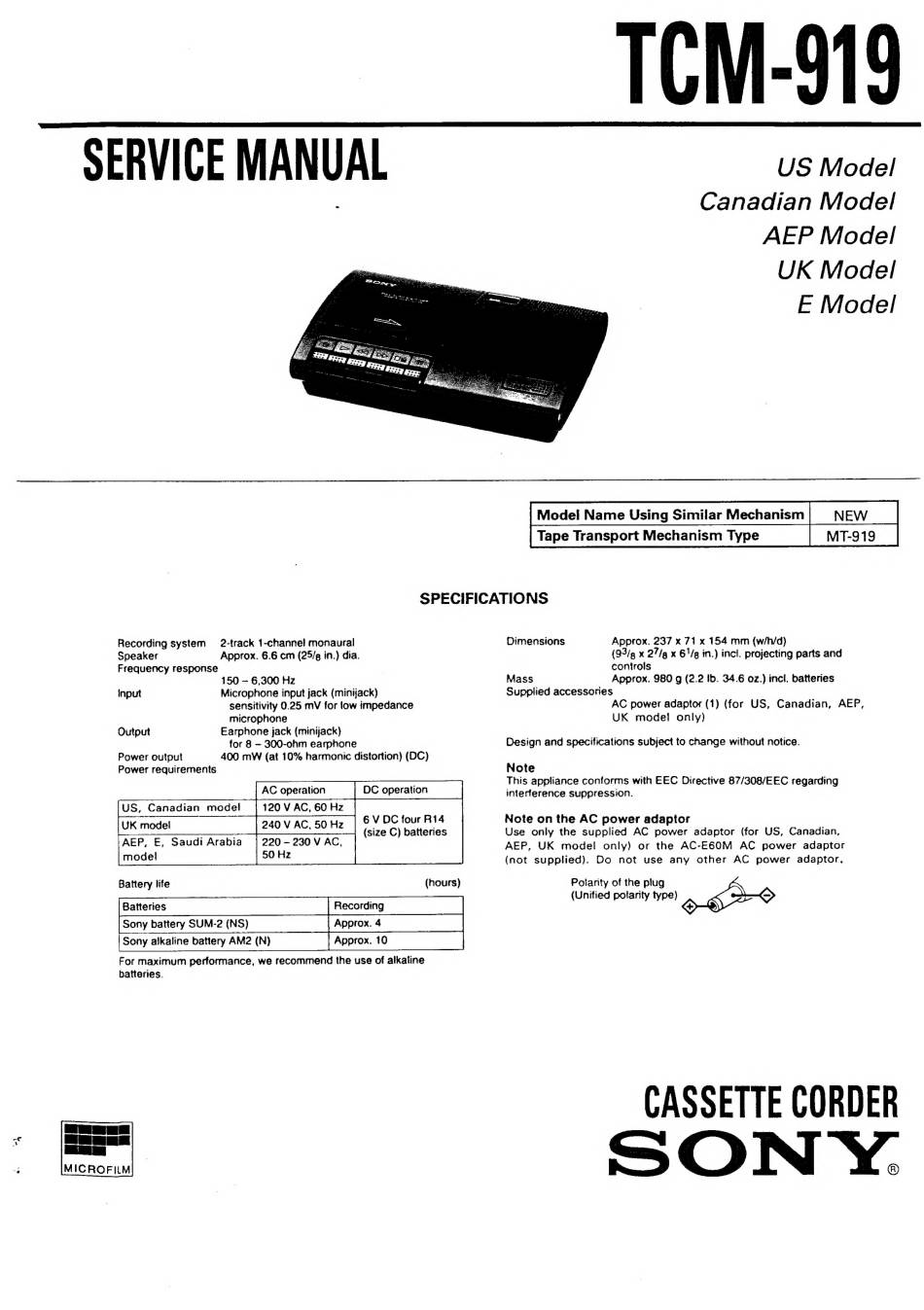

SERVICE MANUAL
TCM-919
US Model
Canadian Model
AEP Model
UK Model
E Model
Model Name Using Similar Mechanism
Tape Transport Mechanism Type
MT-919
SPECIFICATIONS
Recording system
2-track 1-channel monaural
Dimensions
Approx. 237 x 71 x 154 mm (w/h/d)
Speaker
Approx. 6.6 cm (25/g in.) dia.
(93/g x 27/g x 61/g in.) incl. projecting parts and
Frequency response
controls
150 — 6,300 Hz
Mass
Approx. 980 g (2.2 Ib. 34.6 oz.) incl. batteries
input
Microphone input jack (minijack)
Supplied accessories
sensitivity 0.25 mV for low impedance
AC power adaptor (1) (for US, Canadian,
AEP,
microphone
UK model
only)
Output
Earphone jack (minijack)
for 8 — 300-ohm earphone
400 mW (at 10% harmonic distortion) (DC)
US,
Canadian
model
120 V AC, 60 Hz
UK mode!
240 V AC, 50 Hz
AEP,
E, Saudi Arabia
220 — 230 V AC,
model
50 Hz
Battery life
(hours)
Sony battery SUM? (NS)
Sony alkaline battery AM2 (N)
Approx. 10
For maximum performance, we recommend the use of alkaline
batteries.
Power output
Power requirements
6 V DC four R14
(size C) batteries
Batteries
Design and specifications subject to change without notice.
Note
This appliance conforms with EEC Directive 87/308/EEC regarding
interference suppression.
Note on the AC power adaptor
Use
only the supplied
AC
power
adaptor
(for US, Canadian,
AEP,
UK model
only) or the AC-E60M
AC power
adaptor
(not supplied).
Do
not use any
other AC power
adaptor.
Potarity of the plug
(Unified polanty type)
CASSETTE CORDER
ON Y.
