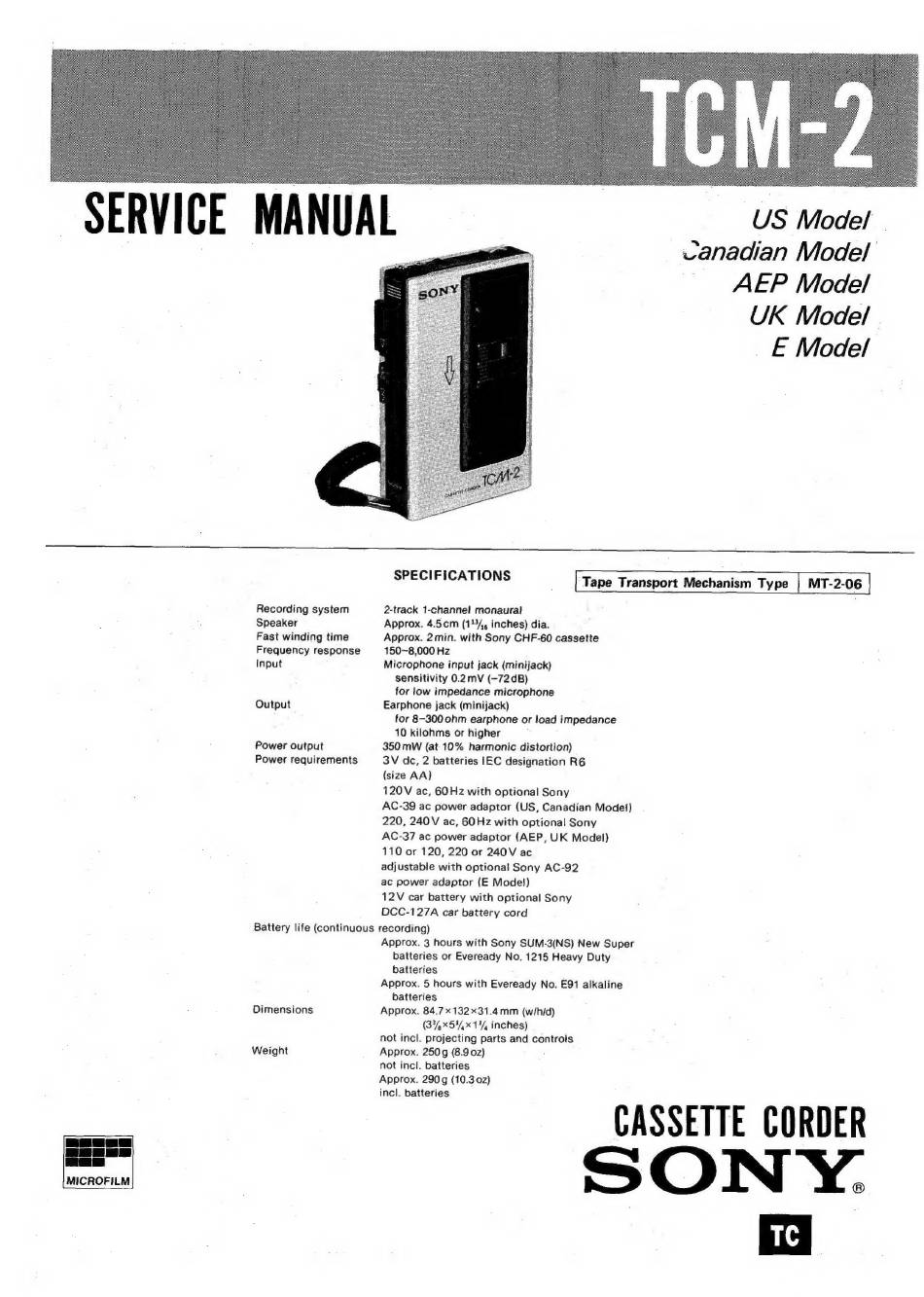

Sony TCM-2 Service Manual

US Model
SERVICE MANUAL
Recording system
Speaker
Fast winding time
Frequency response
Input
Output
Power output
Power requirements
SPECIFICATIONS
2-track 1-channel monaural
Approx. 4.5cm (113/, inches) dia.
Approx. 2min. with Sony CHF-60 cassette
150~8,000 Hz
Microphone input jack (minijack)
sensitivity 0.2 mV (-72dB)
for tow impedance microphone
Earphone jack (minijack)
for 8-300 ohm earphone or load impedance
10 kilohms or higher
350 mW (at 10% harmonic distortion)
3V dc, 2 batteries IEC designation R6
(size AA)
120V ac, 60Hz with optional Sony
AC-39 ac power adaptor (US, Canadian Model)
220, 240V ac, 60Hz with optional Sony
AC-37 ac power adaptor (AEP, UK Model)
110 or 120, 220 or 240V ac
adjustable with optional Sony AC-92
ac power adaptor (E Mode!)
12V car battery with optional Sony
DCC-127A car battery cord
Battery life (continuous recording)
Dimensions
Weight
MICROFILM
Approx. 3 hours with Sony SUM-3(NS) New Super
batteries or Eveready No. 1215 Heavy Duty
batteries
Approx. 5 hours with Eveready No. E91 alkaline
batteries
Approx. 84.7132 x31.4 mm (w/hid)
(334x54/,x 1¥/, inches)
not incl. projecting parts and controis
Approx. 250g (8.90z)
not incl. batteries
Approx. 290g (10.302)
incl. batteries
CASSETTE
canadian Model
AEP Model
UK Mode/
E Model
Tape Transport Mechanism Type | MT-2-06
CORDER
SONY.
