TRENDnet TE100-PCIFC Specifications

FEATURES
• 1 x 100Base-FX SC-type Multi-Mode fiber port
• PCI 2.2 specification compliant
• Incorporates Advanced Configuration Power Management Interface (ACPI 1.0)
• Supports PC99, PC2001 and Net PC hardware system designer guide.
• Separates 2Kbyte FIFO for receiver and transmitter controllers
• Supports 802.3x Full-Duplex flow control and multiple pause frame
• Supports IEEE 802.1Q VLAN tagging
• Intuitive diagnostic utility for windows 98SE/ME/2000/2003 Server *
• 3-Year Limited Warranty
* Vista is currently
Model Name
TE100-PCIFC
100Base Multi-Mode SC Fiber-to-PCI Adapter
TE100-PCIFC (V1.0R)

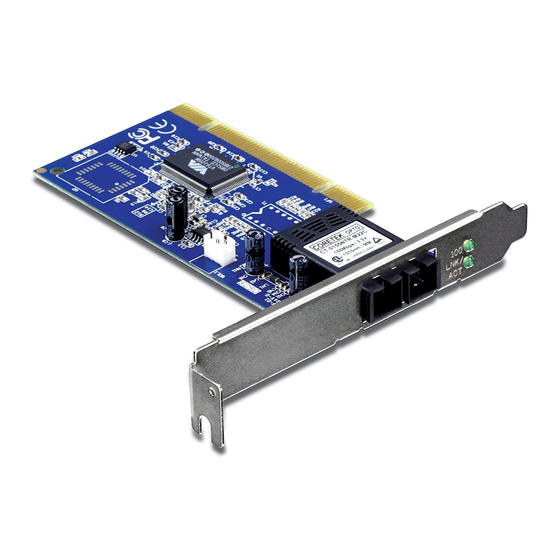

The 100Base Multi-Mode SC Fiber-to-PCI Adapter (model TE100-PCIFC)
provides a reliable high performance connection from a PC or server to a
Multi-Mode SC-type fiber connector for distances of up to 2 kilometers (1.2
miles). Full-duplex mode supports data transfer speeds of up to 200Mbps.
Supports IEEE 802.3x Flow Control and 802.1Q VLAN. Optimize power
consumption with advanced Configuration Power Management Interface
(ACPI 1.0) technology.
not supported
Wave length Media Optical Output Power (dBm) Optical Input Power (dBm) Power Budget
1310nm MMF
Min Max Sensitivity
-19 -14
fiber
Max
-32 -14 13dBm
TE100-PCIFC
rev: 06.30.2010
