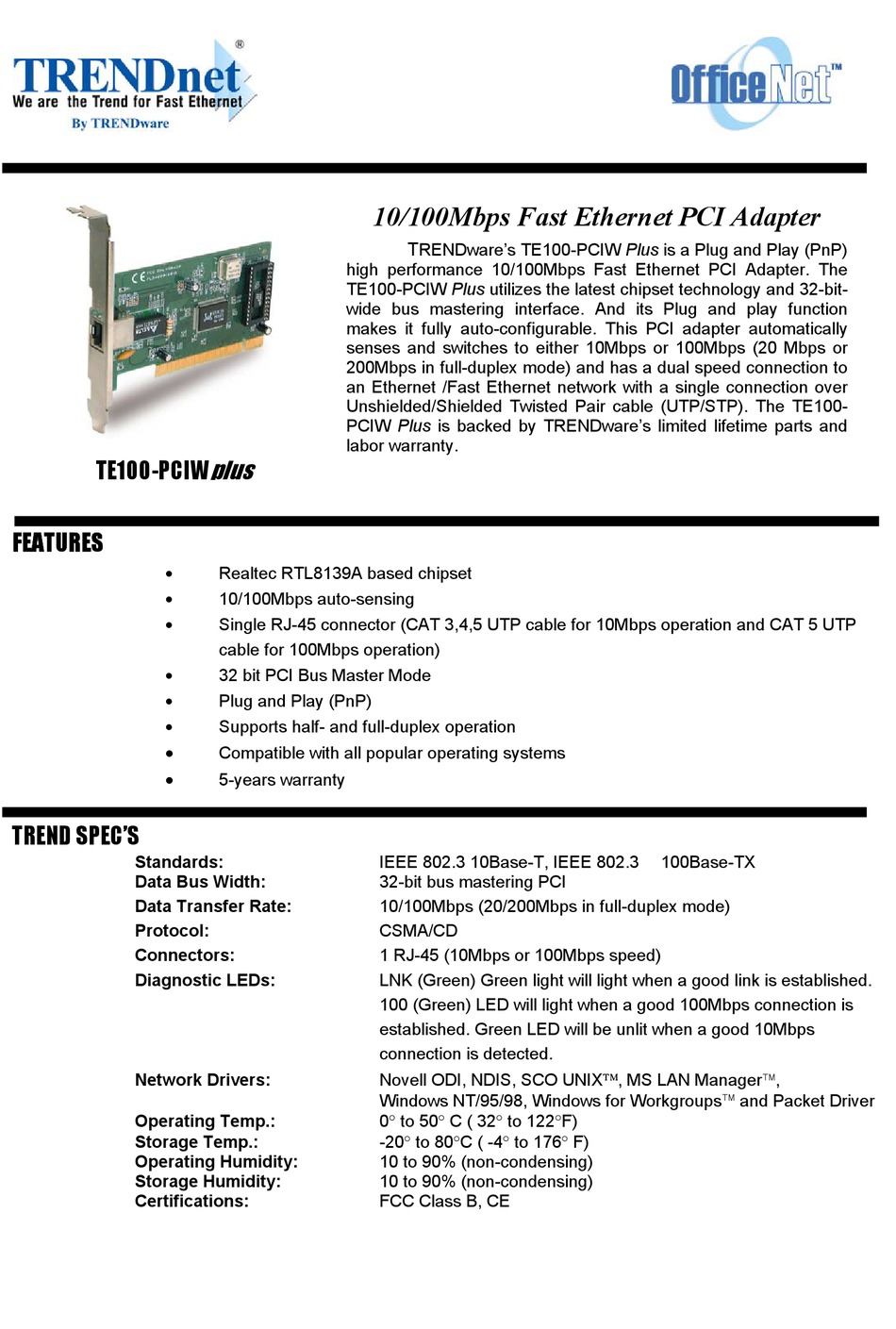

TE100-PCIW
FEATURES
•
•
•
•
•
•
•
•
TREND SPEC'S
Standards:
Data Bus Width:
Data Transfer Rate:
Protocol:
Connectors:
Diagnostic LEDs:
Network Drivers:
Operating Temp.:
Storage Temp.:
Operating Humidity:
Storage Humidity:
Certifications:
10/100Mbps Fast Ethernet PCI Adapter
high performance 10/100Mbps Fast Ethernet PCI Adapter. The
TE100-PCIW Plus utilizes the latest chipset technology and 32-bit-
wide bus mastering interface. And its Plug and play function
makes it fully auto-configurable. This PCI adapter automatically
senses and switches to either 10Mbps or 100Mbps (20 Mbps or
200Mbps in full-duplex mode) and has a dual speed connection to
an Ethernet /Fast Ethernet network with a single connection over
Unshielded/Shielded Twisted Pair cable (UTP/STP). The TE100-
PCIW Plus is backed by TRENDware's limited lifetime parts and
labor warranty.
plus
Realtec RTL8139A based chipset
10/100Mbps auto-sensing
Single RJ-45 connector (CAT 3,4,5 UTP cable for 10Mbps operation and CAT 5 UTP
cable for 100Mbps operation)
32 bit PCI Bus Master Mode
Plug and Play (PnP)
Supports half- and full-duplex operation
Compatible with all popular operating systems
5-years warranty
32-bit bus mastering PCI
Windows NT/95/98, Windows for Workgroups and Packet Driver
-20° to 80°C ( -4° to 176° F)
10 to 90% (non-condensing)
T
RENDware's TE100-PCIW Plus is a Plug and Play (PnP)
IEEE 802.3 10Base-T, IEEE 802.3
10/100Mbps (20/200Mbps in full-duplex mode)
CSMA/CD
1 RJ-45 (10Mbps or 100Mbps speed)
LNK (Green) Green light will light when a good link is established.
100 (Green) LED will light when a good 100Mbps connection is
established. Green LED will be unlit when a good 10Mbps
connection is detected.
Novell ODI, NDIS, SCO UNIX, MS LAN Manager,
0° to 50° C ( 32° to 122°F)
10 to 90% (non-condensing)
FCC Class B, CE
100Base
-TX
