Morbark M20R Operators Safety Manual

Forestry chipper
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

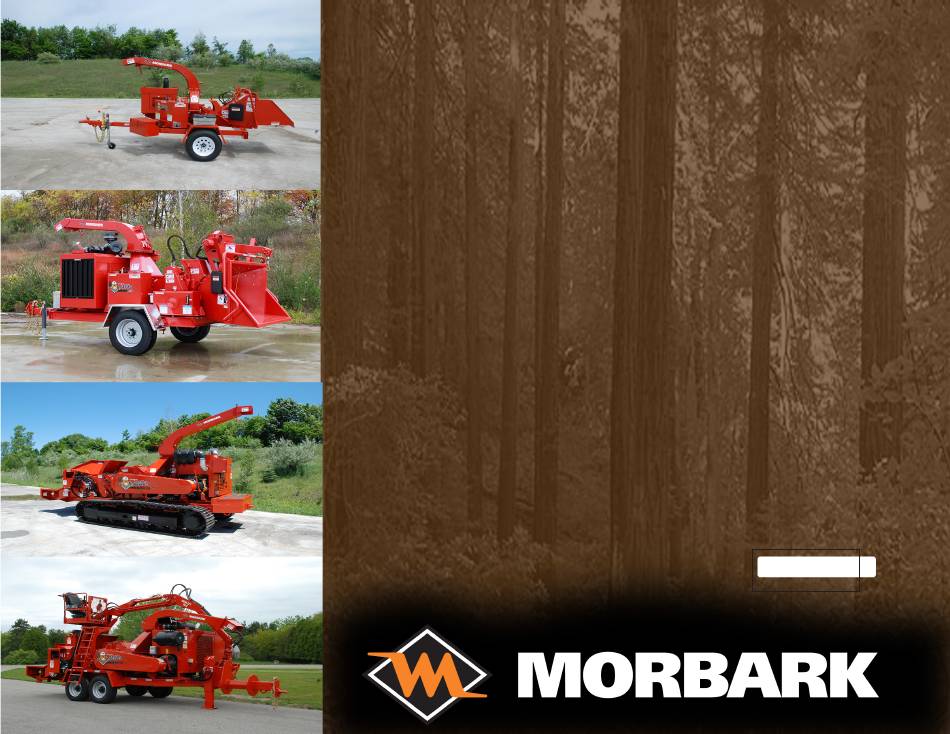

MODEL
M20R FORESTRY
CHIPPER
OPERATOR
SAFETY
MANUAL
76347-284
03/15
03/15
1
•

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M20R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Morbark M20R

Summary of Contents for Morbark M20R

  • Page 1 MODEL M20R FORESTRY CHIPPER OPERATOR SAFETY MANUAL 76347-284 03/15 03/15 •...
  • Page 2 2006/42/EC 15.12.2009 002.001 Following the provisions or Machinery Directive(s). The Technical Construction File is maintained at: Morbark, LLC, 8507 S. Winn Rd., Winn, MI 48896. The authorized representative located within the Community is: P.Hoekstra Bonifatiusstrjitte 23 9113PT Walterswald...

  • Page 3: Introduction

    We are proud to offer this machine and appreciate your confidence in our product. If for any reason you need to correspond with us, or any of the Morbark dealers, please have the serial number handy. It is located on the front right side of the machine on the tongue.
  • Page 4 SAFETY MANUAL REVISION LOG Revision: Date Issued: Pages Affected: Description of Changes: June 14, 2018 Initial Release WARNING! The engine exhaust from this product contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. CALIFORNIA Proposition 65 Warning Diesel engine exhaust and...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS BABBITTING STANDARD COUNTER KNIFE .....80 MILL BEARING GREASING INSTRUCTIONS ....81 INTRODUCTION ��������������������������������������������������������������������3 INSPECTING ANVIL CLEARANCE ........82 TABLE OF CONTENTS ���������������������������������������������������������5 ANVIL ROD PULLER INSTRUCTIONS........83 LOCKOUT PROCEDURES ����������������������������������������������������6 TIGHTENING THE INFEED BED CHAIN DRIVE ....84 SPECIFICATIONS ������������������������������������������������������������������7 TIGHTENING THE INFEED BED CHAIN ......84 MAIN COMPONENTS ������������������������������������������������������������8...

  • Page 6: Lockout Procedures

    Morbark equipment is designed to be quickly and easily locked that the energy isolation has been effective. out whenever maintenance or repairs are performed. Train your crew to lock out every time! 6�...

  • Page 7: Specifications

    SPECIFICATIONS General Length..............................20 Ft 9 1/4 In (6,3 mtr) Width ................................8 Ft 2 In (2,5 mtr) Height ...............................10 Ft 1 3/4 In (3 mtr) Gross Weight ............................26,907 Lb (12 205 kg) Electrical system ................................12 Volts Power Options John Deere and Caterpillar ....................

  • Page 8: Main Components

    MAIN COMPONENTS Engine Spout Deflect Hood Battery Cover Hyd Oil Tank Infeed Bed Feed Wheel Engine Panel Belt Shield Tracks Feed Stop...

  • Page 9: Safety

    If these instructions are not followed, it could result in damage to the machine. DO NOT MODIFY MACHINE Any modification to the machine must be approved by Morbark. Unauthorized modifications to the machine may impair the function and/or safety and affect machine life or cause serious injury or death.

  • Page 10: Operate Safely

    SAFETY OPERATE SAFELY CAUTION: Do not allow familiarity (gained from frequent use of your machine) to become commonplace� Always remember that a careless fraction of a second is sufficient to inflict severe injury� Be sure everyone is clear of the machine. Sound horn 2 or 3 times to alert all personnel and anyone else close by that you are ready to start up the power unit.
  • Page 11 SAFETY AVOID CONTACT WITH MOVING PARTS There are hazards associated with V-belts, and chains. Objects or body parts can become crushed between V-belts ,pulleys, chains, and sprockets. Stay away from these areas when the machine is running and follow Lockout/Tag out procedures before adjusting or performing any maintenance on any of these systems.

  • Page 12: Avoid High Pressure Fluids

    SAFETY AVOID HIGH PRESSURE FLUIDS High pressure oil easily punctures skin causing serious injury, gangrene or death. • If injured, seek emergency medical help • Do not use finger or skin to check for leaks • Lower load or relieve hydraulic pressure before loosening fittings BATTERY SAFETY Batteries generate explosive gases.

  • Page 13: Safety Signs

    SAFETY SIGNS 03/15 •...

  • Page 14: Crime Prevention

    CRIME PREVENTION GOOD ADVICE • Keep your machine damage-free • Reduce vandalism, discourage theft and help recover your machine if it is stolen RECORD IDENTIFICATION NUMBERS • Record Serial Number (S/N) of machine and identification numbers of engine, clutch, hydraulic components etc. EXACTLY as they appear on the plates •...
  • Page 15 CRIME PREVENTION PARK INDOORS OUT OF SIGHT WHEN POSSIBLE 1� Remove ignition key and lock the main power switch box. Place hard-to-move equipment in front of exits. 2� If machine is being stored, remove the battery or any essential component in the electrical system. 3�...

  • Page 16: Fire Protection

    CRIME PREVENTION REPORT THEFT 1� If a theft occurs, notify the law enforcement agency having jurisdiction and the insurance carrier immediately. 2� Give a full description and a complete set of serial and identification numbers (found on the front of the tongue) to the investigating officer and insurance carrier.
  • Page 17 Morbark parts and service, the solution to your problems. Buying your parts elsewhere just does not pay. To keep your equipment performing at its peak use GENUINE MORBARK PARTS 800-255-8839 800-832-5618 fax www.morbark.com 03/15 •...

  • Page 18: Engine Controls

    ENGINE CONTROLS MICS DIAGNOSTICS...
  • Page 19 ENGINE CONTROLS 1� MD3 DISPLAY PANEL - Displays all machine information and functions. 2� IQAN DIAGNOSTICS PORT - USB connection for the MORBARK INTEGRATED CONTROL SYSTEM. 3� DATA LINK HOOKUP - Provides access for the CAT tech computer. 4� DATA LINK HOOKUP - Provides access for the John Deere or Cummins tech computer.

  • Page 20: Autofeed Controls

    AUTOFEED CONTROLS...
  • Page 21 AUTOFEED CONTROLS 1� UP ARROW - This button is used to navigate through the following • Display pages • Menus • Lists (i.e. selecting or other adjustable parameters) 2� OK BUTTON - This button is used as follows • To navigate to the "Main Page" from any "Display Page" •...
  • Page 22 Morbark parts and service, the solution to your problems. Buying your parts elsewhere just does not pay. To keep your equipment performing at its peak use GENUINE MORBARK PARTS 800-255-8839 800-832-5618 fax www.morbark.com...

  • Page 23: Remote Controls

    REMOTE CONTROLS RADIO CONTROL The remote control transmitter and receiver provided with this machine have matched radio signals that prevents unintentional operation by stray signals. However stray radio signals, high voltage power lines, and other forms of interference can cause the remote control system to stop working or work erratically. To prevent injury to personnel or machine damage, do not use the remote control system when interference is present.
  • Page 24 REMOTE CONTROLS...
  • Page 25 REMOTE CONTROLS 1� LEFT TRACK FORWARD/REVERSE - Push toggle switch up to move the left track forward. Push toggle switch down to move the left track in reverse. 2� THROTTLE INCREASE/DECREASE - Push toggle switch up to increase the engine throttle. Push toggle switch down to decrease engine throttle.

  • Page 26: Center Section Controls

    CENTER SECTION CONTROLS FEEDWORKS STOP - To stop the feedworks, press the red button in. To reset the stop button, twist the button to the right and release. The button will snap back into operating position.

  • Page 27: Safety Operation

    SAFETY OPERATION For a safe and productive operation, read the safety section thoroughly along with the controls section before start up. All personnel (not just the operator) shall read this section and understand the operation of this machine and dangerous areas to avoid.

  • Page 28: Pre-Operational Checklist

    SAFETY OPERATION PRE-OPERATIONAL CHECKLIST 1� It is the operator’s responsibility to inspect the machine before the start of each workday by completing a pre-operation inspection. 2� It is recommended that each operator inspect the machine before operating, even if another operator has already put the machine into service.

  • Page 29: Starting Machine

    SAFETY OPERATION STARTING MACHINE DANGER/ENTANGLEMENT HAZARD: Never hand-feed this machine for any reason� CAUTION: Be sure hydraulic fluid levels are in the required range and all ball valves are open� 1� Turn battery disconnect (OPTIONAL) and key to start position. 2�...
  • Page 30 SAFETY OPERATION Preparation DANGER Under no circumstance shall you hand feed this machine. This section is an overview of the chipping process. It is mandatory that all personnel handling, operating, and maintaining this machine read the manual completely and be properly trained on its use. Operators should also review the manual on a regular basis.
  • Page 31 SAFETY OPERATION • Ensure first-aid equipment is available on the work site. • Always have two trained personnel dressed in safety gear on the work site at all times. Proper preparation and organization of the brush and branches will provide an efficient chipping process, as well as creating safe working conditions and reducing the possibility of unexpected maintenance expenses.
  • Page 32 SAFETY OPERATION Figure 2.1 Trimming the “V” areas off of the brush can reduce down time in having to stop and clear away jammed material Cut lead end at an angle Cut end should be facing the chipper infeed...

  • Page 33: Chipping Wood

    SAFETY OPERATION Chipping Wood DANGER Under no circumstance shall you hand feed this machine. Feeding Brush into the Chipper When you are about to feed brush into the chipper, position the throttle at full RPM’s as discussed on the previous page. NOTE: At least two trained operators must be on the work site at all times.
  • Page 34 SAFETY OPERATION Shut-down DANGER A rotating chipper drum may cause entanglement, crush or mutilation of body parts resulting in serious injury or death. Always wait for the chipper drum to completely stop after shutting the machine OFF and before opening the chipper hood.
  • Page 35 SAFETY OPERATION Lock-up After the machine is shut-down it is important for safety and security reasons to follow the lock-out procedure in the Safety section. The following components must be locked at the end of each work period: • Engine control panel •...
  • Page 36 SAFETY OPERATION Now that you’ve become familiar with the entire chipping process, use the checklists below at the beginning and end of each cycle. Checklist Start-up Emergency equipment is on the work site. At least two trained personnel are on the work site. All personal are outfitted with proper protective clothing and gear.
  • Page 37 SAFETY OPERATION Shut-down The ignition key is out of the machine and control panel is locked. The chipper drum has completely stopped rotating. The machine has cooled down for 15-20 minutes. All storage areas and covers are locked and secured. The work site is cleared of all debris.

  • Page 38: Yoke Lock Procedure

    SAFETY OPERATION YOKE LOCK PROCEDURE 1� Throttle engine down to an idle and disengage the clutch. (If your machine has a mechanical clutch you will need to manually disengage your clutch with the handle.) DANGER/THROWN DEBRIS, CUT, PINCH HAZARD: Make sure the drum has come to a complete stop before at- tempting any maintenance�...

  • Page 39: Transporting

    SAFETY OPERATION TRANSPORTING 1� Check to make sure the clutch is disengaged. 2� Swing Discharge chute to desired position for transport. 3� Drive track machine up to low boy and align the rear of the track machine with trailer. 4� Select low speed and back machine carefully onto trailer.

  • Page 40: Airborne Emissions Data

    SAFETY OPERATION AIRBORNE EMISSIONS DATA ENVIRONMENTAL DIRECTIVES When replacing hydraulic oil or engine oil, the oil and used oil NOISE LEVEL filters and air filters must be returned to an approved receiv- ing station. The sound effect level and the sound pressure level of the woodcutting machine were measured at full throttle while all Oil leaks should be avoided as much as possible.

  • Page 41: Intended Use Of The Machine

    SAFETY OPERATION INTENDED USE OF THE MACHINE This wood chipper may only be used for work described in this chapter. The manufacturer is not liable for any damage as a result of use that is not in accordance with the machine’s intended use. This is the express responsibility of the user.

  • Page 42: Routine Maintenance Schedule

    2) Change oil after first 100 hours of operation then annually or every 1000 hours after that. 3) According to procedures in your Morbark Operators Manual. 4) First 24 hours check all belts and bolts frequently, after first day every 8 hours, after first week follow above procedures.
  • Page 43 ROUTINE MAINTENANCE SCHEDULE Please note that the following maintenance intervals apply for normal operating conditions only. Intervals are hours of operations based on 8 hours per day, 5 days per week. If your operating conditions are different, adjust the specified intervals accordingly CHIPPER PROCEDURES X = ONE SHOT OF GREASE Complete machine...

  • Page 44: Routine Lubrication Schedule

    ROUTINE LUBRICATION SCHEDULE...
  • Page 45 ROUTINE LUBRICATION SCHEDULE Please note that the following maintenance intervals apply for normal operating conditions only. Intervals are hours of operations based on 8 hours per day, 5 days per week. If your operating conditions are difficult, adjust the specified intervals accordingly. X = 1 SHOT OF GREASE 1) Discharge 2) Drum...

  • Page 46: Feed Wheel Drive Lubrication

    ROUTINE LUBRICATION SCHEDULE 1� Raise and lock the feed wheel yoke in the up FEED WHEEL DRIVE LUBRICATION position. 2� Locate the drive hub maintenance cover in the 6:00 position (see Figure 1). 3� Remove the cover to access drain and vent line hoses.

  • Page 47: Routine Maintenance

    ROUTINE MAINTENANCE TIGHTENING TORQUE GUIDE TORQUE IN NEWTON/METER COARSE FINE Socket  Socket  Socket  Socket  head cap  head cap  head cap  head cap  Grade screw screw Grade screw screw Thread  Thread  Bolt Dia per inch Oiled Oiled Oiled Bolt Dia per inch Oiled Oiled Oiled 1/4" 1/4" 5/16" 5/16" 3/8" 3/8" 7/16"...

  • Page 48: How To Use A Belt Tension Gauge

    ROUTINE MAINTENANCE HOW TO USE A BELT TENSION GAUGE Before adjusting the belt tension: 1� Throttle engine down to an idle and disengage the clutch. (This is shown in figure 1 for a electric clutch. If your machine has a mechanical clutch you will need to manual disengage your clutch with the handle.) 2�...
  • Page 49 ROUTINE MAINTENANCE Figure 1 Figure 3 Small 0’ ring Deflection Table 1 Force Small Sheave Deflection force in lbs. for Scale V-belt- Drive Speed Ratio of; Sec- Speed Range Diameter tion 4.0+ (RPM) (in) 1200 - 1800 1200 - 1800 Figure 2 1200 - 1800 1200 - 1800...
  • Page 50 ROUTINE MAINTENANCE Components Infeed Figure 3.3 Infeed Front View...

  • Page 51: Maintenance

    ROUTINE MAINTENANCE Safety DANGER Under no circumstances shall you hand feed this machine. CAUTION Ensure the infeed is clear of all debris before transporting the machine. Loose debris, especially debris in the infeed can dislodge and cause damage to vehicles behind the towed chipper. Function The infeed acts as a safety barrier between the operator and the feed wheels during the chipping process.
  • Page 52 ROUTINE MAINTENANCE Feed Wheels and Chipper Drum Figure 3.4 Discharge chute Knife pocket Chipper drum Top feed wheel Anvil Chipper housing Bottom feed wheel...
  • Page 53 ROUTINE MAINTENANCE Safety DANGER Movement or placement of any part of the body inside the feed wheels and chipper drum will result in mutilation, serious injury or death. Keep all parts of the body (hands, feet, head) outside of the yoke. Opening the chipper hood while the chipper drum is moving will result serious injury or death.
  • Page 54 ROUTINE MAINTENANCE The feed wheel operates in two directions, forward and reverse. When the chipper drum is moving the chipper hood MUST be closed and locked in place using the hood latches. To insure that the chipper hood is locked, the machine is equipped with a hood safety switch. The switch will not allow the machine to start with the hood open. Maintenance Follow these steps to achieve good quality chips, eliminate stress on the chipper as well as reducing down time due to clogged components: •...
  • Page 55 ROUTINE MAINTENANCE Feed Wheel Chain Drive Safety DANGER Moving chains will cause serious injury or death. Do not operate without the guards in place. Do not attempt to touch, check, clean, or adjust the chain during operation. Function The feed wheel chain provides power to the top feed wheel. The chain drive consists of the chain, two sprockets, two bushings, hydraulic motor and the chain guard.
  • Page 56 ROUTINE MAINTENANCE Yoke Safety DANGER Movement or placement of any part of the body inside the yoke will result in mutilation, serious injury or death. Keep all parts of the body (hands, feet, head) outside of the yoke. Function The yoke houses the top feed wheel, its primary function is to aid in feeding material into the chipper. When maintenance or repairs are needed on the feed wheels and chipper drum, the yoke raises and lowers, allowing easy access to the interior of the chipper base.
  • Page 57 ROUTINE MAINTENANCE Valve Banks Safety WARNING Relieve stored hydraulic pressure before performing service to the hydraulic system. Components could be hot to the touch. Function The hydraulic valve bank controls operate the machine. They control the yoke and aide in machine maintenance. The auto reverse valve stops the feed wheel when low rpm’s are detected from the motor.
  • Page 58 ROUTINE MAINTENANCE Discharge Chute Figure 3.7 Deflect Adjuster...
  • Page 59 ROUTINE MAINTENANCE Safety Function DANGER There are three options for the discharge chute. They include; a height adjustor, hydraulic swivel, and forestry. You can order one or all options. Contact with the discharge chute while it’s in motion will 1� Height Adjuster: Changes the flow angle of the discharge. cause serious injury or death.
  • Page 60 ROUTINE MAINTENANCE Discharge Chute Chain Tension Top Load Safety DANGER To adjust the discharge chute chain: Figure 3.9 Flying debris will cause serious injury or death. Never stand in front of the discharge chute. Direct discharge away from people and animals. Conducting maintenance with the engine on will cause serious injury or death.
  • Page 61 Morbark parts and service, the solution to your problems. Buying your parts elsewhere just does not pay. To keep your equipment performing at its peak use GENUINE MORBARK PARTS 800-255-8839 800-832-5618 fax www.morbark.com 03/15 •...
  • Page 62 ROUTINE MAINTENANCE Discharge Chute Cleaning Safety DANGER Flying debris will cause serious injury or death. Never stand in front of the discharge chute. Direct discharge away from people and animals. Conducting maintenance with the engine on will cause serious injury or death. Turn off the engine and lockout the machine before servicing.
  • Page 63 ROUTINE MAINTENANCE 4� Open the clean out door and remove any material that is accessible. 5� If you have material that is unreachable through the clean out door, the chute should be lowered to gain access to the clogged area. NOTE: Two (2) People shall be involved when attempting to lower the discharge chute.
  • Page 64 ROUTINE MAINTENANCE Hydraulic oil Hydraulic Oil and Fuel Tank fill/vent cap Hydraulic oil filter Figure 3.10 Valve closed Sight gauge Inspection cover Located on back side of hydraulic tank Valve open Hydraulic shut-off valve, located on the fuel and hydraulic tanks Fuel filler cap Fuel sight gauge...
  • Page 65 ROUTINE MAINTENANCE Safety DANGER Exposing fuel to an ignition source such as a flame or spark will result in explosion, fire, serious injury or death. Never smoke, light a flame or create a spark around the fuel tank. Store the machine and extra fuel away from ignition sources.
  • Page 66 ROUTINE MAINTENANCE Engine Belt Drive Safety WARNING Moving belts can cause serious injury or death. Do not operate without the guards in place. Do not attempt to touch, check, clean, or adjust the belts during operation. Turn off the engine and lock-out the machine before servicing.
  • Page 67 ROUTINE MAINTENANCE Figure 3.11 Belt guard door for checking belt tension Belt guard bolts Bushing Sheave Belt Belt guard 03/15 •...
  • Page 68 ROUTINE MAINTENANCE Engine Figure 3.12 Typical Engine Configuration Left View Right View Air filter Muffler Control panel Note:”Panel will vary with engine make and model Radiator screen and is shown for (radiator is housed illustrative purposes only.” behind the screen) Engine housing Engine (engine models vary)
  • Page 69 The engine is the source of power for the machine. The M20R chipper has many options for its engine. Consult the engine manufacturers manual for the safety, use and maintenance of your specific engine. The engine drive belt, sheaves, air filter and muffler will vary with each model. See the Parts section for part numbers on the engines and their components.

  • Page 70: Drum Wear

    ROUTINE MAINTENANCE DRUM WEAR: What causes drum wear? 1� Again dull knives are the biggest culprit and will make the operator force feed the machine, which can cause wear all the way around the straight edge drum. 2� Force feeding can cause the material to ride against the drum all the time causing more pressure and wear on the drum it also takes more horse power and fuel to operate.

  • Page 71: Chip Quality

    2� It is not recommended that you change the knife lengths to try and get the chip quality you want. Morbark has done extensive factory testing with this and you will get the same results by slowing down or speeding up the feed system.

  • Page 72: Changing Standard Babbitted Chipper Knives

    ROUTINE MAINTENANCE CHANGING STANDARD BABBITTED CHIPPER KNIVES Knives should be changed before they are dull, to prevent the operator from having to force-feed the machine causing pre- mature wear on the drum and its components. 1� Throttle engine down to an idle and disengage the clutch. (This is shown in figure 1 for a electric clutch. If your machine has a mechanical clutch you will need to manual disengage your clutch with the handle.) DANGER/THROWN DEBRIS, CUT, PINCH HAZARD: Make sure the drum has come to a complete stop before at- tempting any maintenance�...
  • Page 73 ROUTINE MAINTENANCE CHANGING STANDARD BABBITTED CHIPPER KNIVES CON'T 7� Each time chipper knives are changed, counter knives must be inspected. If worn they must be sharpened and babbitted. If they are too worn to be sharpened and babbitted they must be replaced. 8�...

  • Page 74: Changing Standard Knife Holders

    ROUTINE MAINTENANCE CHANGING STANDARD KNIFE HOLDERS It is recommended that you change your holders when they allow material to pack under the counter knife. This can happen when the holder has a chip near the knife or when there is excessive wear on the face of the holder that allows the wood to flow into that location and pack.
  • Page 75 PER DRUM WITHOUT ALL THE KNIVES, POCKET BLANKS MUST BE USED IN THE LOCATIONS WHERE THE KNIVES HAVE BEEN REMOVED. FAILURE TO DO SO WILL VOID ALL DRUM WAR- RANTY. POCKET BLACKS CAN BE PURCHASED THROUGH THE MORBARK PARTS DEPARTMENT. 03/15 •...
  • Page 76 ROUTINE MAINTENANCE GRINDING BABBITTED KNIFE 29° When grinding the knives, extreme care must be taken to ensure that excessive heat isn’t put into the knife edge. Excessive heat (indicated by discoloration of the knife edge) will lead to microscopic cracks that can cause the knife to break when it is put back into service. DO NOT attempt to use knives that have been exposed to excessive heat from sharpening! Once the discoloration appears, the knife can not be made serviceable again by simply removing the discoloration.
  • Page 77 ROUTINE MAINTENANCE Babbitted Knife GRINDING BABBITTED KNIFE CON'T 4� Use a honing stone to remove any burr edges left from filing. This procedure increased knife life up to three times and has reduced the amount of steel the grinder takes off the knife. It may be necessary to do some experimenting with this back grind for your particular application.

  • Page 78: Grinding Standard Counter Knife

    ROUTINE MAINTENANCE GRINDING STANDARD COUNTER KNIFE When grinding the counter knives, extreme care must be taken to ensure that excessive heat isn’t put into the knife edge. Excessive heat (indicated by discoloration of the knife edge) will lead to microscopic cracks that can cause the knife to break when it is put back into service.

  • Page 79: Babbitting Standard Chipper Knife

    ROUTINE MAINTENANCE BABBITTING STANDARD CHIPPER KNIFE To maintain the desired chip size, it is important that you babbitt your knives after each grinding. NOTE: Pay close attention to the knife gauge. The knife gauge sent with your machine has 2 sides. One is for the chipper knife. This will be the longer side measured from the inside width of the gauge.

  • Page 80: Babbitting Standard Counter Knife

    ROUTINE MAINTENANCE BABBITTING STANDARD COUNTER KNIFE To maintain the desired chip size, it is important that you babbitt your knives after each grinding. NOTE: Pay close attention to the knife gauge. The knife gauge sent with your machine has 2 sides. One is for the counter knife. This will be the shorter side measured from the inside width of the gauge which is adjustable.

  • Page 81: Mill Bearing Greasing Instructions

    ROUTINE MAINTENANCE MILL BEARING GREASING INSTRUCTIONS The mill bearings support the mill shaft and should be cleaned and 4� Slide the bearing onto tapered sleeve. Match the inner taper repacked twice a year or every 1,000 hours. on the bearing. 5�...

  • Page 82: Inspecting Anvil Clearance

    ROUTINE MAINTENANCE INSPECTING ANVIL CLEARANCE When inspecting inside the spout every possible safety precaution must be followed! 1� Throttle engine down to an idle and disengage the clutch. DANGER/THROWN DEBRIS, CUT, PINCH HAZARD: Make sure the drum has come to a complete stop before attempting any maintenance� CAUTION: Do not use your hand to check for drum movement�...

  • Page 83: Anvil Rod Puller Instructions

    ROUTINE MAINTENANCE ANVIL ROD PULLER INSTRUCTIONS When removing the anvil every possible safety precaution must be followed! Your anvil has four (4) usable side that can be used for chipping 1� Throttle engine down to an idle and disengage the clutch. (This is shown in figure 1 for a electric clutch.

  • Page 84: Tightening The Infeed Bed Chain Drive

    ROUTINE MAINTENANCE TIGHTENING THE INFEED BED CHAIN DRIVE STRAIGHT EDGE OR LEVEL Loosen four (4) bolts on the hydraulic motor foot mount. Slide motor back un- 1/8” - 3/16” SLACK til chain has between 1/8 In to 3/16 In (3,175 mm to 4,76 mm) of slack. Check sprocket to chain alignment, make sure the motor is perpendicular to the chain.

  • Page 85: Clean Engine Area

    ROUTINE MAINTENANCE CLEAN ENGINE AREA CAUTION: Never clean engine with engine running� CAUTION: A combination of dirt, oil, wood dust and chip material in the engine area presents a risk of fire� Clean the engine and chipper area daily by blowing debris out from around power unit with compressed air. NOTE: See power unit operations and maintenance manual for further information.

  • Page 86: Fuel Specifications

    ROUTINE MAINTENANCE FUEL SPECIFICATIONS No. 2D diesel fuel is recommended for use in all diesel power units. In extremely cold temperatures use No. 1D diesel fuel. In selecting a fuel, note that distillate fuels are especially desirable because the fuel is heated to a vaporous state and con- densed thus eliminating all sediment and residue.

  • Page 87: Clean Radiator

    ROUTINE MAINTENANCE RADIATOR WARNING: Never open cap on a hot radiator� Prior to cold weather, be sure cooling system has a proper amount of antifreeze. Use a quality brand of permanent-type ethylene glycol antifreeze which contains a rust inhibitor and lubricant. Use a 50/50 ethylene glycol antifreeze and clean water.

  • Page 88: Batteries

    ROUTINE MAINTENANCE BATTERIES The batteries are located near the engine. Two 12 volt batteries are provided to make 24 volts. SERVICING BATTERIES 1� Keep battery and battery box clean. Keep all connections clean and tight. Remove all corrosion and wash terminal with a solution of baking soda and water.

  • Page 89: Understanding Hydraulics

    UNDERSTANDING HYDRAULICS HYDRAULIC SAFETY b. Suspended loads, booms and stabilizers. c. Charged accumulators. BE CAREFUL OF: d. Electrical voltage. Leaks a. Puddles of fluid are slippery and hazardous. NOTE: Never boost pressure settings on hydraulics. This will b. Most hydraulic oils will vaporize and ignite, void the manufacturer's warranty.
  • Page 90 Whe n refilling t he system we recommend MORBARK HYDREX XV hydra ulic fluid o r equival e n t. OPER ATING R ANGE -40° to 17 0° F (-40° to 77° C) WHEN TO CHANGE FLUID If Temperature Exceeds 170°...

  • Page 91: Servicing Hydraulics

    SERVICING HYDRAULICS THE SEVEN STEPS OF TROUBLE SHOOTING Talk to the operator. Test probable causes. Know the system - schematics. Repair the system. Inspect the machine. Check for root causes. List probable causes. GATHER INFORMATION (STEPS 1, 2 AND 3) Information is very important.

  • Page 92: Noisy Pump

    SERVICING HYDRAULICS NOISY PUMP Intake clogged: Make sure tank is cleaned periodically. Fluid must be kept 3/4 full. Air in the system: Check fittings, cracked hoses, and other Air leak in intake: If any air is going through pump, it will parts on the pump intake.

  • Page 93: Air Filter Maintenance

    AIR FILTER MAINTENANCE 1� REMOVE THE AIR FILTER GENTLY - Accidentally bumping the air filter against the filter housing will contaminate the clean side of the housing, before the new filter element has a chance to do its job. 2� ALWAYS CLEAN THE INSIDE OF THE FILTER HOUSING AND THE GASKET SEALING SURFACES CAREFULLY Use a clean damp cloth to wipe every surface clean.
  • Page 94 AIR FILTER MAINTENANCE NOTE: Its the customer's responsibility to follow all steps of air filter maintenance every 200 hours or every engine oil change. Low pre-cleaner efficiency will cause short element life. Low pre-cleaning efficiency can be caused by: • Leaking dust cup to air cleaner body joint;...

  • Page 95: Troubleshooting

    TROUBLESHOOTING HYDRAULIC SYSTEM PROBLEM PROBABLE CAUSES AND SOLUTIONS Noisy pump cavitation 1. Check inlet hose for damage. Replace hose. (pump starving�) 2. Fluid viscosity too high. Replace oil. 3. Operating temperature too low. Allow system to warm up. Overheating of system 1.

  • Page 96: General

    4. Check all motor fluid levels. ELECTRICAL NOTE: Your Morbark equipment may have an electronic engine and electronic controls. These sensitive controls have many electrical grounds throughout the machine. These grounds must be clean for the electronics to work properly. When a problem with the electrical system is suspected, first make sure all grounds are clean, dry and have a good connection before continuing troubleshooting.
  • Page 97 Morbark parts and service, the solution to your problems. Buying your parts elsewhere just does not pay. To keep your equipment performing at its peak use GENUINE MORBARK PARTS 800-255-8839 800-832-5618 fax www.morbark.com 03/15 •...

  • Page 98: Warrantable Failure

    All returned parts must be shipped freight prepaid. 4. The white, yellow and green copies need to be mailed in an envelope to Morbark Warranty, PO Box 1000, Winn, MI 48896. Both the parts and claim need to bereceived for warranty consideration.

  • Page 99: Warranty

    Warranty shall be the repair or replacement of the equipment (at the option of Morbark) without charge to the purchaser, when the equipment is returned to Morbark’s factory at 8507 South Winn Road, Winn, Michigan or at such other locations as may be designated in writing by Morbark.
