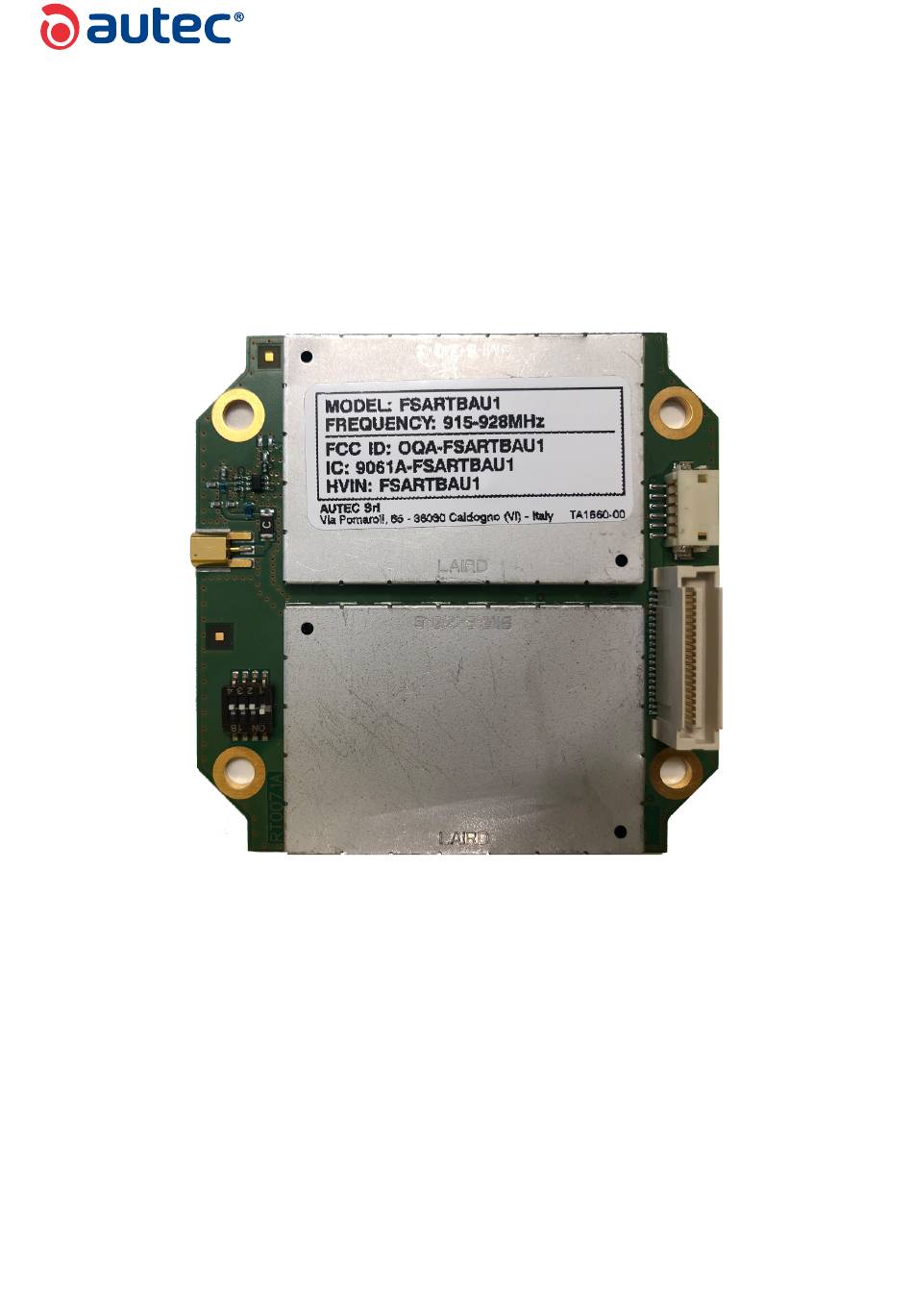

- Page 1 Instruction Manual for FSARTBAU1 radio module Original instructions...
-
Page 2: Table Of Contents
INDEX Description FSARTBAU1 radio module ................3 1.1 Identification ..........................3 1.2 Technical data ..........................3 1.3 Photos ............................3 Applications .........................5 Functional description ......................6 Frequencies groups ......................7 4.1 Frequencies group “A” ......................... 7 4.2 Frequencies group “B” ......................... 7 4.3 Frequencies group “C”... -
Page 3: Description Fsartbau1 Radio Module

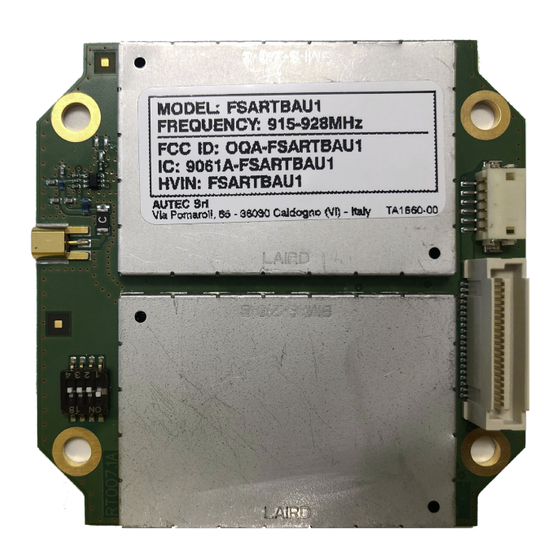

Description FSARTBAU1 radio module Identification Equipment radio module Radio module FSARTBAU1 Used frequency band 915-928 MHz AUTEC srl Via Pomaroli, 65 Manufacturer 36030 CALDOGNO (VI) Technical data Used frequency band 915 - 928 MHz Type of modulation 19300 Baud RC-FSK... - Page 4 fsartbau1_instruction_manual-rev2 Back view...
-
Page 5: Applications
Applications The use of FSARTBAU1 radio module is limited to remote and base stations of Autec Dynamic series. In addition to the above, this radio module cannot be installed: - inside equipment that is portable by user - in equipment that are intended for the use in environments requiring explosion-proof features or in any usage situation that may pose the risk of explosion. - Page 6 fsartbau1_instruction_manual-rev2 The module is installed in the base stations according to the following instructions: Radio module Antenna connector Host The connection between the radio module and the antenna is made through the coaxial cable inside the base station or the remote station..
-
Page 7: Functional Description
Antenna Impedance 50 ohm Autec uses only the dedicated antenna supplied either with the radio module or as original spare part. The use of any other type of antenna is prohibited and will invalidate the warranty. For Autec base stations the installer places the antenna in a position that ensures a minimum separation distance of 5mm from all the people that can be in the working area. -
Page 8: Frequencies Groups
In the FSARTBAU1 radio module there are 4 groups selectable inside the 256 channels available: group A, group B, group C, group D. The group is chosen by the equipment where the FSARTBAU1 radio mo- dule is mounted based on the serial number of the equipment. -
Page 9: Frequencies Group "C
fsartbau1_instruction_manual-rev2 GROUP B 917.325 920.525 923.725 926.925 917.525 920.725 923.925 927.125 917.725 920.925 924.125 927.325 917.925 921.125 924.325 927.525 918.125 921.325 924.525 927.725 Frequencies group “C” The channel range of group C is 915.175 - 927.775MHz. The group contains 64 channels with a minimum space between them of 200kHz. GROUP C 915.175 918.375... - Page 10 fsartbau1_instruction_manual-rev2 GROUP D 916.825 920.025 923.225 926.425 917.025 920.225 923.425 926.625 917.225 920.425 923.625 926.825 917.425 920.625 923.825 927.025 917.625 920.825 924.025 927.225 917.825 921.025 924.225 927.425 918.025 921.225 924.425 927.625 918.225 921.425 924.625 927.825...
-
Page 11: Approval For Us
FCC End Product Labeling The FSARTBAU1 module is labeled with its own FCC ID. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. -
Page 12: Approval For Canada
ISED End Product Labeling The FSARTBAU1 module is labeled with its own IC ID. If the IC ID is not visible when the module is in- stalled inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module.
