Bobrick B-868 Instructions For Installation, Operation, Maintenance

To Operate:
1. Prime Unit – After filling
dispenser, plug in power
to start prime. If unit is
plugged in prior to filling
dispenser, place hand
under spout within sensor
location to start prime.
1-1/2"
2. Standard Dispense –
38mm 1/4"
6mm
Place hand under spout
1-1/4"
32mm
within the sensor location
Activation
Area
for approximately 1/2
second to dispense
controlled amount of foam
hand soap.
Routine Cleaning and Maintenance:
Using a damp cloth, wipe the chrome-plated exterior of the dispenser daily. Periodically (about 3 to 6 months), it is
recommended to flush the system with lukewarm water for cleaning and maintenance.
Automatic System 1. When minimal amount of soap is left in the bottle, fill dispenser with lukewarm water from top
Flush Button
to dilute soap.
2. Press on Automatic System Flush Button to flush the system.
3. Once unit is flushed, press Automatic System Flush Button again to stop dispensing.
4. Fill unit with fresh foam soap, and dispense as usual.
Troubleshooting:
1. Soap dispenser does not dispense soap, but you can hear motor running. The green LED lights up when hands are under spout.
b. Press Automatic System Flush Button again to turn it off
2. Soap dispenser does not dispense soap and you cannot hear motor running. The green LED does not light up when hands are
under spout.
a. Be sure power is supplied to unit.
b. Make sure Fiber Optic Nut is tight on Fiber Optic Port.
Warranty:
Designer Series Counter-Mounted Automatic Foam Soap Dispenser is warranted to be free from defects in workmanship
and material under normal usage from the date of purchase for a period of 3 years.
In the U.S.A.: BOBRICK WASHROOM EQUIPMENT, INC.
Los Angeles: 6901 Tujunga Ave., North Hollywood, CA 91605-6213: Tel: (818) 982-9600, FAX: (818) 503-1102
New York: 200 Commerce Drive, Clifton Park, NY 12065-1350; Tel: (518) 877-7444, FAX: (518) 877-5029,
or e-mail: customerservice@bobrick.com
In Canada: BOBRICK WASHROOM EQUIPMENT COMPANY
© 2024 by Bobrick Washroom Equipment, Inc.
45 Rolark Drive, Scarborough, Ontario M1R 3B1 • Eastern Canada: Tel: (877) 423-6555 • FAX: (877) 423-8555
• Western Canada: Tel: (877) 423-6444 • FAX: (877) 423-8444
Form No. 868-91 07/26/24
3. Adjusting the foam quality –
Foam quality in terms of
more or less liquid used to
produce the foam can be
adjusted by rotating the
Portion Control Knob
clockwise for more air in the
foam and counterclockwise
Portion
Control
for less air in the foam.
Knob
4. LED Light Indicators –
When unit is in standby
mode and contains soap,
LED will have no light. When
activated for dispense, solid
green LED will light. If red
light is flashing, remove
hand to allow unit to reset.
Hand must be removed for a
second activation. LED will
flash blue when unit is low
on soap.

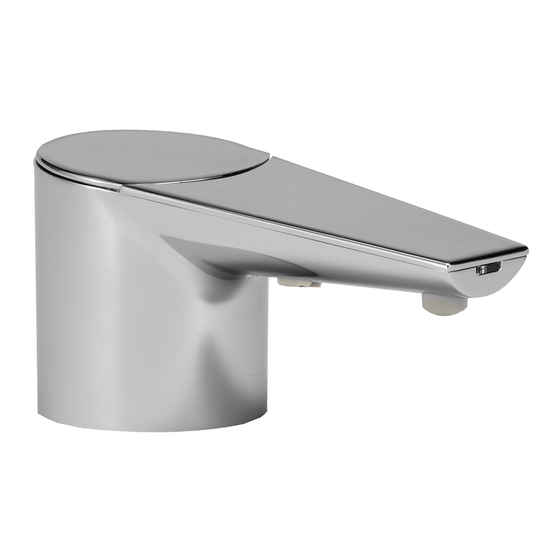

Designer Series Automatic, Counter-Mounted Soap Dispenser
INSTRUCTIONS FOR INSTALLATION, OPERATION & MAINTENANCE
BOBRICK MODELS B-868, B-865, B-862 FOAM SOAP DISPENSER
Clearances and Mounting Requirements:
• 1-3/8" (35mm) diameter mounting hole required.
• Minimum 18-1/2" (470mm) vertical clearance needed below the counter.
• 5" (127mm) diameter clearance needed below the mounting hole to accommodate
bottle and bottom housing.
• Minimum 2-1/4" (57mm) diameter clearance needed for Mounting nut directly below
the counter to clear sink rim.
• Recommend drilling mounting hole 6" to 8" (150 to 205mm) from the wall, and 2-1/2" to
3" (65 to 75mm) from sink rim.
For New Installation:
• Refer to mounting template for drilling locations.
For Retrofit:
1. Remove existing dispenser(s).
2. Clean area.
3. Ensure hole is 1-3/8" (35mm) diameter.
4. If necessary, enlarge opening using appropriate hole saw. For granite/marble counters, recommend using a diamond hole saw
(consult with stone and granite specialist). If needed, mounting hole should be offset to clear the sink rim. The Mounting nut
requires 2-1/4" (57mm) diameter clearance directly below the counter.

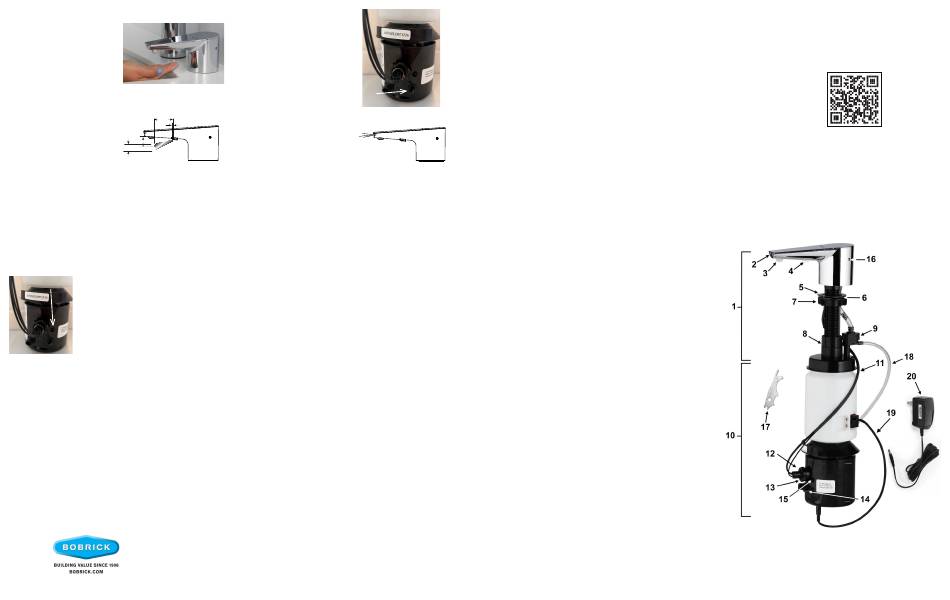

Unit Diagram:
Item Description
1 Top Assembly with Spout, Door and Stem
2 LED Light Pipe
3 Foam Nozzle Tip with Mesh
4 Fiber Optic Insert with Sensor Lenses
5 Rubber Counter Gasket
6 Wave Washer
7 Mounting Nut
8 Stem Locking Nut
9 Foam Mixer Housing
10 Bottom Housing Assembly (includes Soap Bottle)
11 (3) Fiber Optic Cables for Sensor and LED Light Pipe
12 Fiber Optic Connector Tip Assembly
13 Fiber Optic Nut
14 Portion Control Knob
15 Automatic System Flush Button
16 Key Hole
17 BobKey
18 Air Tube
19 Low Soap Level Sensor
20 A/C Adapter Kit with U.S. Plug
For outlets not compatible with U.S. plugs, order
Part No. 3974-58.
Scan for SureFlo Automatic Foam
Soap Dispenser Installation Video.
1
