Bobrick B-824 Technical Data

Technical Data
Patented

MATERIALS:

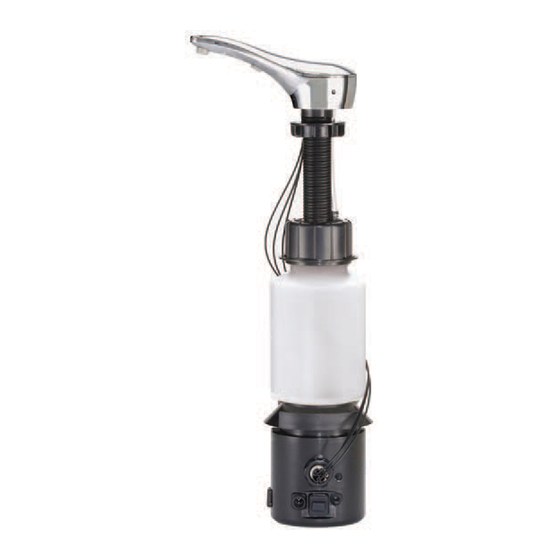

Spout and Stem Assembly — Above the counter, chrome plated ABS plastic spout. Unit equipped with a spring loaded
180° rotatable lid with concealed locking mechanism for top filling. Rotatable lid mechanism consists of metal components.
Integrated to Spout are a grey plastic Dispense Tip and Activation Lens Housing. Stem connects to Bottle.
Soap Bottle — Translucent, shatter-resistant polyethylene. Capacity: 34-fl oz (1.0-L).
Pump and Soap Deliver y System — A plastic Gear Pump submerged in the bottom of the Bottle, pumps the liquid soap
through a vinyl tube to spout.
Bottom Housing — Water resistant, ABS plastic housing attached to the bottom of the Bottle, houses the PC Board, motor
that drives the Gear Pump, and the Gear Pump Housing. It includes a Portion Control Knob, Flush Button to allow for system
cleaning and maintenance, a connector for the Fiber Optic cables, and Power Port.
Electronic Activation/Indication System — Pair of plastic Fiber Optic cables connects the plastic Activation Lenses to an
IR Sensor located on a PC Board in the Bottom Housing. A third plastic Fiber Optic cable connects an LED located on the
PC Board to an acrylic Lens at the tip of the Spout; a solid green LED indicates dispense activity and a red blinking LED light
indicates low battery life. All three cables are Integrated into one Fiber Optic Connector Tip for ease of installation.
Batter y Pack — Water-resistant, plastic material holds 4 Alkaline "D" Cell Batteries (not included). ANSI-134A, IEC-LR20
Designation, which includes most standard battery manufacturer's D-Batteries.
The illustrations and descriptions herein are applicable to production as of the date of this Technical Data Sheet.
The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions.

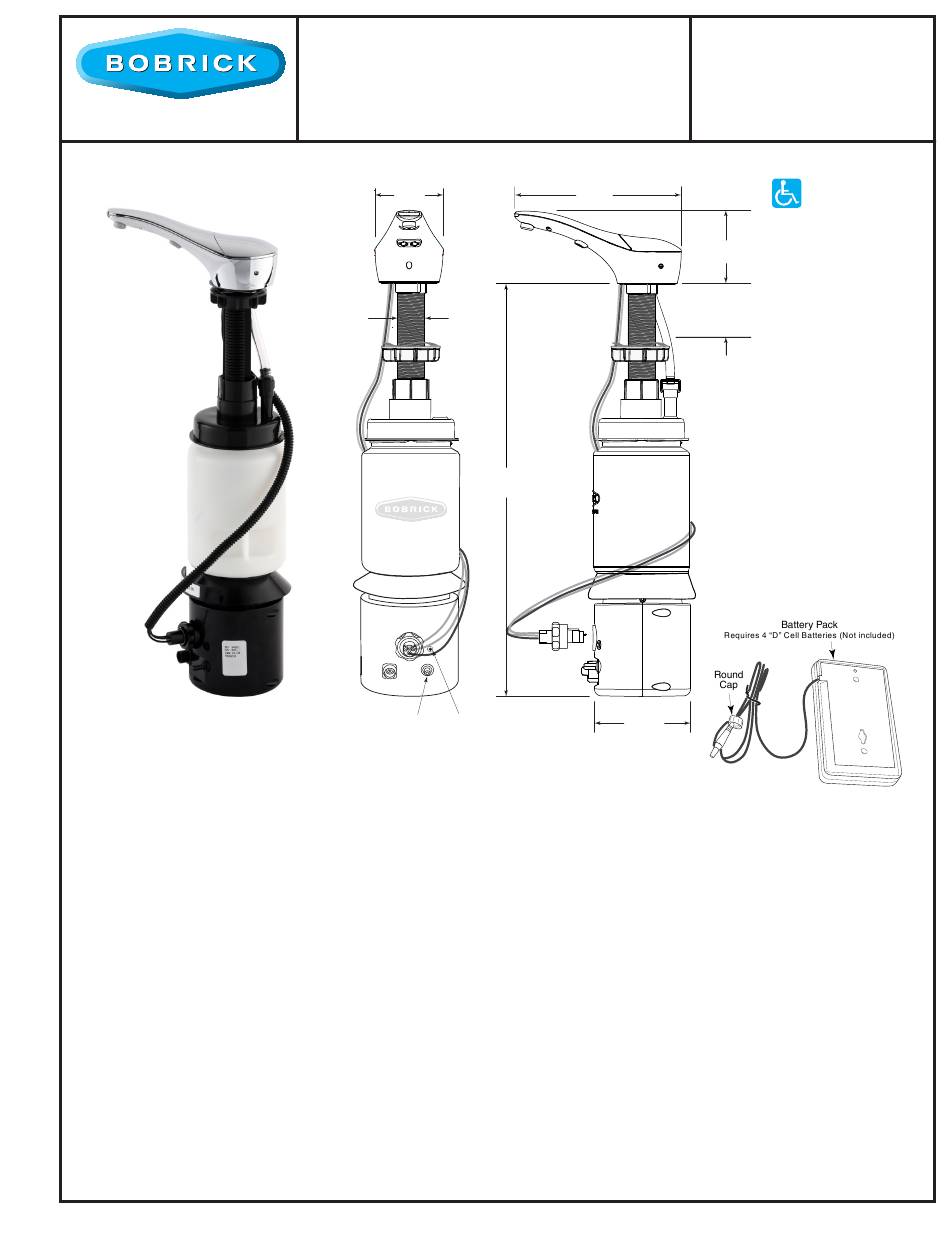

COUNTER-MOUNTED
SureFlo AUTOMATIC
®
TOP-FILL BULK
LIQUID SOAP DISPENSER
2-3/4"
70mm
1-3/8"
35mm
Dia.
Portion
Auto System
Control Knob Flush Button
6-3/4"
170mm
17"
430mm
3-7/8"
100mm
Dia.
B-824
2-15/16"
75mm
2"
50mm Maximum
Mounting Thickness
continued . . .
