Opus OP4 User Manual

Hide thumbs Also See for OP4:
Table of Contents

Advertisement

Quick Links

Download this manual
PCT Patent Pending GB/2017/050391 &
Australian Patent Pending 2017902549
Design Registration No. 201712065
& No. 201712062
USER
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OP4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Opus OP4

Summary of Contents for Opus OP4

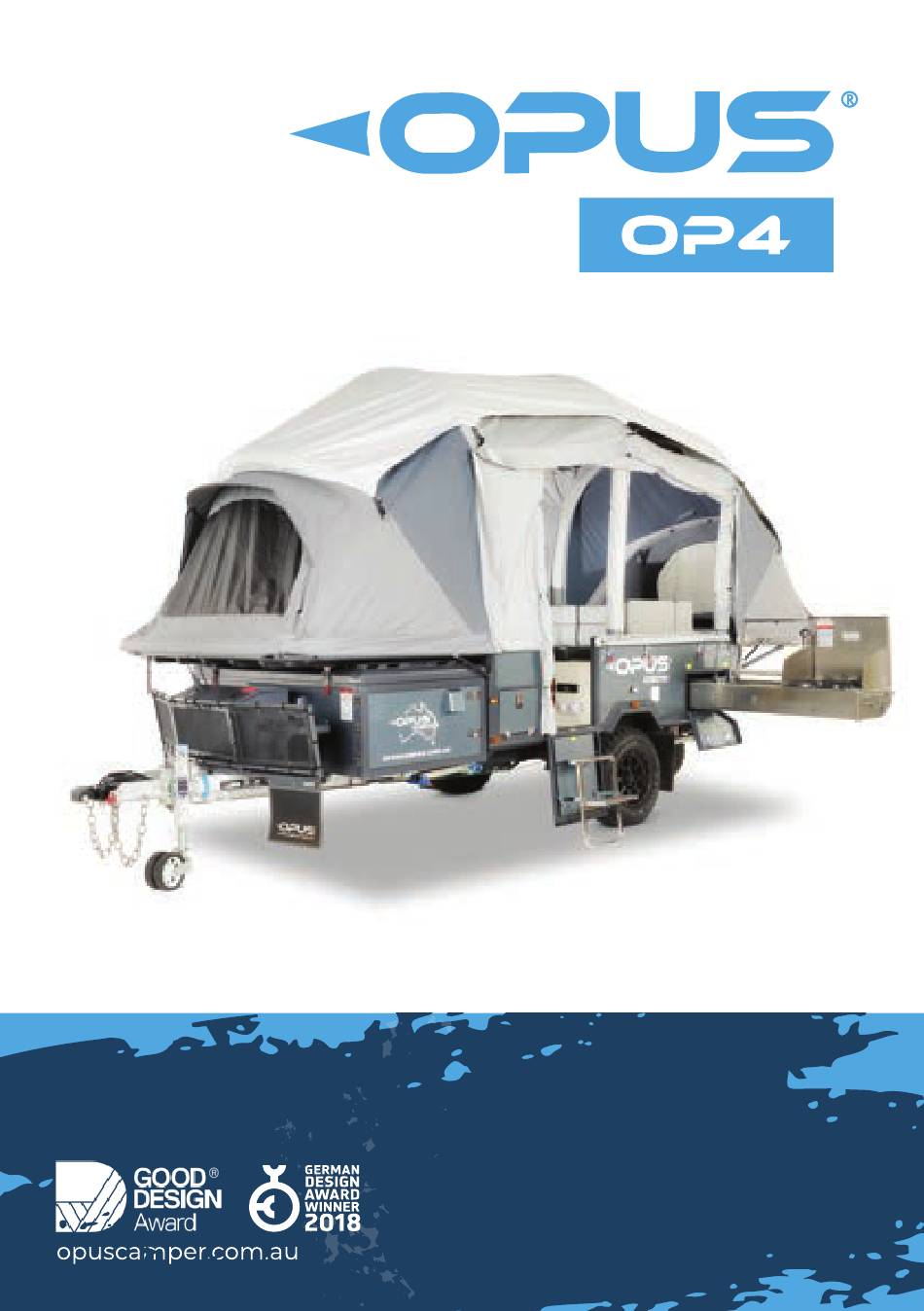

  • Page 1 PCT Patent Pending GB/2017/050391 & Australian Patent Pending 2017902549 USER Design Registration No. 201712065 & No. 201712062 MANUAL...
  • Page 2 PCT Patent Pending GB/2017/050391 & Australian Patent Pending 2017902549 Design Registration No. 201712065 & No. 201712062 OP 4 USER MANUAL | version 2.0...

  • Page 3: Table Of Contents

    OPUS Brake Set Up Page 11 Setting Up your OPUS Camper Page 12-13 Understanding the OPUS Switchboard Page 14 Understanding the air valves when setting up your OPUS Camper Page 15 OPUS Water System Page 16 -17 OPUS Gas System Page 18...

  • Page 4: My Opus Camper

    MY OPUS CAMPER OWNER: ADDRESS: MODEL: VIN: BUILD DATE: ATM: TARE: MAX PAY LOAD: TYRE SIZE: DEALER: OPUS opuscamper.com.au OP 4 USER MANUAL | version 2.0...

  • Page 5: Vehicle Identification Number (Vin)

    VEHICLE IDENTIFICATION NUMBER (VIN) opuscamper.com.au OP 4 USER MANUAL | version 2.0...
  • Page 6 SPECIFICATIONS - OP4 Colour Grey, Green, Bronze, White Body Work Baked ename Box Material Main body aluminium frame & composite panel exterior, with galvanized steel chassis and draw bar Ground clearance 310mm Bed Size 1260 x 1830m x2 Features Coupling...

  • Page 7: Optional Accessories

    SPECIFICATIONS - OP4 Electrical Power Supply 12V & 240V Anderson Plug for Solar Panels 1x driver side Battery 2x 100Ah Lithium Battery Battery Charger 50A AC-DC Charger & 40A DC-DC Charger Towing Wiring 7 PIN flat plug & Anderson plug...
  • Page 8 DIMENSIONS - OP4 2050mm 2155mm 6580mm 5600mm opuscamper.com.au OP 4 USER MANUAL | version 2.0...
  • Page 9 12 QUICK TIPS TO SET UP AND PACK UP YOUR OPUS PRO at setting up an OPUS! Invest in a cordless drill and 19mm hex head bit to adjust stabiliser legs rather than manually winding them. opuscamper.com.au OP 4 USER MANUAL | version 2.0...
  • Page 10 12 QUICK TIPS TO SET UP AND PACK UP YOUR OPUS Take special care to ensure all canvas is When folding the bed lids away, tucked away on all sides especially around always fold the rear bed lid rst and gas struts, hinge points and where the two ensure all canvas is tucked in.
  • Page 11 12 QUICK TIPS TO SET UP AND PACK UP YOUR OPUS During annexe in ation make sure the external During canopy in ation make sure air valves are closed off before turning air pump all external air valves are closed off...

  • Page 12: Hitching & Trailer Electrics

    You can use this Anderson plug to attach a solar panel which will also charge your OPUS batteries. Your solar panel must have a built-in regulator. The Anderson Plug runs through its own fused system located in the battery box.

  • Page 13: Opus Brake Set Up

    The OPUS is fitted with electric trailer brakes. You need an electric brake controller tted to your car in order to tow the Air OPUS® and operate the electric brakes safely. Before towing, check that the OPUS brakes are on. Refer to your vehicles brake controller user manual.

  • Page 14: Setting Up Your Opus Camper

    SETTING UP YOUR OPUS CAMPER Initial Steps Once you have positioned your OPUS level in the desired location, engage handbrake. Levelling ramps may be required (not supplied). Raise or lower the jockey wheel to level your OPUS lengthways. Using the leg winder supplied, gently lower corner steady legs until each touches the ground with enough pressure to stop any rocking.
  • Page 15 Walk around the OPUS and inspect the tent to ensure that the canvas is properly located within the aluminium channels and that no part of the tent is caught or snagged.

  • Page 16: Water Pump

    SETTING UP YOUR OPUS CAMPER 1. Main Power Button Switch 6. Inverter On/Off Switch 2. Away Switch 7. Water Tank Indicators 3. 12 Volt Sockets 8. Air Inflation 4. Lighting 9. Battery Level Indicator 5. Water Pump 10. Key Hooks...

  • Page 17: Understanding The Air Valves When Setting Up Your Opus Camper

    UNDERSTANDING THE AIR VALVES WHEN SETTING UP YOUR OPUS CAMPER Before in ating, twist the Main Close all 5 external air valves on ation valve switch (inside tent and 7 on annexe camper) to a Vertical OPEN position by rotating anti-clockwise.

  • Page 18: Opus Water System

    OPUS WATER SYSTEM The OPUS OP4 is fitted with two 70L Fresh water tanks. with one mounted in front of the axle The two tanks are both plumbed to the same water pump via a 3-way valve located on the driver’s side forward for the wheel on the drivers side.
  • Page 19 OPUS WATER SYSTEM not in use. IMPORTANT A SMALL AMOUNT OF WATER MAY BE PRESENT FROM THE CONNECTORS AND WASTE HOSE, SO A CLOTH IS USEFUL TO REMOVE ANY EXCESS WATER. opuscamper.com.au OP 4 USER MANUAL | version 2.0...

  • Page 20: Opus Gas System

    The gas tap/valve on the top of the gas bottle can now be opened. Turn on the yellow gas tap (situated underneath the rear of the OPUS behind each of the gas outlets unit) by turning 90°.

  • Page 21: Opus 240 Volt Mains Power

    OPUS 240 VOLT MAINS POWER wheel arch. TAKE EXTRA CARE WHEN USING THE SOCKETS, THAT CABLES IMPORTANT DO NOT CAUSE A HAZARD. opuscamper.com.au OP 4 USER MANUAL | version 2.0...
  • Page 22 OPUS 12 VOLT POWER Next to the main door you will find the 12V internal light and switch for the annexe light. There are two LED lights mounted in the rear of the seating are. the switch for the 3 LED floor lights is dimmable.
  • Page 23 OPUS 12 VOLT POWER TIP - Monitor your batteries closely! Charge or discharge the battery to approximately 50% of capacity before storage. Charge the battery to approximately 50% of capacity at least once every six months. opuscamper.com.au OP 4 USER MANUAL | version 2.0...

  • Page 24: Setting Up The King Size Bed Extension

    SETTING UP THE KING SIZE BED EXTENSION Optional Extra Firstly remove bolsters (9&10) then following with (5, 6 &7). STEP 1 Before putting 6 down place bolsters 9 & 10 underneath. Arrange the cushions as STEP 2 shown above, cushions 4, 6 & 8 then place the additional pieces 11 & 12 to create the north south bed.

  • Page 25: Installing Your Opus Annexe

    Thus connect left and right corners of the annexe to the corners of the OPUS camper. STEP 2B Connect roof air tion point to the Opus tent.
  • Page 26 INSTALLING YOUR Air OPUS® ANNEXE STEP 3 Spread annexe canvas out from the camper as shown Make sure the 5 valves on the Opus camper tent are closed a te the main tent STEP 4 whilst the annexe attached. STEP 5 Before g the annexe make sure all 7 outer valves on the annexe are closed.
  • Page 27 INSTALLING YOUR Air OPUS® ANNEXE to canopy continued... After main pump shuts off it has reached the desired pressure. Remember to turn the STEP 8 MAIN GREEN INFLATION switch in the camper to the horizontal CLOSED position when ation is complete. Close all internal valves on annexe and tent, including the cross tube.
  • Page 28 INSTALLING YOUR Air OPUS® ANNEXE Attaching the wall skirt With your OPUS® Camper fully erected, you’re ready to assemble the annexe, and the st step is to attach the wall skirt: STEP 1 Position the OPUS® wall skirt along the entry side wall of your OPUS® Camper.
  • Page 29 Air OPUS® CARE AND MAINTENANCE Locate the faulty air beam and checkthat all valves are closed on the beam. Remove linking air tubes from faulty beam. IMPORTANT DO NOT EVER REMOVE THE BLADDER OUT OF IT’S PROTECTIVE SLEEVE WHILE INFLATED...
  • Page 30 Air OPUS® CARE AND MAINTENANCE Undo the ties holding the zips on the grey tube together and unfasten the zip. While unzipping or zipping be careful NOT to allow the zipper to pinch the air tube. Remove the bladder from the grey tube. When you remove the bladder, you will remove the bladder and the plastic tube and valve as shown below.
  • Page 31 Air OPUS® CARE AND MAINTENANCE The bladder is longer than the grey tube and it is essential that you carefully and tightlyroll the bladder at both ends a carefully into the grey tube. Rolling the bladder onboth ends is essential for the bladder to function correctly.
  • Page 32 Air OPUS® CARE AND MAINTENANCE Open the valves at on the beam. Air should go into the replacement bladder. Depending on the size of the bladder it may be necessary to switch your pump ‘ON’ to ensure there is suf cient air in the air tent for it to be rigid.

  • Page 33: Opus Care & Maintenance

    OPUS CARE AND MAINTENANCE IMPORTANT THE OPUS CAMPER MUST NOT BE STORED WET/DAMP STORAGE RETURN TO THE ROAD Check the tyre pressure before driving (40PSI when cold). opuscamper.com.au OP 4 USER MANUAL | version 2.0...
  • Page 34 OPUS CARE AND MAINTENANCE CARING FOR YOUR CANVAS thoroughly saturate the canvas by hosing it down with water and then allow it to dry prior to its go through ‘weathering’ or ‘conditioning’. as necessary. opuscamper.com.au OP 4 USER MANUAL | version 2.0...
  • Page 35 OPUS CARE AND MAINTENANCE opuscamper.com.au OP 4 USER MANUAL | version 2.0...
  • Page 36 OPUS CARE AND MAINTENANCE EXTERNAL CARE FOR YOUR OPUS to water ingress. opuscamper.com.au OP 4 USER MANUAL | version 2.0...
  • Page 37 OPUS CARE AND MAINTENANCE CONDENSATION doors or vents. etc. will cause condensation when closed. opuscamper.com.au OP 4 USER MANUAL | version 2.0...
  • Page 38 OPUS CARE AND MAINTENANCE VENTILATION When cooking in the Air OPUS® Annexe it is crucial to open the ventilation vents located above and below kitchen slide out are clear and not covered. IMPORTANT WHEN COOKING DO NOT HAVE THE ROOM DIVIDER CLOSED BEHIND KITCHEN SLIDE OUT.

  • Page 39: Opus Warranty

    OPUS WARRANTY INTRODUCTION warranty as set out herein. 5 Year Suspension Warranty 3 Year Canvas & Tent Warranty 5 Year Structural Warranty IMPORTANT VALIDITY OF CLAIMS opuscamper.com.au OP 4 USER MANUAL | version 2.0...
  • Page 40 OPUS WARRANTY Rust Paint Faults to canvas when stored wet. warranty relates. opuscamper.com.au OP 4 USER MANUAL | version 2.0...
  • Page 41 OPUS WARRANTY TENTS covered. & DAMAGED GOODS LODGING A CLAIM CONTACT Head to www.opuscamper.com.au/warranty for more information opuscamper.com.au OP 4 USER MANUAL | version 2.0...

  • Page 42: Opus Internal Features

    OPUS INTERNAL FEATURES opuscamper.com.au OP 4 USER MANUAL | version 2.0...
  • Page 43 OPUS INTERNAL FEATURES Toilet Batteries Lithium Battery with 50A AC-DC charger and 40A DC-DC charger opuscamper.com.au OP 4 USER MANUAL | version 2.0...

  • Page 44: Opus Storage

    OPUS STORAGE Driver side storage Passenger side Fridge slide storage opuscamper.com.au OP 4 USER MANUAL | version 2.0...

  • Page 45: Opus Accessories

    OPUS ACCESSORIES lever opuscamper.com.au OP 4 USER MANUAL | version 2.0...

  • Page 46: Opus Service Schedule

    OPUS Service Schedule SERVICE INTERVAL 3 MONTHS 1 YEAR 2 YEARS 3 YEARS 5 YEARS 4 YEARS Check coupling moves freely and is lubricated Torque coupling bolts Check safety chain and drawbar for rust Check jockey wheel rotates, lifts and spins...

  • Page 47: Opus Bolt Torque Guide

    OPUS Bolt Torque Guide LOCATION BOLT SIZE BOLT GRADE TORQUE Coupling 12 mm 80 Nm Hand Brake 12 mm 80 Nm Jockey Wheel 12 mm 80 Nm Stone Shield 10 mm 22 Nm Tool Box 10 mm 22 Nm Drop-down Legs...

  • Page 48: Notes

    NOTES opuscamper.com.au OP 4 USER MANUAL | version 2.0...
  • Page 49 NOTES opuscamper.com.au OP 4 USER MANUAL | version 2.0...

  • Page 50: Warranty

    FOLLOW US ON FACEBOOK AND INSTAGRAM TO SEE WHAT WE'RE UP TO! WARRANTY opuscamper.com.au OP 4 USER MANUAL | version 2.0...

  • Page 51: Pct Patent Pending Gb/2017/050391 & Australian Patent Pending 2017902549

    PCT Patent Pending GB/2017/050391 & Australian Patent Pending 2017902549 Design Registration No. 201712065 & No. 201712062 03 9588 2959 enquiries@opuscamper.com.au Find us on Facebook Instagram & Youtube Share your feedback...
