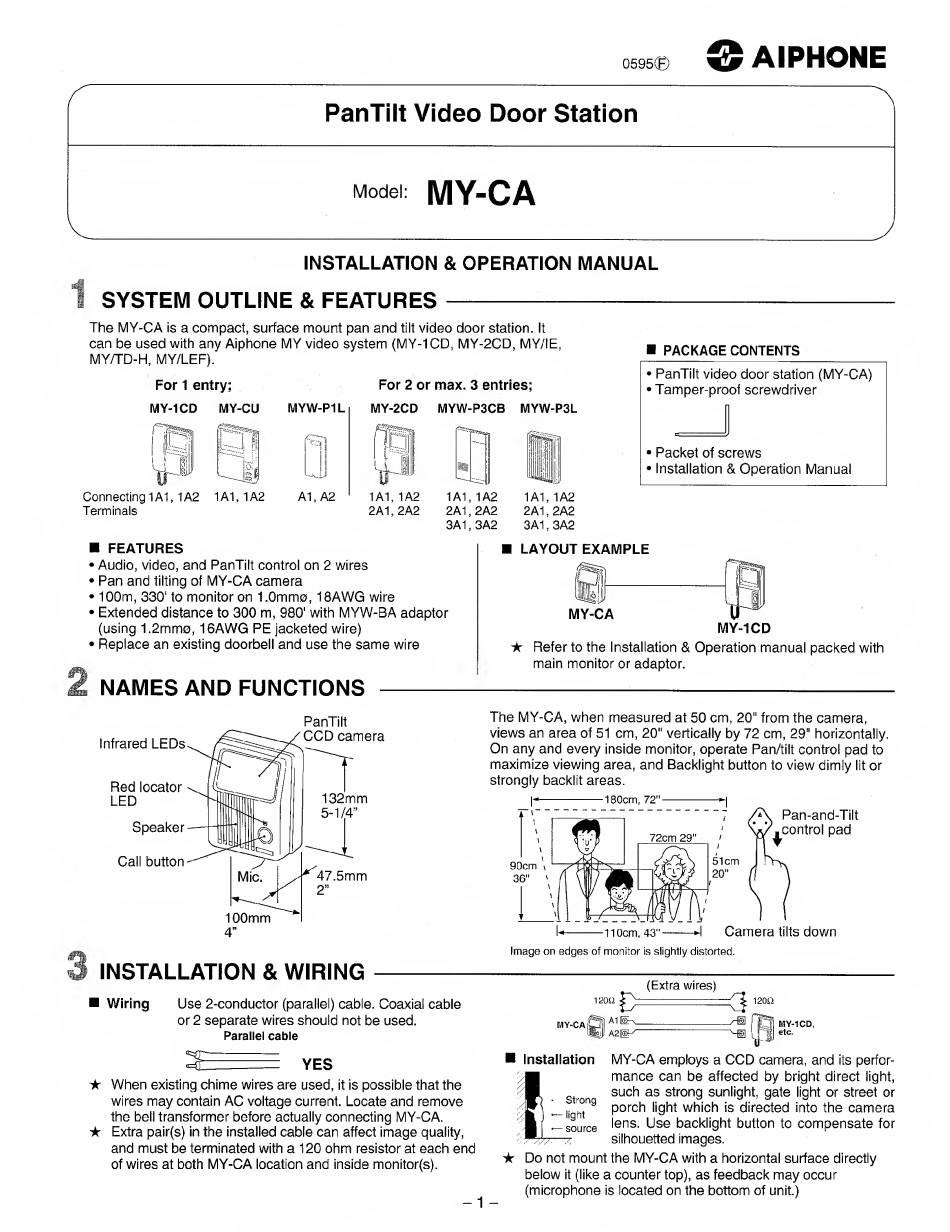

Aiphone MY-CA Installation & Operation Manual

0595©
® AIPHONE
PanTilt Video Door Station
Model:
MY-CA
INSTALLATION & OPERATION MANUAL
SYSTEM OUTLINE & FEATURES--
The MY-CA is a compact, surface mount pan and tilt video door station. It
can be used with any Aiphone MY video system (MY-1CD, MY-2CD, MY/IE,
MY/TD-H, MY/LEF).
For 1 entry;
MY-1CD MY-CU
MYW-P1L
For 2 or max. 3 entries;
MY-2CD MYW-P3CB MYW-P3L
Connecting 1A1.1A2 1A1.1A2 A1.A2
Terminals
1A1, 1A2
2A1, 2A2
1A1, 1A2
2A1,2A2
3A1,3A2
1A1, 1A2
2A1,2A2
3A1,3A2
■ PACKAGE CONTENTS
• PanTilt video door station (MY-CA)
• Tamper-proof screwdriver
_i
• Packet of screws
• Installation & Operation Manual
■ FEATURES
• Audio, video, and PanTilt control on 2 wires
• Pan and tilting of MY-CA camera
• 100m, 3301 to monitor on I.Ommo, 18AWG wire
• Extended distance to 300 m, 980' with MYW-BA adaptor
(using 1.2mm0, 16AWG PE jacketed wire)
• Replace an existing doorbell and use the same wire
NAMES AND FUNCTIONS
■ LAYOUT EXAMPLE
MY-CA
MY-1CD
★ Refer to the Installation & Operation manual packed with
main monitor or adaptor.
PanTilt
INSTALLATION & WIRING
Wiring
Use 2-conductor (parallel) cable. Coaxial cable
or 2 separate wires should not be used.
Parallel cable
YES
When existing chime wires are used, it is possible that the
wires may contain AC voltage current. Locate and remove
the bell transformer before actually connecting MY-CA.
Extra pair(s) in the installed cable can affect image quality,
and must be terminated with a 120 ohm resistor at each end
of wires at both MY-CA location and inside monitor(s).
-1
The MY-CA, when measured at 50 cm. 20" from the camera,
views an area of 51 cm, 20" vertically by 72 cm, 29" horizontally.
On any and every inside monitor, operate Pan/tilt control pad to
maximize viewing area, and Backlight button to view dimly lit or
strongly backlit areas.
■ D
(Extra wires)
li
A2m^~
<3
120Q
■ Installation
m
1
MY-CA employs a CCD camera, and its perfor¬
mance can be affected by bright direct light,
such as strong sunlight, gate light or street or
porch light which is directed into the camera
lens. Use backlight button to compensate for
silhouetted images.
★ Do not mount the MY-CA with a horizontal surface directly
below it (like a counter top), as feedback may occur
(microphone is located on the bottom of unit.)
