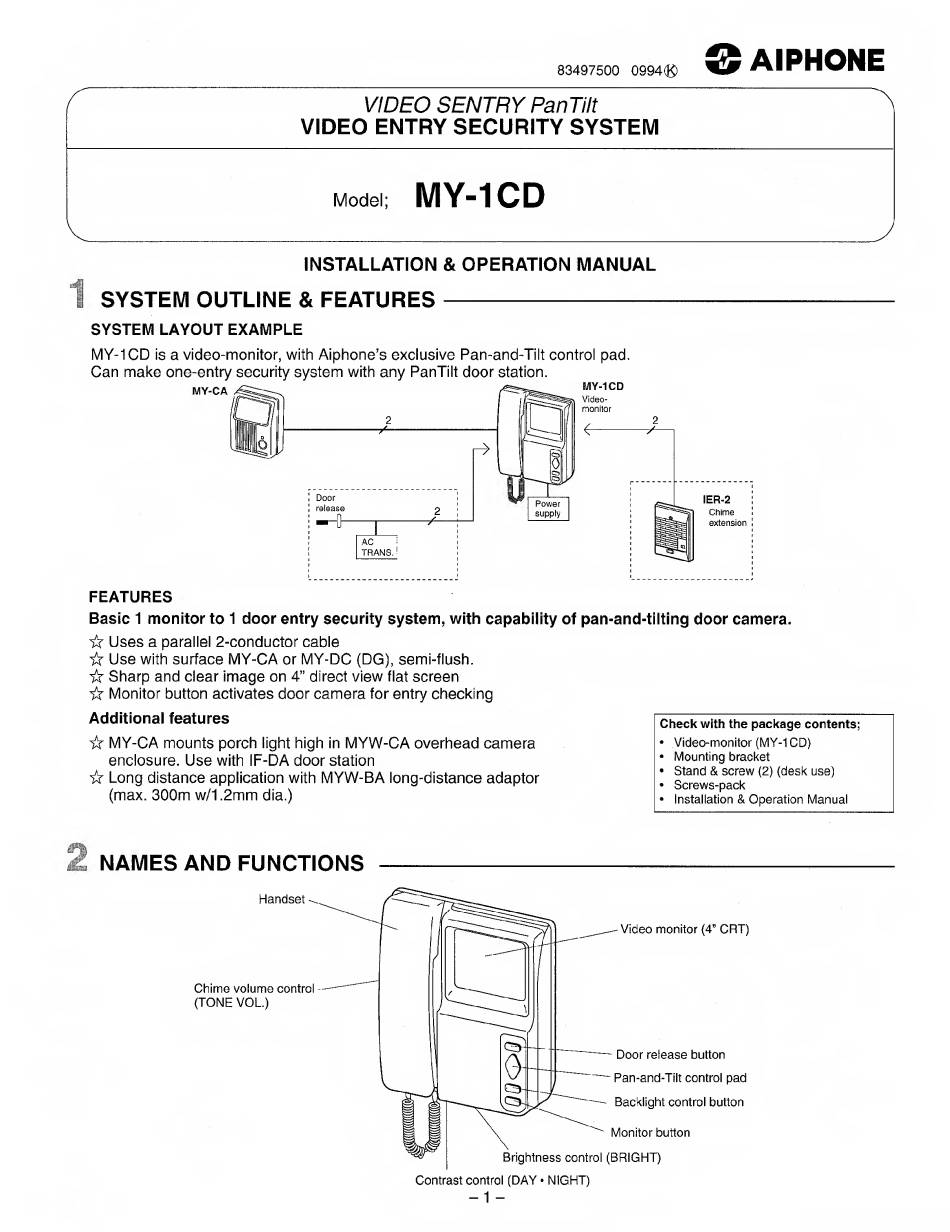

Aiphone MY-1CD Installation & Operation Manual

83497500 0994®
® AIPHONE
INSTALLATION & OPERATION MANUAL
SYSTEM OUTLINE & FEATURES-
SYSTEM LAYOUT EXAMPLE

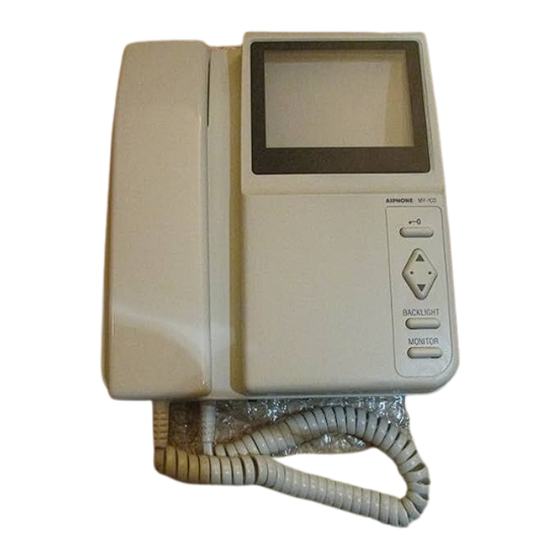

MY-1CD is a video-monitor, with Aiphone's exclusive Pan-and-Tilt controi pad.
Can make one-entry security system with any PanTilt door station.
^2
IER-2
Chime
extension
FEATURES
Basic 1 monitor to 1 door entry security system, with capability of pan-and-tilting door camera.
☆ Uses a parallel 2-conductor cable
☆ Use with surface MY-CA or MY-DC (DG), semi-flush.
☆ Sharp and clear image on 4" direct view flat screen
☆ Monitor button activates door camera for entry checking
Additional features
☆ MY-CA mounts porch light high in MYW-CA overhead camera
enclosure. Use with IF-DA door station
☆ Long distance application with MYW-BA long-distance adaptor
(max. 300m w/1.2mm dia.)
Check with the package contents;
• Video-monitor (MY-1 CD)
• Mounting bracket
• Stand & screw (2) (desk use)
• Screws-pack
• Installation & Operation Manual
2 NAMES AND FUNCTIONS
