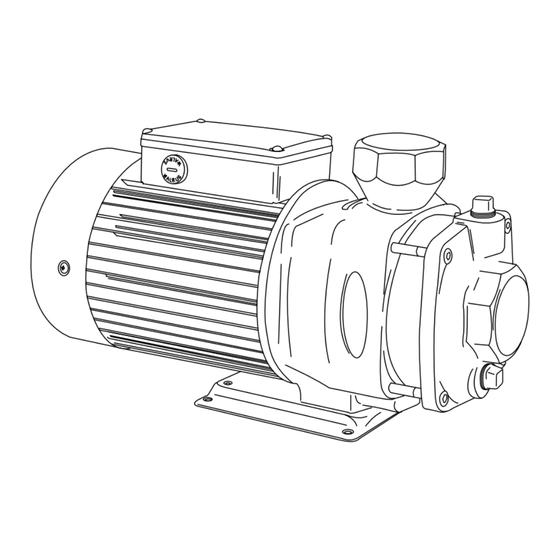

- Page 1 TPH Series Instruction Manual Multistage Centrifugal Pump Model : 2T / 4T / 8T / 12T / 25T To ensure safe and proper use, please read this instruction before operation. ISO 9001 Certified WALRUS AMERICA INC. NSF/ANSI 372...
-
Page 2: Ec Declaration Of Conformity
EC Declaration of Conformity Manufacturer: Walrus Pump Co., Ltd. Address: No.83-14, Dapiantou, Sanzhi Dist., New Taipei City 252, Taiwan Declare that the machinery described: Name: Water Pump Model: TPH Series Conform to the following directive: 2006/42/EC—Machinery directive 2014/35/EU—Low voltage directive 2014/30/EU—EMC (Electromagnetic compatibility) directive... -
Page 3: General Data
1. General Data: the pump for future maintenance 1.1 Applications and service. 2.1.3 Make sure the ambient temperature The TPH Series are modernly designed is below 104 F(40 C) and the flowing with quiet and high efficient operation liquid temperature does not exceed... - Page 4 2.1.6 Indoor: TO avoid your furniture housing to the required position. damage, do not install the pump on Replace the screws and tighten ceiling, carpet or any place close to securely. electrical appliance, and also must provide drain hole. 2.1.7 Outdoor: When the pump is installed outside, please provide a suitable cover to protect it from weather Fig.2...
- Page 5 2.6 All piping joints must be completely Priming plug tight. Leakage in suction piping may result in the loss of the suction capability. Leakage in discharge piping may cause the "cycling" of the pump. 2.7 Please do not allow any foreign objects (chewing gum, dirt, and sand Fig.4 etc.) fall into the pump or motor.
-
Page 6: Sound Pressure Level
current and check it with the nameplate value. If it exceeds the rated value, please reduce the lifting capacity or fully open the valve. 3.5 When pump is not in use for a period, it should be drained by removing the priming and drain plugs. -
Page 7: Wiring Diagram
6. Wiring Diagram 6.1 Single Phase (230V) 6.3 9 Wire, 3 Phase 1Ø 3Ø CONNECTING CONNECTING 230V 230V 460V 6.2 Single Phase (115/230V ) 6.4 12 Wire, 3 Phase 1Ø 3Ø CONNECTING CONNECTING 115V 230V 460V 230V C099D5400201 ~ 7 ~... -
Page 8: Fault Finding
7. Fault Finding Make sure to disconnect the power before attempting to diagnose any fault. Fault Cause 1. Check if electrical power source, fuse or circuit breaker failed. 2. Check if pump is locked up by sand, rust or any 1. - Page 9 8. Dimensions (in.) TPH 2/4T " Outlet NPT 1" 5.59 Inlet NPT 2T:1" 8.90 7.95 4T:1¼" (1Ø) 6.38 (3Ø) 3.54 4-Ø0.33 5.43 4.25 " 6.30 5.12 TPH 2T TPH 4T Model A(in.) B(in.) C(in.) D(in.) Model A(in.) B(in.) C(in.) D(in.) 12.01 1.81 2.91...
- Page 10 TPH 25T Outlet NPT 3" 9.65 Rp / " Inlet NPT3" 12.6 5.79 Rp / " 7.87 6.61 4-Ø0.47 11.02 7.48 TPH 25T Model A(in.) B(in.) C(in.) D(in.) TPH 25T 2K F 21.16 6.24 7.81 4.72 TPH 25T 3K F 23.52 8.60 10.18...
-
Page 11: Limited Warranty
Limited Warranty Products manufactured by Walrus Pumps Co (Walrus) are warranted to the first user only to be free of defects in material and workmanship for a period of 12 months from date of installation, but no more than 24 months from date of shipment. Walrus' liability under this warranty shall be limited to repairing or replacing at our election, without charge, FOB Walrus' distribution center or authorized service agent. - Page 12 walrusamerica.com WALRUS AMERICA INC.
