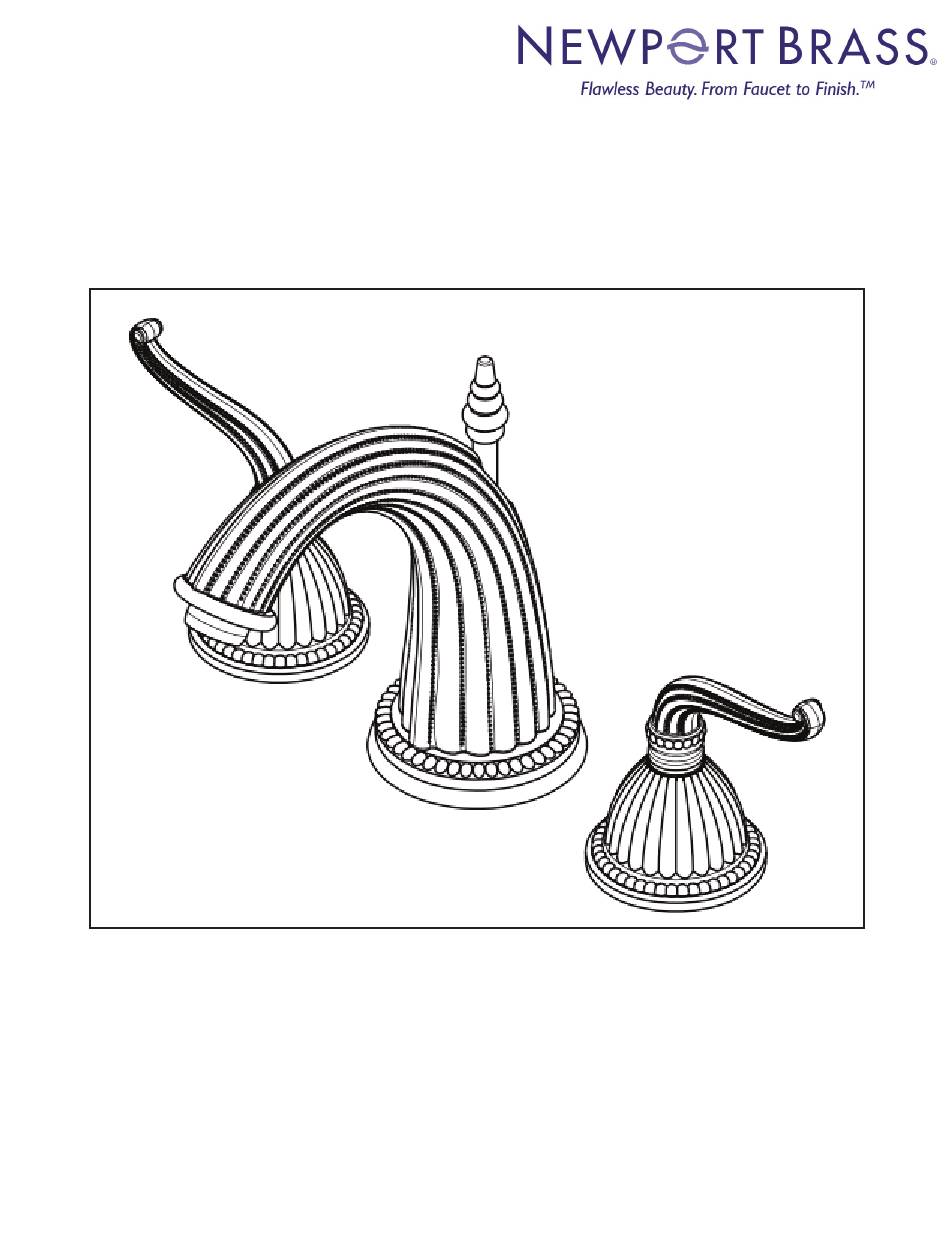

- Page 1 INSTALLATION INSTRUCTIONS WIDESPREAD LAVATORY SET MODEL No's: 1090, 880C Congratulations on the purchase of this Newport Brass product, an excellent choice, that will give you years of quality service and enhance the look and style of your home.
- Page 2 Recommended Installation by a Professional Plumbing Contractor Note: The use of petroleum base plumbers putty on our products will nullify the warranty. We recommend the use of clear silicone sealing materials. Recommended deck hole Ø1.25. 1.Insert HOSES (2), one at a time, and MOUNTING STUD (3) through sink hole, (apply putty or silicone to underside of SPOUT (1).
- Page 3 2-7/16” 1090 2-9/16” 880C Figure 1 Figure 2 1/2” NPSM Figure 3 Figure 4 Figure 5 Figure 6 (949)417-5207 NWP-1090 Santa Ana, Ca. 92705 08/27/202 Rev. A www.brasstech.com EN-4390...
