INSTALLATION INSTRUCTIONS

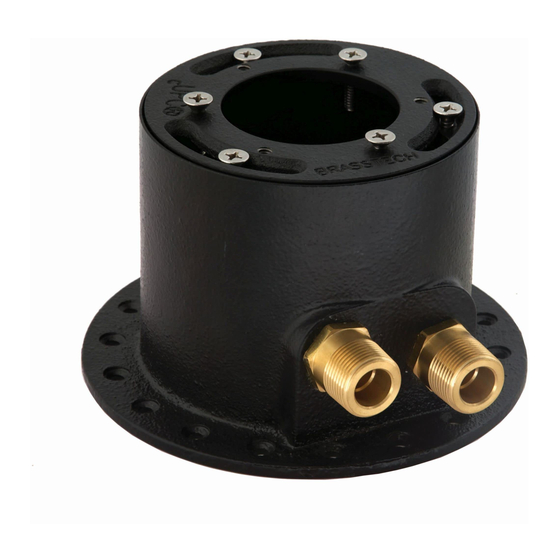

1-339 Floor Mount, Tub Filler Rough-In Kit
Congratulations on the purchase of
your Newport Brass product,
an excellent choice that will give you years
of quality service and enhance the look
and style of your home.
NWP 1‐339
2001 Carnegie Ave, Santa Ana, CA 92705
(866) 417‐5207
Advertisement
Table of Contents
Related Manuals for Newport Brass 1-339
Summary of Contents for Newport Brass 1-339
-

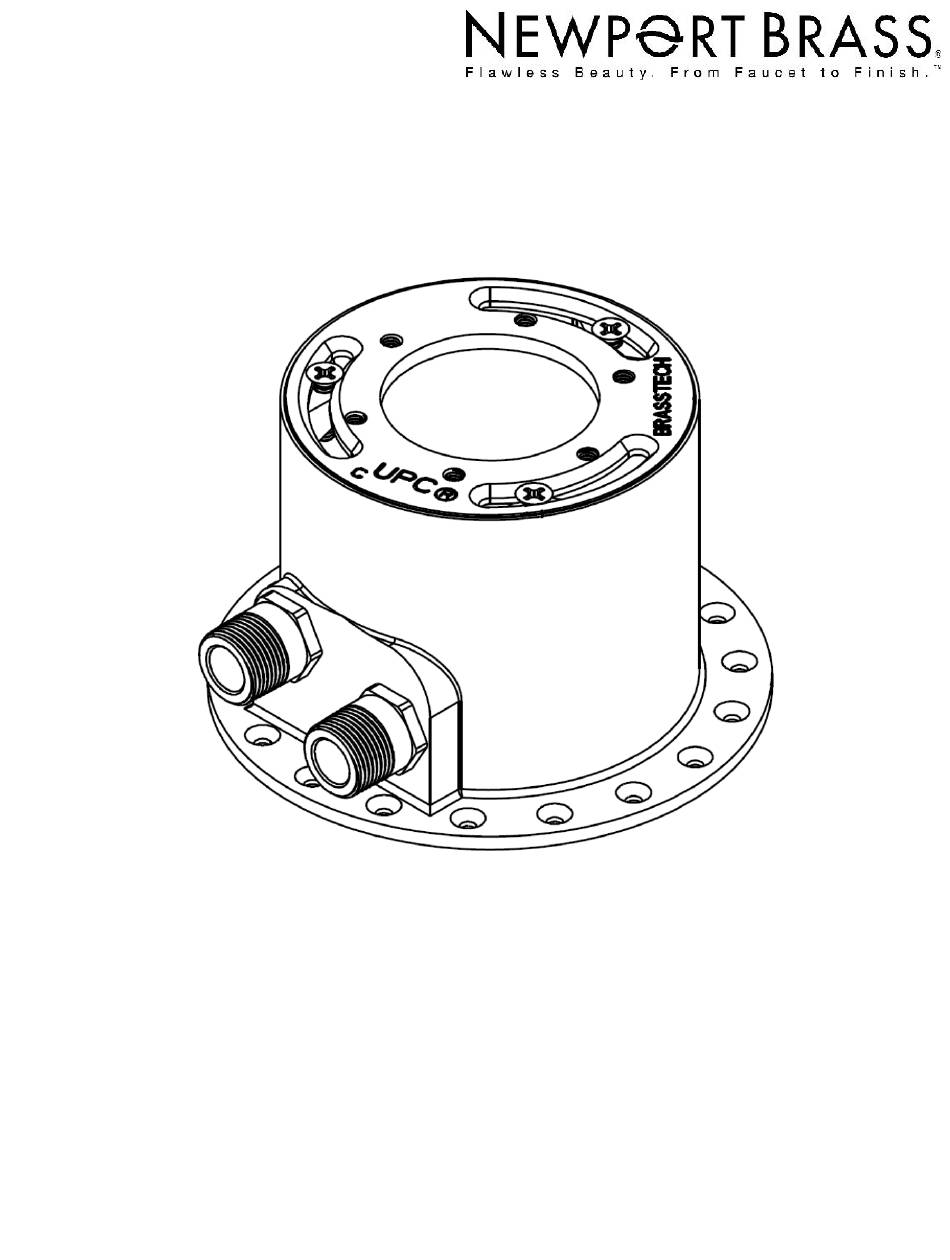

Page 1: Installation Instructions
INSTALLATION INSTRUCTIONS 1-339 Floor Mount, Tub Filler Rough-In Kit ... - Page 2 Recommended Installation by a Professional Plumbing Contractor Important Notes (please read before installing) Recommended water pressure: 45 to 80 psi Product is designed to allow for installation in accordance with all national and local plumbing and building codes. During floor mounting of this product, extra care should be taken while drilling into the floor to avoid dam - aging any water supply hoses or copper lines that may exist beneath the floor.
- Page 3 Installation Clearances: The installed location of the Rough-in Kit must be positioned in a way so that the Tub Filler mounting on top has enough clearance against its surroundings –as shown in Figure 1. 1” MIN 5‐7/8” Figure 1: Installation Clearances NWP-2040-4261 ...
- Page 4 Installation Instruction for Wood Joist Support Floor 1. Use a 2”X8” wood beam to create a Cross Support Brace as shown in Figure 2. The Cross Support Brace should be vertically positioned to allow the top surface of tub filler Rough-in Kit to be flushed or ¼”...
- Page 5 Installation Instruction for Concrete Floor 1. As shown in Figure 3, position the rough so that the top surface of tub filler Rough-in Kit is flush or ¼” higher than the Finished Floor. Orient the Inlet Fittings of the Rough-in Kit facing to the water supply source.
