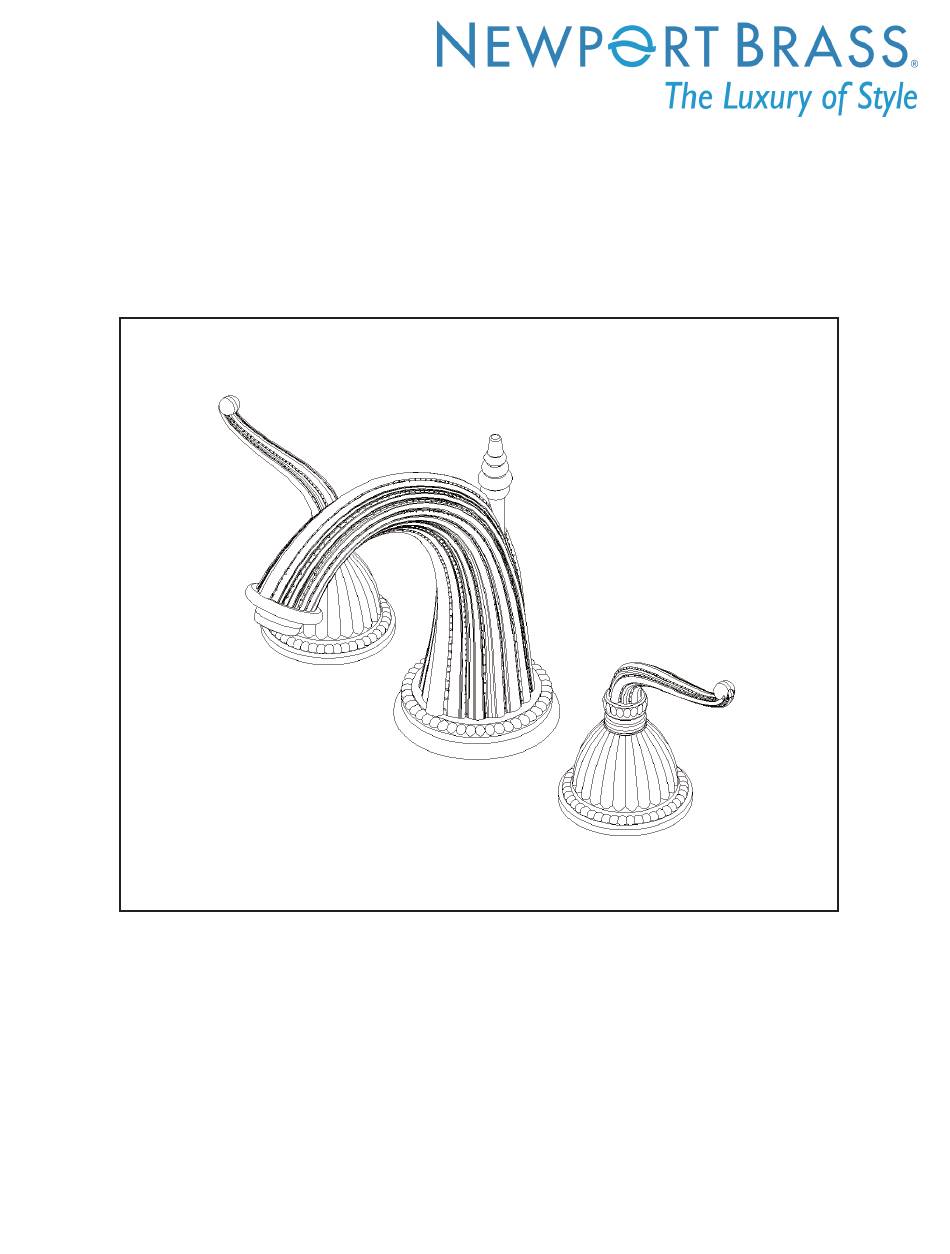

- Page 1 WIDESPREAD LAVATORY SET INSTALLATION INSTRUCTIONS MODEL No's: 1090, 880C Congratulations on the purchase of this Newport Brass product, an excellent choice, that will give you years of quality service and enhance the look and style of your home.
- Page 2 Adjust and secure with additional WASHER (6) and flange NUT (5) so that the top of valve is 2-7/16" (1090) & 2-9/16” (880C) above top of mounting surface. Before tightening down flange NUT (5), check HANDLE (15) alignment by placing onto Valve (7). Any adjustments for rotational alignment must be made to the valve BODY (7), not to the cartridge.
- Page 3 2-7/16”1090 2-9/16”880C 1/2” NPSM Figure 1 Figure 2 Figure 4 Figure 3 Figure 5 Figure 6 (949)417-5207 NWP-1090 Santa Ana, Ca. 92705 05/08/2014 www.brasstech.com...
