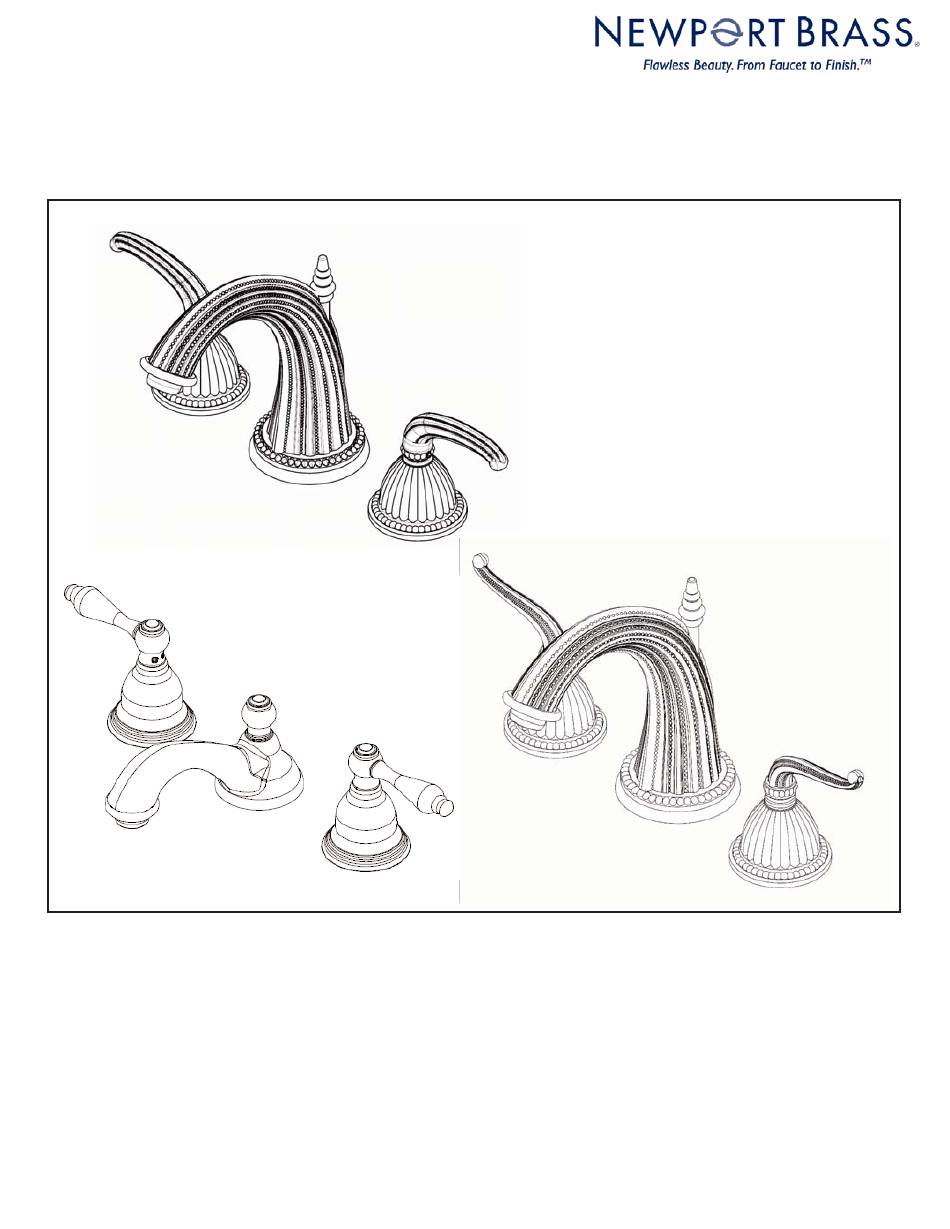

- Page 1 INSTALLATION INSTRUCTIONS WIDESPREAD LAVATORY SET Model Nos.: 850, 880C, 1090 Congratulations on the purchase of this Newport Brass product, an excellent choice, that will give you years of quality service and enhance the look and style of your home.
- Page 2 2. Place plastic flange NUT (1) and fiber WASHER (2) onto valve BODY (3). Insert valve BODY (3) through deck hole from underside of sink. Valve BODY (3) should extend: 2-3/8” for model 850; 2-7/16” for model 1090; 2-9/16” for model 880C, above mounting surface. If necessary adjust lower flange NUT (1). Place fiber WASHER (2a) and flange NUT (1a) onto upper position of valve BODY (3).
- Page 3 Figure 2 Figure 1 Figure 4 Figure 3 (949)417-5207 NWP-850 Santa Ana, Ca. 92705 5/8/2014 www.brasstech.com...
