iPRO Lite Series
Programmable Controller
Rev. 2.2
Jun 29
, 2022
th

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dixell iPRO Lite Series and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson Dixell iPRO Lite Series

Summary of Contents for Emerson Dixell iPRO Lite Series

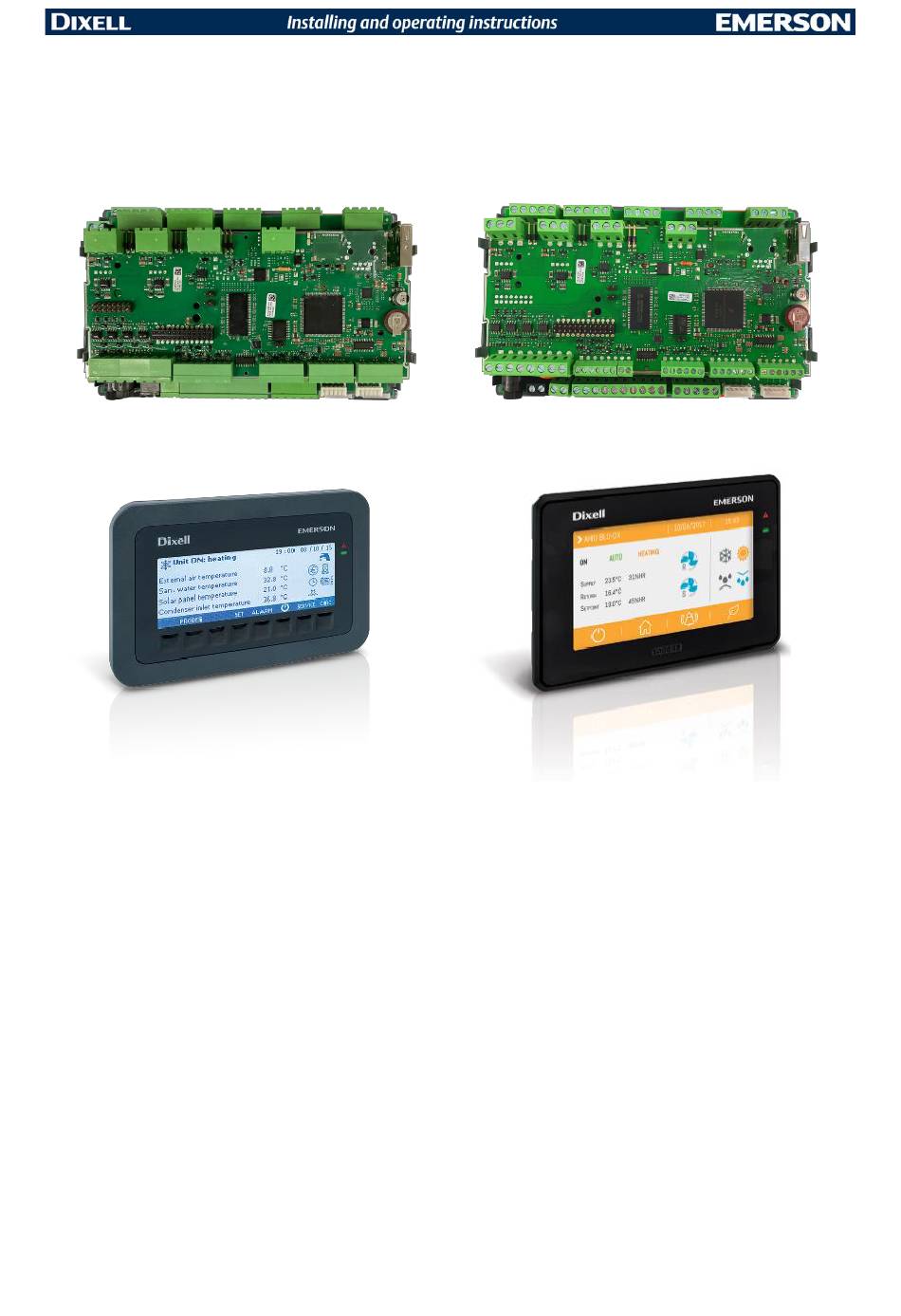

  • Page 1 iPRO Lite Series Programmable Controller Rev. 2.2 Jun 29 , 2022...
  • Page 2 For correct installation and safe use of the product, read this manual carefully IP SETTINGS: Default IP address 192.168.0.250 Netmask 255.255.255.0 Network 192.168.0.0 Gateway 192.168.0.2 DNS1 192.168.0.254 DNS2 8.8.8.8 Emerson Classification: Internal...

  • Page 3: Table Of Contents

    Analog Output ..................................... 14 3.6.4 Digital Output ...................................... 14 3.6.5 EEV Output ......................................15 HMI Connction ....................................... 15 Connect with IPX ......................................15 Connection RS485 ......................................16 3.10 Connect with USB ......................................16 3.10.1 Stucture of USB Key ................................... 16 Emerson Classification: Internal...

  • Page 4: General

    1. General iPRO Lite is a family of programmable controllers which developed by Emerson to be used in multiple applcations including air conditioning, refrigeration sector or for more general applications where it is important to have a freely programmable platform with great availability of serial communications.
  • Page 5 13 August 2005 and that it must be treated with separate collection. • In the event of incorrect disposal, penalties may be applied as established by current local waste disposal laws. Emerson 1598070001 iPRO Lite GB 20220629 Classification:...

  • Page 6: Versions Of The Programmable Controllers

    Removal: Lever using a screwdriver on the rear tabs to release them from the DIN rail, the tabs are held in the locked position by return springs. Assembly And Demisions iPRO Lite series all are 10DIN, no front cover (optional), with buttom cover below. Emerson 1598070001 iPRO Lite GB 20220629 Classification: Internal...

  • Page 7: General Information

    Do not clean the device with corrosive chemicals, solvents or aggressive detergents. • The device must not be used in applications other than those specified in this document. • The device must never be held in the hand during use. Emerson 1598070001 iPRO Lite GB 20220629 Classification: Internal...

  • Page 8: Connection Schemes

    Connection Schemes For each element of the iPRO Lite series, connections and related descriptions are represented and described below. IPLT106K / IPLT206K - Extral Small 1xx00 1xx10 Emerson 1598070001 iPRO Lite GB 20220629 Classification: Internal...
  • Page 9 IPLT109K / IPLT209K - Small 1xx00 1xx10 Emerson 1598070001 iPRO Lite GB 20220629 Classification: Internal...
  • Page 10 IPLT112K / IPLT212K -Medium 1xx00 1xx10 Emerson 1598070001 iPRO Lite GB 20220629 Classification: Internal...
  • Page 11 COM – Common for outputs RL05. Maximum current 15A √ √ √ RL05 – Relay normally open contact √ √ √ RL10 – Relay normally open contact √ COM – Common for outputs RL10. Maximum current 15A √ Emerson 1598070001 iPRO Lite GB 20220629 Classification: Internal...
  • Page 12 √ √ √ √ √ √ GND Port B √ √ √ Port B - RS485 master/slave connection (+) √ √ √ Port B - RS485 master/slave connection (-) √ √ √ Emerson 1598070001 iPRO Lite GB 20220629 Classification: Internal...

  • Page 13: Electrical Power Supply

    Any inputs that are powered with a voltage that differs from that supplied by the device (+12V or +5V) must be powered separately with another transformer (do not use the same secondary of the controller's Notes: power) in order to prevent the inputs from malfunctioning or being damaged. Emerson 1598070001 iPRO Lite GB 20220629 Classification: Internal...

  • Page 14: Digital Input

    Relays with switch contact Type B 5A(250Vac) SPST Relays with normally open contact Type C 16A(250Vac) SPST Relays with normally open contact Type D 1A(12 - 250Vac) SSR - only in AC load Emerson 1598070001 iPRO Lite GB 20220629 Classification: Internal...

  • Page 15: Eev Output

    Connect with IPX The iPRO Lite be allowed to connect to IPX206D/IPX215D through the port of HIM CONNECTION. IPX215D connect with IPLT Be careful the BIOS must be the version 2021031800, or newer. Emerson 1598070001 iPRO Lite GB 20220629 Classification: Internal...

  • Page 16: Connection Rs485

    USB port. For iPRO Lite controllers without an Ethernet port, the USB-Ethernet converter can be used to execute network configuration or debugging. The recommended USB-Ethernet converter is DLINK EDUB- 100. Other products of the same specification may be used, but not fully verified by Emerson, it may cause unknown problems. 3.10.1 Stucture of USB Key If necessary, you can update the application via USB with a properly prepared key.
  • Page 17 BIOS. iPRO Lite with different IPs will only update the programs in the same folder as your own IP, so you can store multiple IP- named folders in the U disk. Emerson 1598070001 iPRO Lite GB 20220629 Classification:...

This manual is also suitable for:

Dixell ipro lite iplt106kDixell ipro lite iplt206kDixell ipro lite iplt109kDixell ipro lite iplt209kDixell ipro lite iplt112kDixell ipro lite iplt212k
