E Schaudt GmbH, Elektrotechnik und Apparatebau, Planckstraße 8, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de
8310393 BA / EN

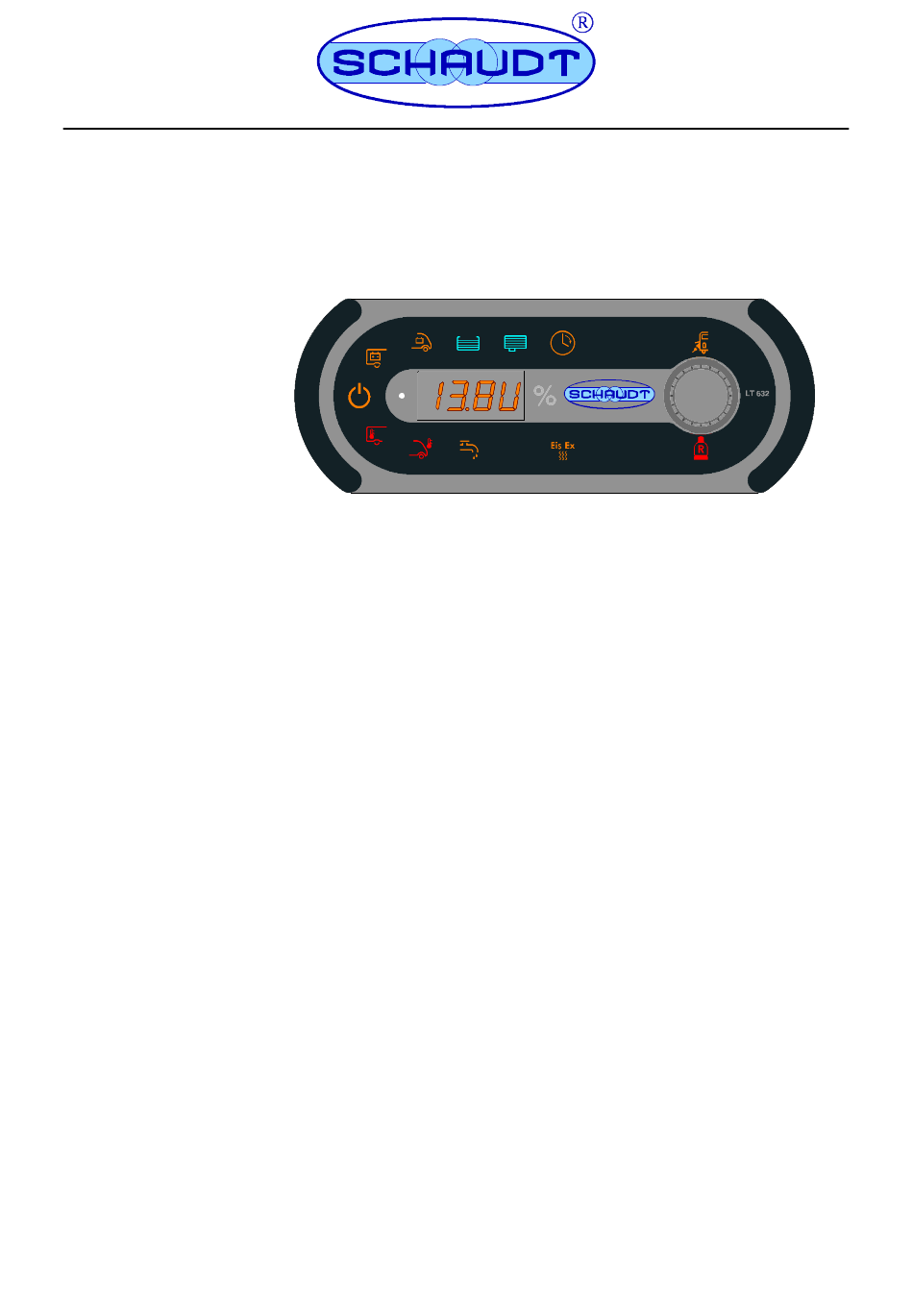

Instruction Manual

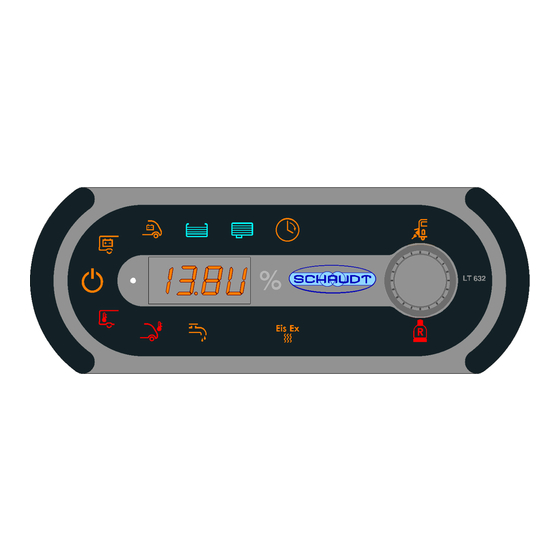

LT 632 B Control Panel
Table of contents
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1
3.2
to the different consumers
3.3
3.4
3.5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.6
3.7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
4.1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
3
3
. . . . . .
3
4
4
5
5
7
7
8
8
9
10
10
10
. . . . . . . . . . . . . . . . . .
10
Date: 26.04.2016
Advertisement
Table of Contents
Related Manuals for Schaudt LT 632 B
Summary of Contents for Schaudt LT 632 B
-
Page 1: Table Of Contents
....E Schaudt GmbH, Elektrotechnik und Apparatebau, Planckstraße 8, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de 8310393 BA / EN... -
Page 2: Purpose
Instruction Manual for LT 632 B Purpose The LT 632 B control panel is the central control and display device for the SDTBUS 630-controlled 12V supply and charging system within the vehicle. These operating instructions contain important information on the safe operation of devices from Schaudt and should be kept in the vehicle at all times. -
Page 3: Layout
8 ”Inside temperature” symbol Operation The only control on the LT 632 B is a rotary/press-in encoder. Rotate and press it in to select displays and run switch functions. Switching on and off the 12V supply for the leisure area The 12V leisure area supply is connected via the encoder. -
Page 4: Switching On And Off The 12V Supply
The ”EisEx” symbol shows whether the ”EisEx” supply voltage is cur- rently switched on or off. After about 10 seconds, the LT 632 B switches to idle mode and the status is shown by the illuminated symbol. When the 12V supply to the leisure area is switched off, the power supply for the water pump is also switched off. -
Page 5: Remote Gas Switch
Instruction Manual for LT 632 B Displays 3.4.1 Mains indicator The ”Mains indicator” symbol lights up when 230V mains voltage is being applied to the 12V charging system. The batteries are charged. The display is not dependent on whether the 12V supply for the leisure area is switched on or not (”12V ON”). - Page 6 Instruction Manual for LT 632 B Battery operation Mobile operation Mains operation Batteryvoltag Batteryvoltag Vehicle stationary, no Vehicle moving Vehicle stationary, 230V connection 230V connection 11.5V to 13.2V Normal range No charging by the No charging by the EBL alternator ...
-
Page 7: Outside Temperature
Instruction Manual for LT 632 B 3.4.4 Gas reserve The LED in the ”Gas cylinder” symbol lights up when the reserve gas cylinder is being used. Inside and outside temperatures Turn the encoder until the ”Inside Temperature”/”Outside Temperature” symbol lights up. -
Page 8: Alarms And Faults
(see above). itself. Also see the EBL ... electroblock instructions. . When the LT 632 B control pa- Switch off all 12V consumers. nel is switched on: Charge the battery: -- The ”Leisure Battery” symbol -- Start engine flashes. -
Page 9: Faults
If fuses are blown: Refer to the instruction manual for the relevant EBL... electroblock for fuses information on voltage distribution and fusing. . When it is not possible to rectify a fault based on the following table, please contact Schaudt customer service (for address, see Page 12). Fault... -
Page 10: Technical Details
CE marked Maintenance The LT 632 B control panel requires no maintenance. Cleaning Clean the front panel with a soft, slightly damp cloth and a mild detergent. Never use spirit, thinners or similar substances. Do not allow fluid to penetrate into the control panel. - Page 11 The leisure battery capacity must be stored in the LT 632 B control panel. The capacity of the leisure battery installed at the factory is pre-set. If another battery is in- stalled at a later time (e.g. with a greater rating), this value must be stored in the LT 632 B as follows: ...
-
Page 12: Fault Report

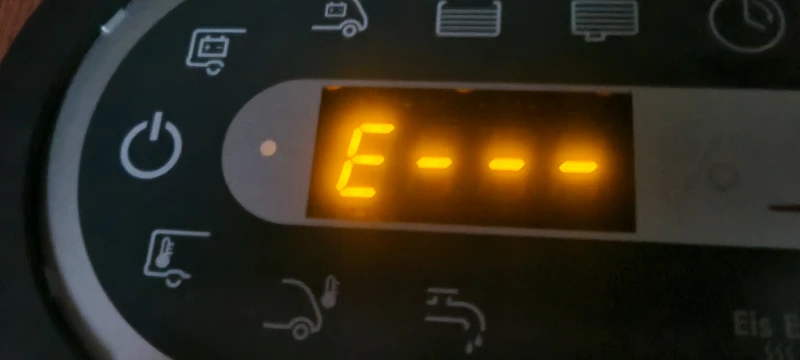

Instruction Manual for LT 632 B Appendix Customer service Customer Schaudt GmbH, Elektrotechnik & Apparatebau service Planckstraße 8 address D-88677 Markdorf Phone: +49 7544 9577-16 Email: kundendienst@schaudt-gmbh.de Office hours Mon to Thurs 08.00 -- 12.00, 13.00 -- 16.00 08.00 -- 12.00... - Page 13 Instruction Manual for LT 632 B Error messages on the LT 632 B The blowing of fuses, etc. are sent to the LT 632 B as ERROR messages. Format of error messages: Exxy where E stands for Error xx is the address (priority) of the module on Schaudt Bus SDT630 y is the type of error e.g.: E021 EBL ...
- Page 14 Instruction Manual for LT 632 B Code Device Meaning SW Vers. higher E073 HM630 BUS and/or power undervoltage V. 1.00 E080 AM631-1 No BUS communication (complete failure) V. 1.00 E081 AM631-1 Fuse blown, A1 output (15A) V. 1.00 E082 AM631-1 Fuse blown, A2 output (15A) V.
- Page 15 Instruction Manual for LT 632 B Code Device Meaning SW Vers. higher E280 LAS1218BUS-1 No BUS communication (complete failure) V. 3.00 E281 LAS1218BUS-1 Battery temperature sensor short-circuit V. 3.00 E282 LAS1218BUS-1 Battery temperature sensor cable break V. 3.00 E290 LAS1218BUS-2 No BUS communication (complete failure) V.
-
Page 16: Wiring Diagram
Instruction Manual for LT 632 B Wiring diagram Date: 26.04.2016 8310393 BA / EN...
Need help?
Do you have a question about the LT 632 B and is the answer not in the manual?
Questions and answers
Fikk for lav spenning på bodelsbatteriet og det koblet seg ut.Har sett inn nytt batteri men lyset i despleiey for 220v lyser ikke når eg kobler til strøm.ka kan være galt har feilmelding E020
The E020 error is not listed in the provided error codes, so its exact meaning is unclear. However, based on the context, if the Schaudt LT 632 B display does not light up when connected to 220V after replacing a low voltage battery, possible issues include:
1. The leisure battery may still be deeply discharged or damaged.
2. The 230V mains connection may not be supplying power.
3. The EBL (electroblock) may not be charging the battery or distributing power.
4. A fuse may be blown, preventing power from reaching the display or control unit.
5. The system may have shut down due to undervoltage protection.
It is recommended to check battery voltage (off-load), confirm 230V supply, and inspect fuses and connections.
This answer is automatically generated
@Mr. Anderson vist de er alternativ5.va kan vi gjøre for å få liv i systemet i gjenn? Er de en måte å restarte displeiet på?
Fikk for lav spenning på fritidsbatteriet og det koblet seg ut.Har sett inn nytt batteri ,alt fungerer ,men feilmelding u-- blinker. Klarer ikke stille klokken på displayet ,alt ann fungerer I starten kom der feilmelding på batterisensor E22
