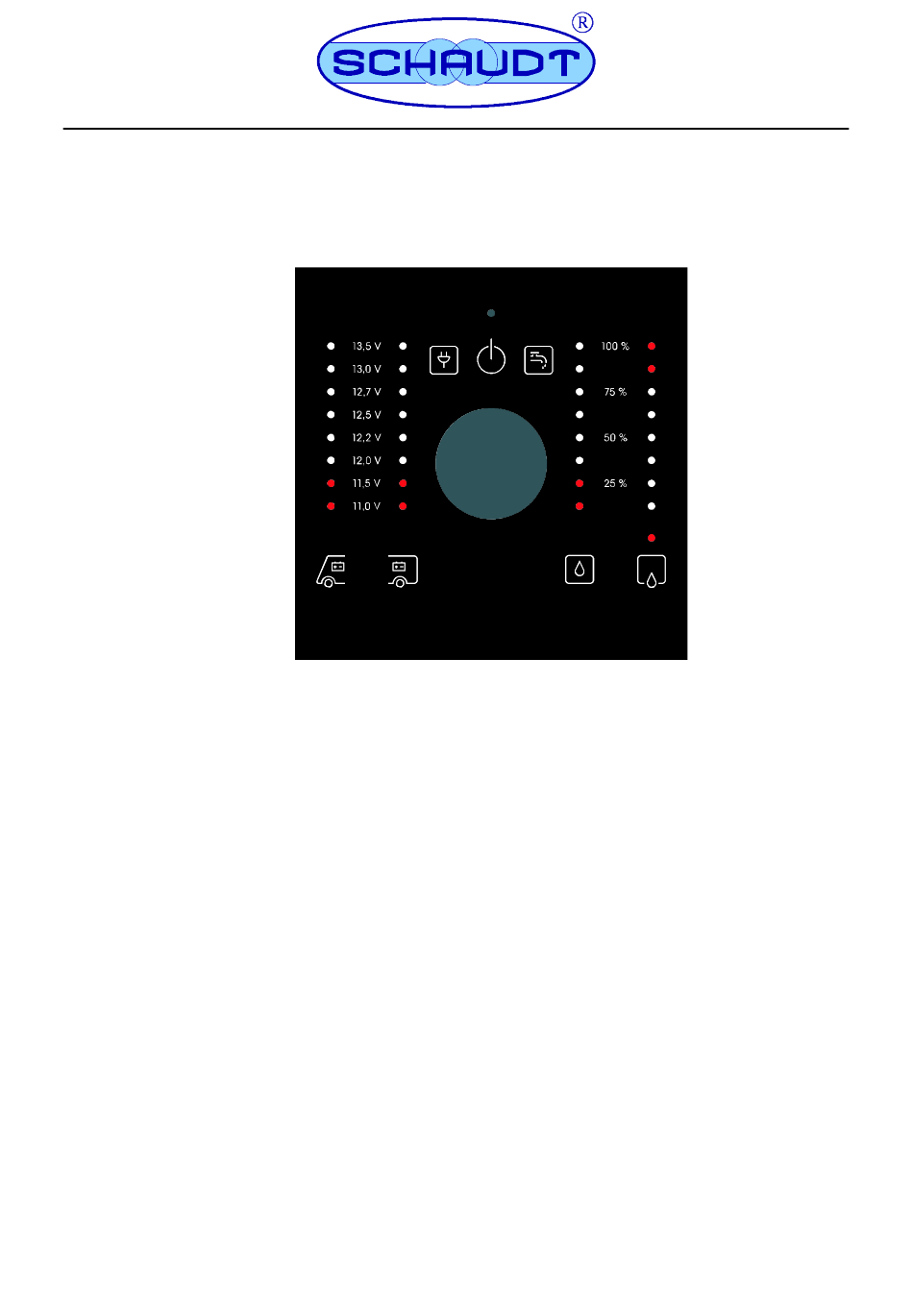

E Schaudt GmbH, Elektrotechnik und Apparatebau, Planckstraße 8, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de
8310027 BA / EN
Instruction Manual
LT 52 Control Panel

Table of contents

1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1
3.2
of different consumers
3.3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4
4
4.1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
3
3
. . . . . .
3
4
5
7
8
8
9
10
10
10
Date: 01.03.2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LT 52 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Schaudt LT 52

Summary of Contents for Schaudt LT 52

  • Page 1: Table Of Contents

    ..........E Schaudt GmbH, Elektrotechnik und Apparatebau, Planckstraße 8, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de 8310027 BA / EN Date: 01.03.2018...

  • Page 2: Purpose

    Instruction Manual for LT 52 Control Panel Purpose The LT 52 control panel is the central control and display device for the 12V supply and charging system within the vehicle. These operating instructions contain important information on the safe operation of devices from Schaudt and should be kept in the vehicle at all times.

  • Page 3: Layout

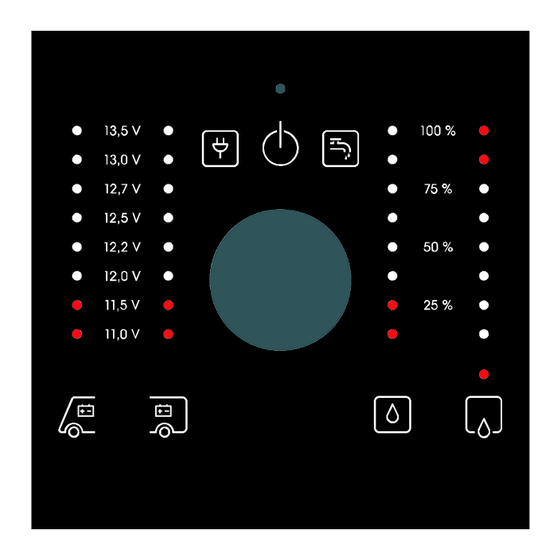

    12 ”Waste water tank” symbol Operation The only control on the LT 52 is a rotary/press-in encoder. Rotate and press it in to select displays and run switch functions. Switching on and off the 12V supply for the leisure area The 12V leisure area supply is connected via the encoder.

  • Page 4: Switching On And Off The 12V Supply

    The 12V supply for the leisure area must be switched on for these functions (see section 3.1). The LT 52 switches to idle mode about 10 seconds after an operation. Lighting up of the re- levant symbol or LED then indicates the switch states.

  • Page 5: Displays

    Instruction Manual for LT 52 Control Panel Displays 3.3.1 Mains indicator The ”Mains indicator” symbol lights up when 230V mains voltage is being applied to the 12V charging system. The batteries are charged. The display is only shown when the 12V supply for the leisure area is switched on (”12V ON”).
  • Page 6 Instruction Manual for LT 52 Control Panel The values specified above apply for running operation, not for the off-load voltage (see be- low). Off-load Apart from displaying the battery capacity (see section 3.3.2), measuring the off-load voltage voltage is a simple and effective method of checking the condition of the battery. Off-load voltage is understood to be the voltage of the charged battery in a passive state, with no current being supplied or drawn.

  • Page 7: Shutting Down

    Devices charging the leisure battery continue to be connected (such as a solar regula- tor) The LT 52 control panel is operated at different supply devices. These are the following de- pending on vehicle model (motorhome or caravan): For caravans:...

  • Page 8: Alarms And Faults

    Instruction Manual for LT 52 Control Panel Alarms and faults Alarms It is best to carry out checks in the morning before 12V consumers are switched on. Alarm Possible cause Remedy The LT 52 LED panel Risk of draining the leisure bat- The battery monitor in electro- switches off by itself.

  • Page 9: Faults

    If fuses are blown: Refer to the instruction manual for the relevant EBL... electroblock for fuses information on voltage distribution and fusing. . When it is not possible to rectify a fault based on the following table, please contact Schaudt customer service (for address, see Page 11). Date: 01.03.2018...

  • Page 10: Technical Details

    CE marked Maintenance The LT 52 control panel requires no maintenance. Cleaning Clean the front plate with a soft, slightly damp cloth and a mild detergent. Never use spirit, thinners or similar substances. Do not allow fluid to penetrate into the control panel.
  • Page 11 Instruction Manual for LT 52 Control Panel Appendix Customer service Customer Schaudt GmbH, Elektrotechnik & Apparatebau service Planckstraße 8 address D-88677 Markdorf Phone: +49 7544 9577-16 Email: kundendienst@schaudt-gmbh.de Web: www.schaudt-gmbh.de Send in Returning a faulty device: device  Complete and enclose the fault report, see Appendix B.
  • Page 12 Instruction Manual for LT 52 Control Panel Wiring diagram Rear side at top Tank heater 12V Contr. (EBL 208, CSV 410 --- 2) +Bel. (EBL 226) + Starter battery + Leisure battery sensor S --- pump --- Leisure battery sensor...
