831.416 BA / EN
Instruction Manual
MP 22-T Display Panel

Table of contents

1
1.1
1.2
2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2
3.3
3.4
3.5
3.6
4
5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
2
2
2
3
3
4
4
4
9
9
. . . . . . . . . . .
12
13
14
14
15
Date: 28.05.2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP 22-T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Schaudt MP 22-T

Summary of Contents for Schaudt MP 22-T

  • Page 1: Table Of Contents

    ..........E Schaudt GmbH, Elektrotechnik und Apparatebau, Planckstraße 8, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de 831.416 BA / EN...

  • Page 2: Safety Information

    Instruction Manual MP 22-T Display Panel Safety Information Meaning of safety symbols DANGER! Failure to heed this warning may result in death or serious injury. WARNING! Failure to heed this warning may result in personal injuries. ATTENTION! Failure to heed this warning may result in damage to the device or connec- ted consumers.

  • Page 3: Introduction

    Introduction This instruction manual contains important information on the safe operation of equipment supplied by Schaudt. Make sure you read and follow the safety instructions provided. The instruction manual should be kept in the vehicle at all times. Ensure that other users are made aware of the safety regulations.

  • Page 4: Starting Up

    The indicator LED goes out. The 12V living area supply is switched off. If the MP 22-T display panel will not switch on, this is because: If, after pressing the ”12V On/Off” button, the ”11.0V” LED and symbol ”V” flash, the battery voltage of the living area battery is low. See sec- tion 3.5.1.

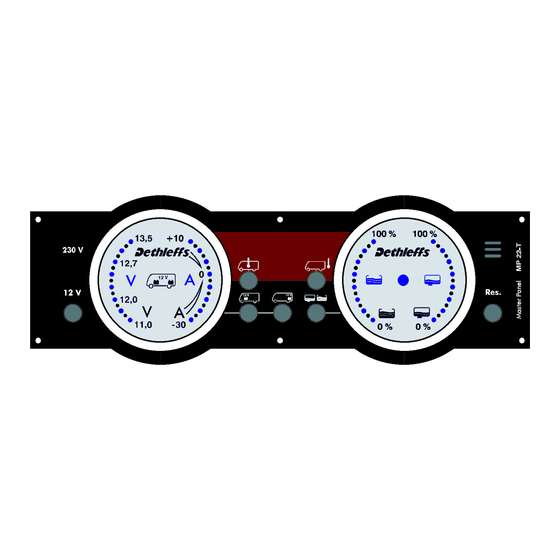

  • Page 5 Instruction Manual MP 22-T Display Panel Battery and tank display The MP 22-T display panel must be switched on to be able to display battery and tank values. Turn on MP 22-T display panel (see section 3.2). " 3.3.1 Battery voltages and current of living area battery Bild 2 Battery display - - example: Living area battery voltage 12.2V...
  • Page 6 Instruction Manual MP 22-T Display Panel Blue LED 1. LED 2. LED 3. LED 4. LED 5. LED 6. LED 7. LED 8. LED Battery discharge with: Battery charge with: > 30A >10A >3A >1A approx. >1A >3A >10A Current The following table shows the interpretation of the current displayed.
  • Page 7 Instruction Manual MP 22-T Display Panel Take the measurement several hours after the last charging. In the mean- time, no significant load should have been placed on the battery, which means no current should have been drawn from it. There is a risk of total discharge if the off-load voltage of the battery is 12.0V or less.
  • Page 8 Instruction Manual MP 22-T Display Panel 3.3.3 Tank fill levels Bild 5 Tank display - - example: Water tank 50% full, wastewater tank 25% full Fill level of water and Press the ”Tanks” button once (underneath the two tank symbols, Fig. 5, "...

  • Page 9: Switching On And Off An Additional Device

    Please refer to the instruction manual of the motorhome manufacturer for which function the manufacturer has implemented on output ”Reserve” (optional). The 12V supply ”Reserve” is enabled with the ”Reserve” button. Turn on the MP 22-T display panel (see section 3.2). " Press the ”Reserve” button once. "...
  • Page 10 Instruction Manual MP 22-T Display Panel Alarm Possible cause Remedy When MP 22-T display Switch off all 12V panel is switched on consumers. (when ”Living Area Battery” voltage is displayed, the ”11V” LED flashes): -- Risk of total discharge of the living area battery.
  • Page 11 Please note that the warranty will become void if incorrect repair work is car- ried out. Schaudt GmbH shall not accept liability for any damages resulting from such repairs.

  • Page 12: Shutting Down And Starting Up After Shutting Down

    Instruction Manual MP 22-T Display Panel Fault Possible cause Remedy The mains indicator does The mains connection is Check the mains supply not illuminate although the dead. (e.g. camping site). 230V 230V mains supply is The power cutout to the Connect power cutout.

  • Page 13: Application And Functions In Detail

    " Application and functions in detail The MP 22-T display panel is the central control panel for the EBL ... elec- trobloc which powers all 12V consumers in the vehicle’s electrical system. It is usually installed in an easily accessible place high up near the door of the motorhome/caravan.

  • Page 14: Design

    Design The display panel is flush-mounted in a cabinet or wall (see Fig 1, page 3). Maintenance The MP 22-T display panel requires no maintenance. Cleaning Clean the front panel with a soft, slightly damp cloth and a mild detergent.

  • Page 15: Appendix

    Instruction Manual MP 22-T Display Panel Appendix EC Declaration of Conformity Schaudt GmbH hereby confirms the design of the MP 22-T display panel complies with the relevant regulations. The device has been registered for e1 testing. Manufacturer Schaudt GmbH, Elektrotechnik & Apparatebau...
  • Page 16 Instruction Manual MP 22-T Display Panel Fault report In the event of damage, please return the defective device together with the completed fault report to the manufacturer. Device type: _______________________ Article no.: _______________________ Vehicle: Manufacturer: _______________________ Model: _______________________ Own installation?
  • Page 17 Instruction Manual MP 22-T Display Panel Block diagram/connection diagram X1 Lumberg MSFQ 6-way on water tank full Base water tank n.c. X2 Lumberg MSFQ 5-way on wastewater tank full Base wastewater tank X3 Lumberg MSFQ 12-way on EBL ... Main switch relay 1 Off...
