General Installation, Operation and Maintenance Instructions For Aerovent Products
Installation
1. Check for possible damage in shipment to roof ventilator.
2. Assemble stack cap section, fan and curb cap.
3. Caulk between flanges of damper section, fan section

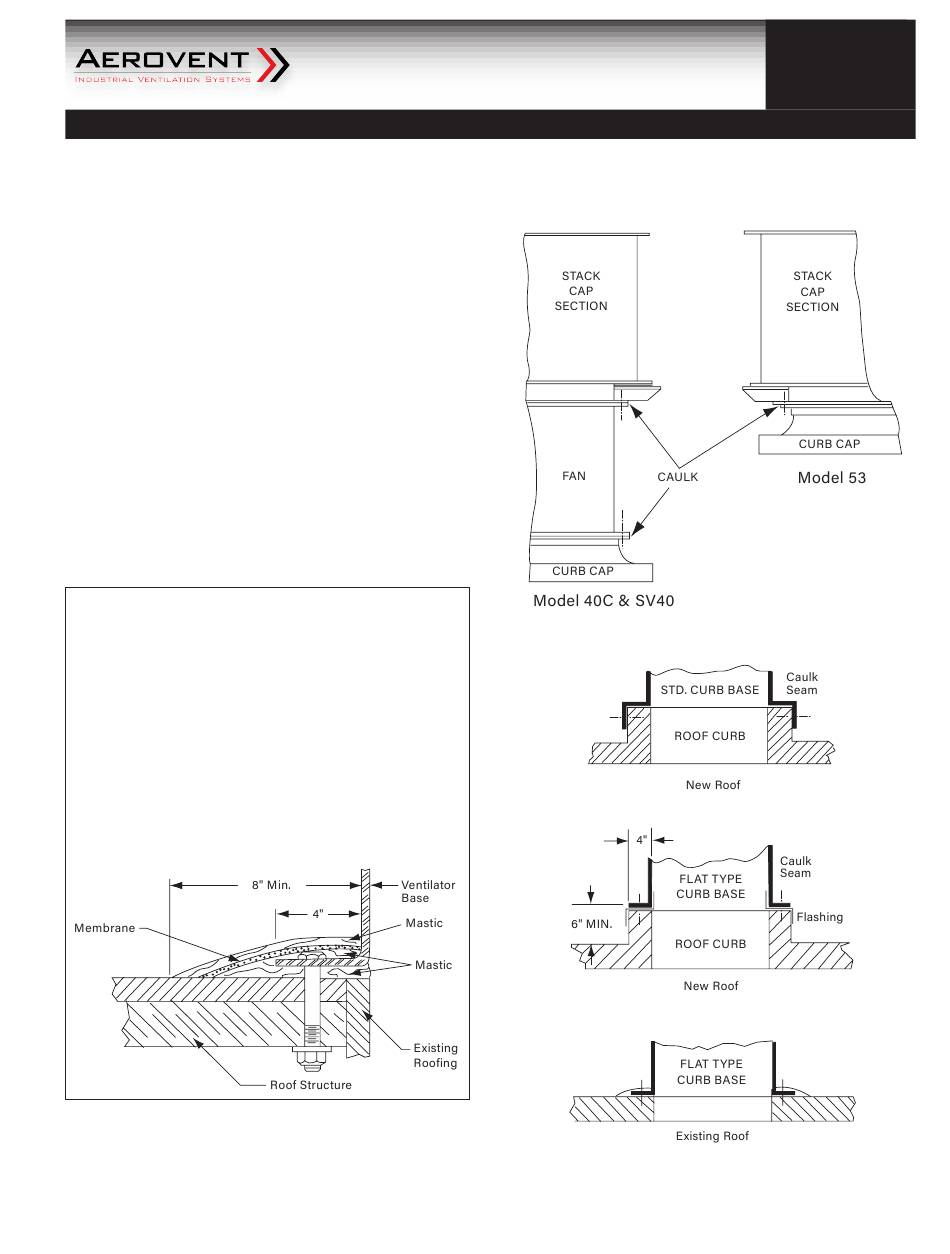

and curb cap (see illustration).
4. Install assembled ventilator onto roof curb. Secure
ventilator to curb with bolts (see illustration).
5. Check impeller for proper rotation.
6. Make certain dampers operate smoothly and are free
from obstruction.
Detail of Mounting
Flat Type Curb Cap on Existing Roof
Use Hydro Shield and heavy-duty glass membrane
— Addex Corporation (or equal).
1. Set ventilator curb cap in mastic.
2. Apply mastic over curb cap flange.
3. Work membrane into mastic.
4. Trowel mastic over membrane and work in
Model 53, 40C and
SV40 Roof Ventilators
.
©2007 – 2024 Twin City Fan Companies, Ltd.
IM-120
April 2007
Field Procedure: Caulk ventilator
at locations where indicated to
prevent leakage.
