Aerovent BP Installation, Operation And Maintenance Instructions

IM-110
Panel and Ring Fans
June 1997
General Installation, Operation and Maintenance Instructions For Aerovent Products
Throughout this manual, there are a number of HAZARD WARNINGS that must be read and adhered to in order to
prevent possible personal injury and/or damage to equipment. The signal word "CAUTION" is used to indicate the
severity of a hazard and is preceded by the safety alert symbol.
CAUTION
Used when minor or moderate injury or product / equipment damage MAY result from misuse or failure to follow
specific instructions.
It is the responsibility of all personnel involved in installation, operation and maintenance to fully understand the
Caution procedures by which hazards are to be avoided.

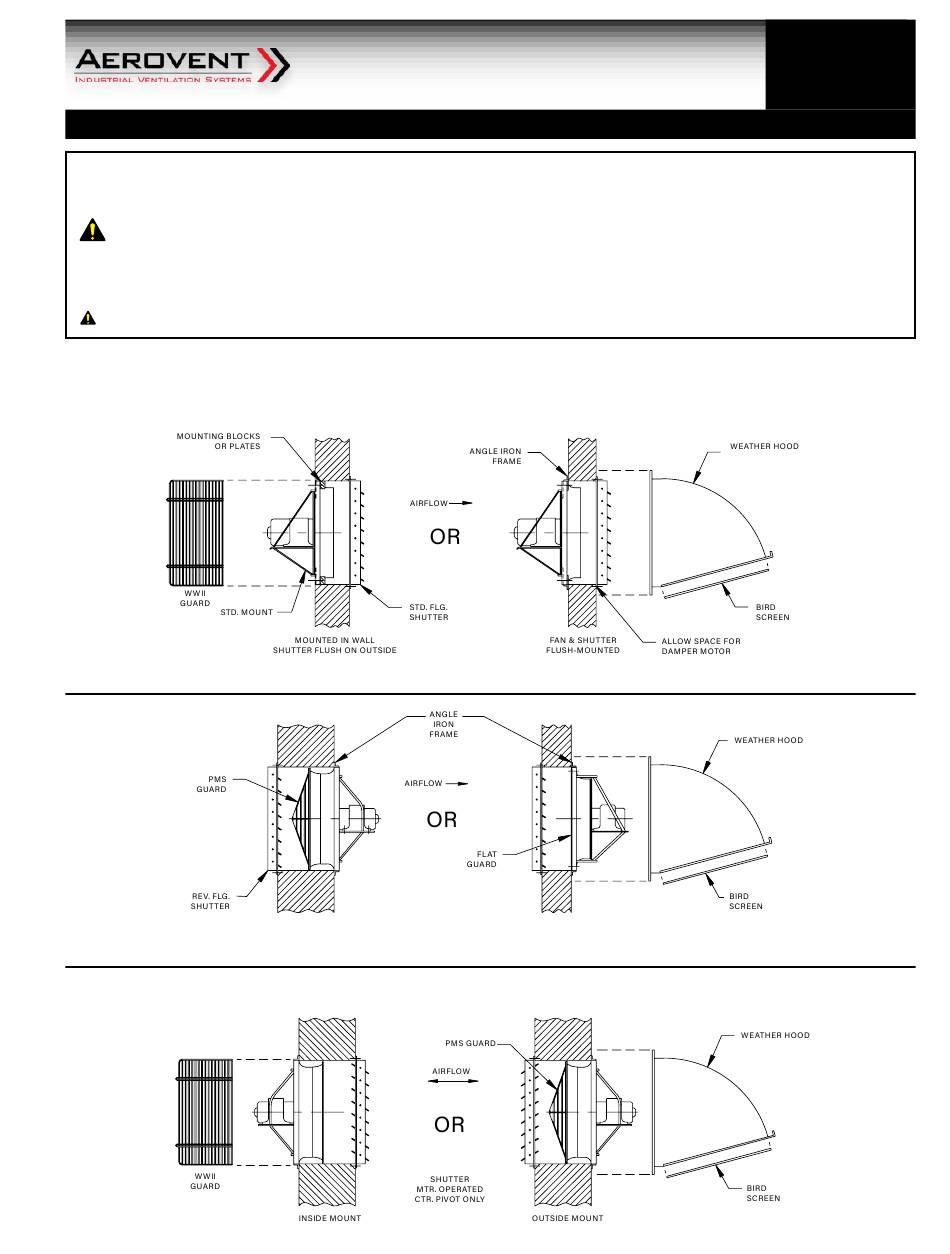

Typical Panel Fan Installations
EXHAUST INSTALLATIONS
STANDARD FLOW
PANELS
INSTALLATION REQUIRES SHUTTER SIZE TO BE SAME AS PANEL SQUARE.
REVERSE FLOW REVERSE MOUNT
PANEL PANEL
REVERSIBLE PANELS
