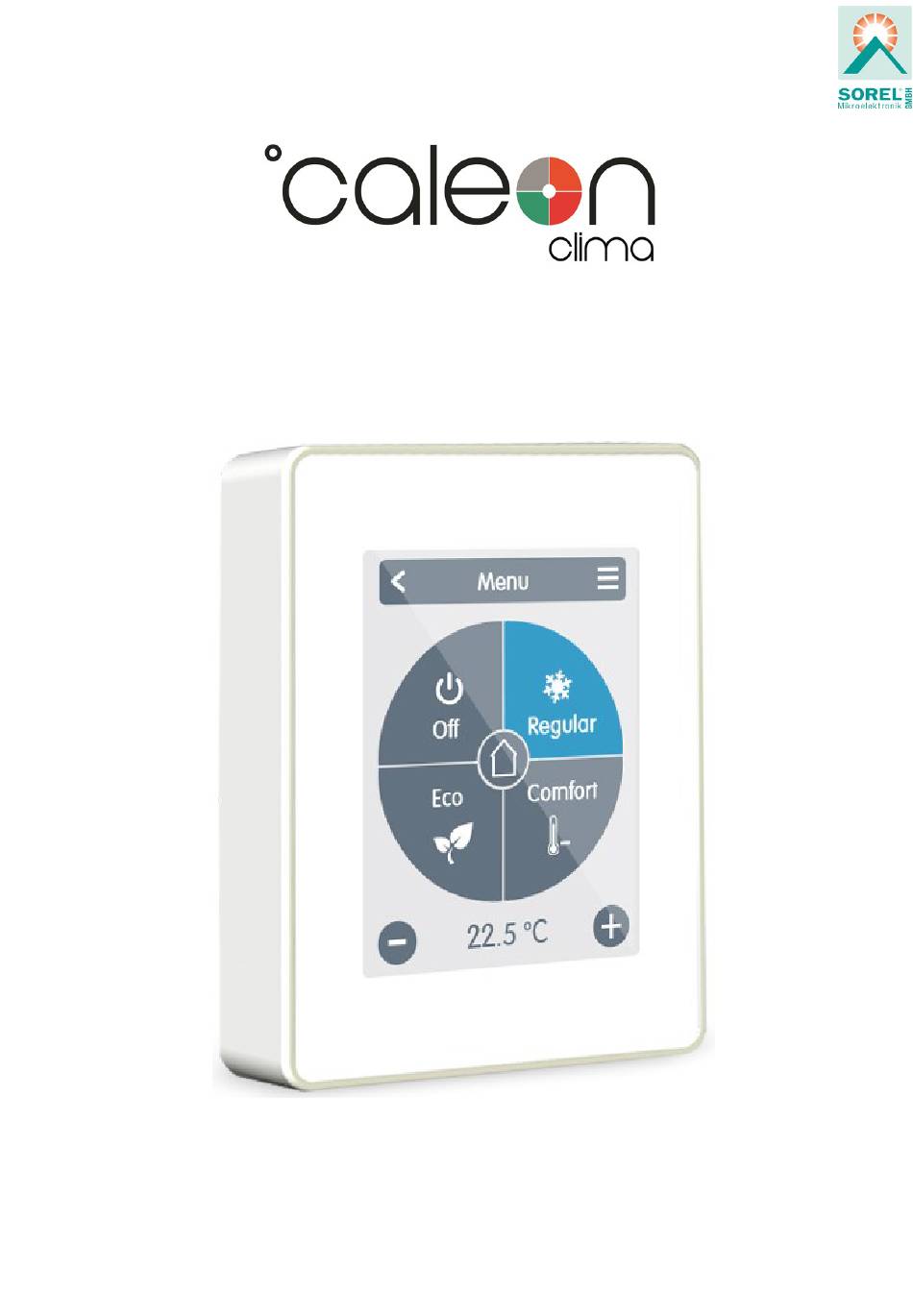

- Page 1 Installation and operating instruction °CALEON Clima Smart Thermostat Read carefully before installation, commissioning and operation...
-
Page 2: Table Of Contents
CONTENT Safety Instructions EG-Conformity General instructions Changes to the Unit Warranty and Liability Disposal and Pollutants Description °CALEON Clima Smart Thermostat Specifications Scope of Supply Installation °CALEON Clima Installation Sample wiring Setup Setup procedure Operation Room Overview Operating Mode Menu Set Operation Hours Set Operation Hours Expert Menu... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS EG-Conformity By affixing the CE mark to the unit the manufacturer declares that °CALEON Clima Smart Thermostat conforms to the following relevant safety reg- ulations: EU low voltage directive 2014/35/EU EU electromagnetic compatibility directive 2014/30/EU conforms. Conformity has been verified and the corresponding documentation and the EU declaration of conformity are kept on file by the man- ufacturer. -
Page 4: Description °Caleon Clima Smart Thermostat
DESCRIPTION °CALEON CLIMA SMART THERMOSTAT Specifications 2-part, ABS plastic 75 mm x 95 mm x 30 mm Glass front Capacitive touch panel Color display with 240x320 dots 2.8 inches (7 cm) diagonal Intuitive user guidance Deutsch Italiano English Français Español Português Electrical specifications: Power supply... -
Page 5: Installation
INSTALLATION °CALEON Clima Installation Mount the unit at a suitable location. Pay attention to suitable environmental conditions. Direct sunlight, sources of heat and cold, e.g. radi- ators and windows must be avoided. Strip cables by 75 mm max. and strip the last 7-10 mm of the wires. -
Page 6: Sample Wiring
Sample wiring SETUP Setup procedure Install device Install the device as described (See " Sample wiring " on page 6). Set Functions Assign a switching output to the respective function via the "Expert" menu in the "Settings" menu item under "Functions" and parameterize it (See " Settings Functions "... -
Page 7: Operation
OPERATION Room Overview Displays the room temperature, humidity and external temperature once the start screen was activated. Operating Mode Overview > Operating Mode... -
Page 8: Menu
Menu Overview > Operating Mode > Menu Set Operation Hours Overview > Operating Mode > Main Menu > Timer For the operating modes heating and cooling own mode-related times are set. To do this, first switch to the heating mode and define the corresponding times for this operating mode under Main menu > Times. Then change to the cooling mode and define the corresponding times for this operating mode under Main menu >... -
Page 9: Set Operation Hours
Set Operation Hours In the interests of efficient and energy-saving single room control, the operating times should be set specifically for each room. -
Page 10: Expert Menu
Expert Menu Overview > Operating Mode > Main Menu > Expert Expert Menu Settings Overview > Operating Mode > Main Menu > Expert > Settings... -
Page 11: Settings Functions
Settings Functions Overview > Operating Mode > Main Menu > Expert > Settings > Functions Overview > Operating mode > Menu > Expert > Settings > Functions > Thermostat... -
Page 12: Wifi Settings
Overview > Operating mode > Main menu > Expert > Settings > Functions > Dehumidifier Wifi Settings Overview > Operating mode > Menu > Expert > Settings > WiFI... -
Page 13: Caleon Wifi And App Configuration
°CALEON WiFi and App Configuration Download °CALEON app to your mobile device. Currently available on Google Play (Android) and Apple App Store (iOS). Start app and create account. Click activation link in your e-mail inbox. Connect °CALEON with the WLAN network: Expert Settings WiFi... - Page 14 Date and time of installation: Name of installation company: Space for notes: Your specialist dealer: Manufacturer: SOREL GmbH Mikroelektronik Reme-Str. 12 D - 58300 Wetter (Ruhr) +49 (0)2335 682 77 0 +49 (0)2335 682 77 10 info@sorel.de www.sorel.de...
