Sorel CALEON Installation And Operating Instruction

Room controller

Advertisement

Quick Links

Installation and operating instruction
Read carefully before installation, commissioning and operation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CALEON and is the answer not in the manual?

Questions and answers

Summary of Contents for Sorel CALEON

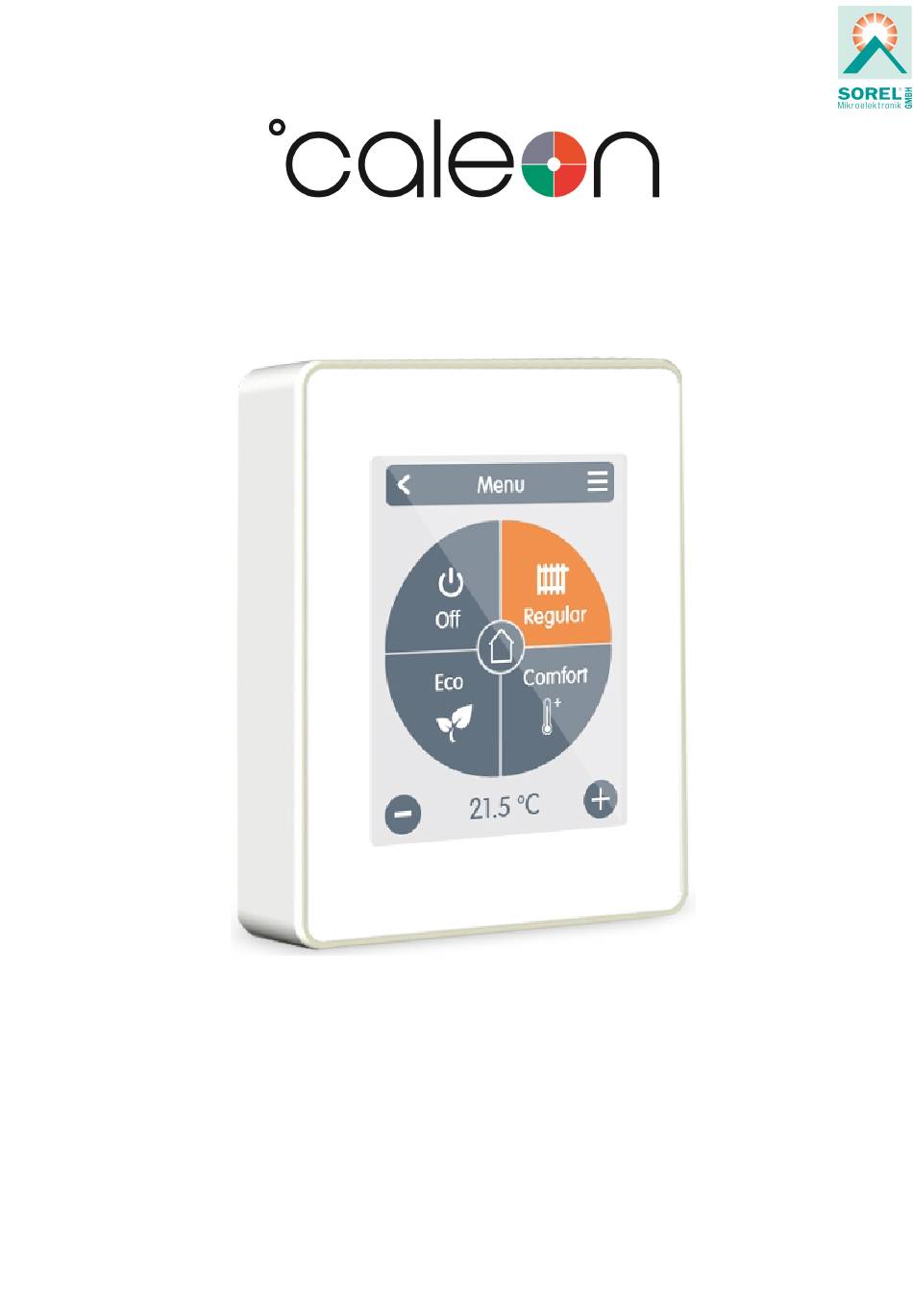

  • Page 1 Installation and operating instruction Read carefully before installation, commissioning and operation...
  • Page 2: Table Of Contents

    CONTENT Safety Instructions EG-Conformity General Instructions Changes to the Unit Warranty and Liability Disposal and Pollutants Description °CALEON Specifications Scope of Supply Installation °CALEON Installation Example Controller-Connection Example CAN-Connection Operation Room Overview Operating Mode Menu Set Operation Hours Set Operation Hours...
  • Page 3: Safety Instructions

    Therefore these instructions must be read and understood completely by the installation technician/specialist and by the system user before installation, commissioning and operation of the unit. This unit is an automatic, electrical °CALEON Room Controller. Install the device only in dry rooms and under environmental conditions as described under "Technical Data".
  • Page 4: Description °Caleon

    Other Specifications Installation methods Wall installation, with/without wall socket Real Time Clock RTC with 24 hour power reserve Scope of Supply °CALEON Room Controller 2 screws 3,5 x 35 mm and 2 plugs 6 mm for wall installation. °CALEON installation guide...
  • Page 5: Installation

    40 mm is recommend. Long wire loops inside the °CALEON's housing may cause problems. When mounting °CALEON's base to a plastic wall socket the con- necting cables must be kept as short as possible (strip cables not more than 55 mm).
  • Page 6 The connection of the opposite side (controller) can be found in the cor- responding terminal diagram in the controller manual. Refit the base and fasten with screw. Switch on mains voltage and place °CALEON in operation. The commissioning can be accessed in the °CALEON menu under Expert at any time.
  • Page 7: Example Controller-Connection

    Example Controller-Connection Example CAN-Connection Only CAN in power supply from 4 cores of the regulator. The order and the number of devices (max. 50) is arbitrary.
  • Page 8: Operation

    OPERATION Room Overview Displays the room temperature, humidity and external temperature once the start screen was activated. Operating Mode Overview > Operating Mode...
  • Page 9: Menu

    Menu Overview > Operating Mode > Menu Set Operation Hours Overview > Operating Mode > Menu > Timer Setting of individual heating and cooling times for the selected room.
  • Page 10: Set Operation Hours

    Set Operation Hours In the interests of efficient and energy-saving single room control, the operating times should be set specifically for each room.
  • Page 11: Expert Menu

    Expert Menu Overview > Operating Mode > Menu > Expert The menu structure described here is based on the status at the time of production and may vary due to subsequent software changes. Settings Overview > Operating Mode > Menu > Expert > Settings...
  • Page 12: Devices

    Devices Overview > Operating mode > Menu > Expert > Settings > Devices Overview > Operating mode > Menu > Expert > Settings > Devices > °CALEON...
  • Page 13: Rooms

    Rooms Overview > Operating mode > Menu > Expert > Settings > Rooms Overview > Operating mode > Menu > Expert > Settings > Room 2...
  • Page 14: Sensors

    Sensors Overview > Operating mode > Menu > Expert > Settings > Rooms > Room 1 > Sensors Overview > Operating mode > Menu > Expert > Settings > Rooms > Room 1 > Sensors > Temperature Sensor 1 Overview > Operating mode > Menu > Expert > Settings > Rooms > Room 1 > Sensors > Humidity Sensor 1...
  • Page 15: Functions

    Functions Overview > Operating mode > Menu > Expert > Settings > Functions Activate and set additional functions. Overview > Operating mode > Menu > Expert > Settings > Functions > Thermostat 1 Switches the defined output to the set room / rooms depending on time and temperature.
  • Page 16 Overview > Operating mode > Menu > Expert > Settings > Functions > Timer 1 The function Timer 1 switches the defined output depending on the set times.
  • Page 17: Service Values

    Service Values Overview > Operating mode > Menu > Expert > Service values...
  • Page 18: Notes

    Notes...
  • Page 19 Subject as a basic principle to errors and technical changes. Date and time of installation: Name of installation company: Space for notes: Your specialist dealer: Manufacturer: SOREL GmbH Mikroelektronik Reme-Str. 12 D - 58300 Wetter (Ruhr) +49 (0)2335 682 77 0 +49 (0)2335 682 77 10 info@sorel.de www.sorel.de...
