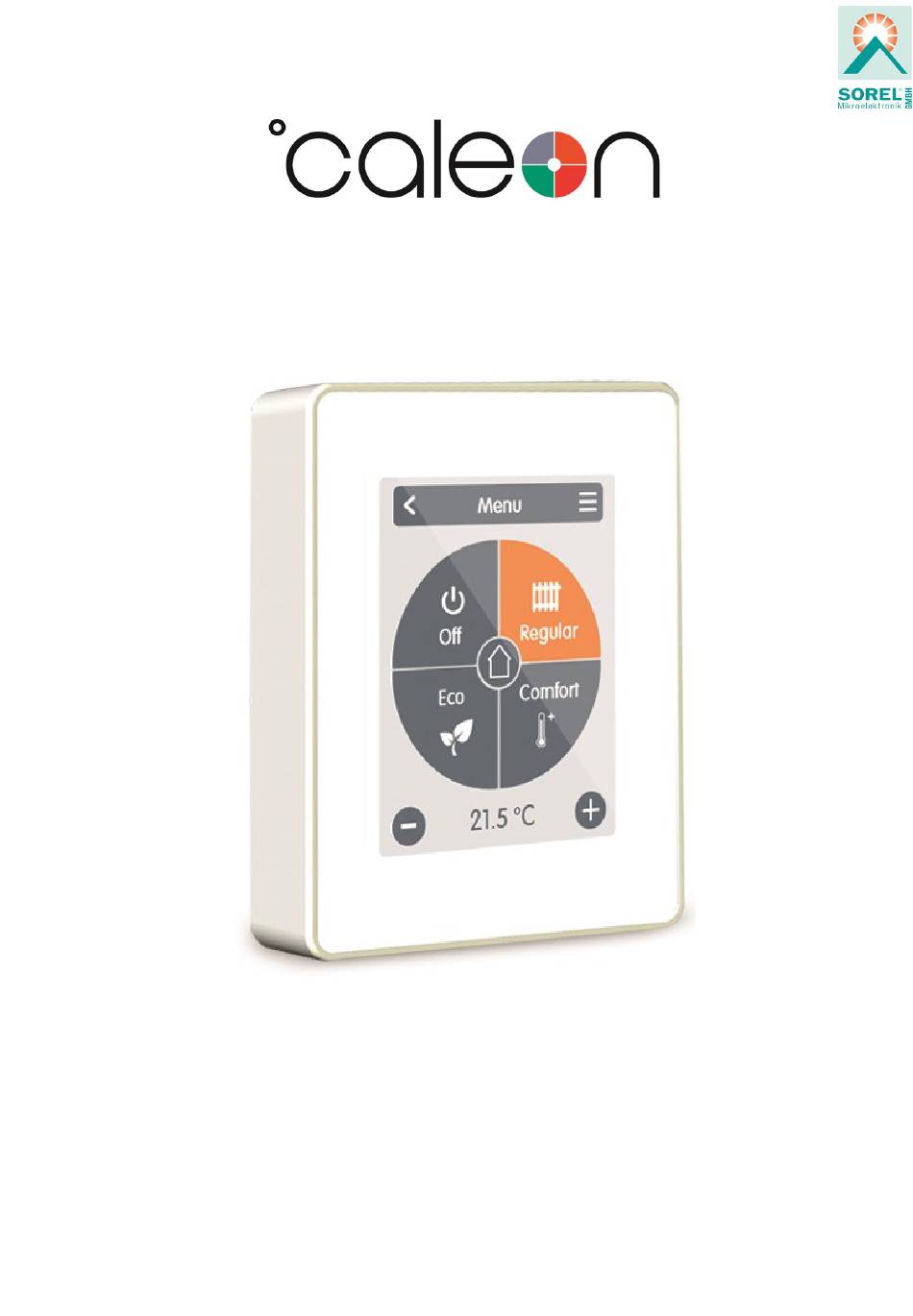

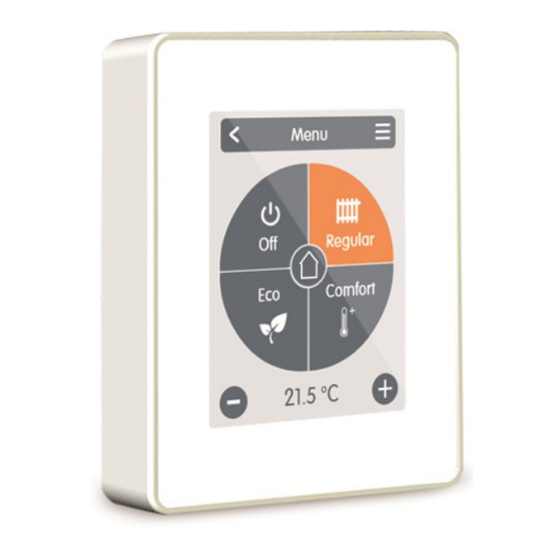

- Page 1 Installation and operating instruction °CALEON Thermostat Read carefully before installation, commissioning and operation...
-
Page 2: Table Of Contents
Content Safety Instructions EG-Conformity General instructions Changes to the Unit Warranty and Liability Disposal and Pollutants Description °CALEON Thermostat Specifications Scope of supply Installation °CALEON Installation Sample wiring Setup Setup procedure Operation Overview of temperatures & humidity Select Operating Mode... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS EG-Conformity By affixing the CE mark to the unit the manufacturer declares that °CALEON Thermostat conforms to the following relevant safety regulations: EU low voltage directive 2014/35/EU EU electromagnetic compatibility directive 2014/30/EU conforms. Conformity has been verified and the corresponding documentation and the EU declaration of conformity are kept on file by the man- ufacturer. -
Page 4: Description °Caleon Thermostat
Other Specifications Installation methods Wall installation, with/without wall socket Real Time Clock RTC with 24 hour power reserve Scope of supply °CALEON Roomthermostat 2 screws 3,5 x 35 mm and 2 plugs 6 mm for wall installation. °CALEON Thermostat installation guide... -
Page 5: Installation
Only mains voltage, no SELV! Refit the base and fasten with screw. Switch on mains voltage and place °CALEON in operation. The commissioning can be accessed in the °CALEON menu under Expert at any time. -
Page 6: Sample Wiring
Sample wiring SETUP Setup procedure Install device Install the device as described (see " Sample wiring " on page 6). Set Functions Assign a switching output to the respective function via the "Expert" menu in the "Settings" menu item under "Functions" and parameterize it (see " Set- tings Functions "... -
Page 7: Operation
OPERATION Overview of temperatures & humidity It displays room temperature and humidity. If there is no activity for 60 sec., the device is automatically switched to the overview. Room humidity Is the relative humidity of The selected space in 0.1 degree incre- ments. -
Page 8: Expert Menu
Expert Menu Overview > Operating Mode > Main Menu > Expert Language Selection Service values The configuration of the device language. Information about the device version and mes- sages such as restarts. Date & Time The configuration of the time and date and Factory Settings automatic summer/winter changeover. -
Page 9: Settings Functions
Settings Functions Overview > Operating Mode > Main Menu > Expert > Settings > Functions Thermostat Dehumidifier Output: Switching output of the function. Output: Switching output of the function. Humidity: Setpoint of humidity. Hysteresis: Heating hysteresis of the thermostat function in relation to the Hysteresis: Hysteresis of the dehumidifier func- actual set room temperature. -
Page 10: Set Operation Hours
Set Operation Hours Overview > Operating Mode > Main Menu > Timer Adjustment of individual heating times by a simple copy function for every day. Previous/Next week Selects the set day. Clock Time table of the selection in periods of 30 minutes increments. - Page 11 Subject as a basic principle to errors and technical changes. Date and time of installation: Name of installation company: Space for notes: Your specialist dealer: Manufacturer: SOREL GmbH Mikroelektronik Reme-Str. 12 D - 58300 Wetter (Ruhr) +49 (0)2335 682 77 0 +49 (0)2335 682 77 10 info@sorel.de www.sorel.de...
