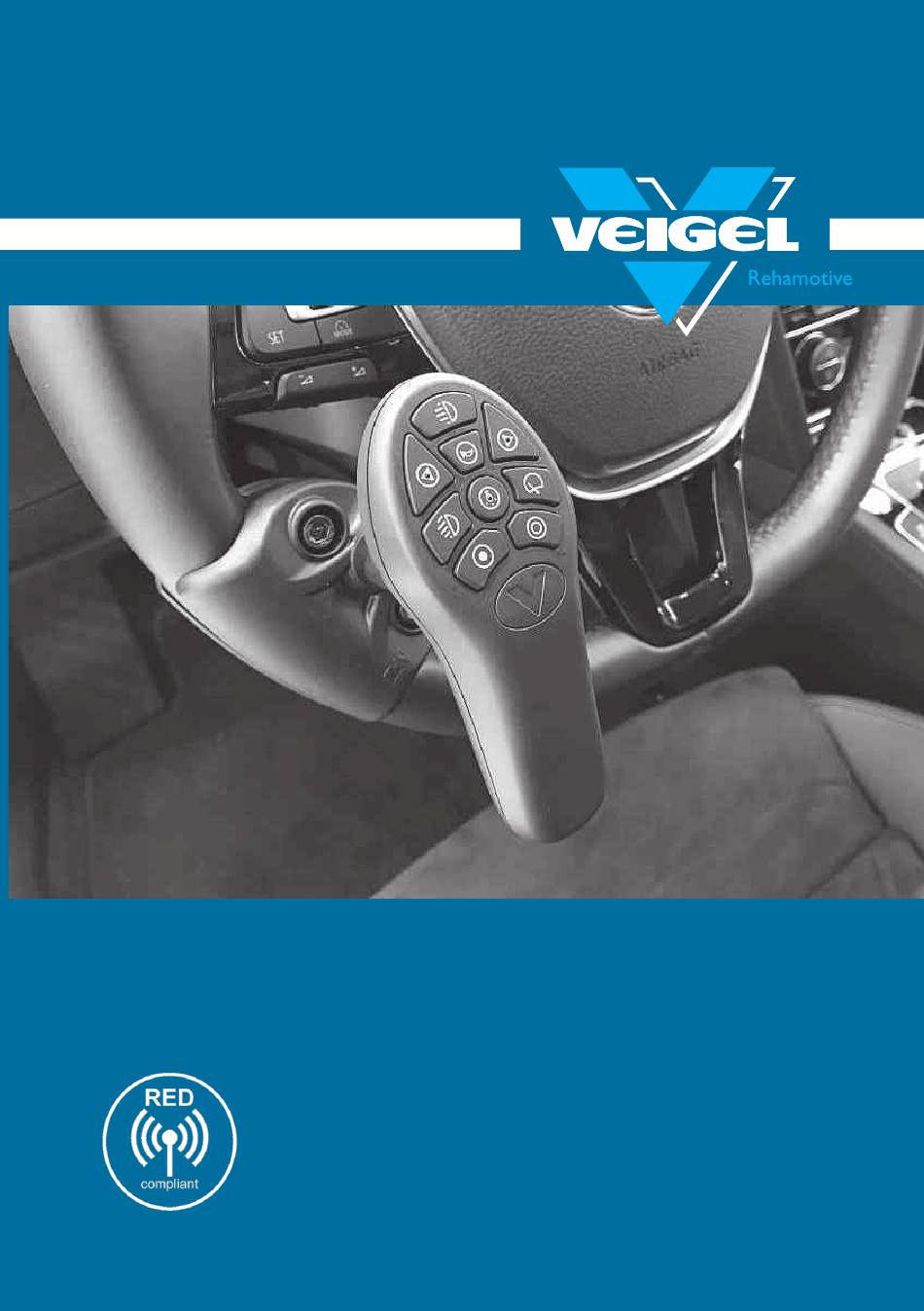

- Page 1 Fitting and Operating Instructions MyCommand Item. no.: BMC00x www.veigel-automotive.de...
- Page 2 Document no. 250492 Created on 11.02.2017 Name Schulz Errors excepted and subject to technical Changed alterations without notice. Reproduction, including of excerpts, only with the Version 1 permission of Veigel GmbH + Co. KG...
-
Page 3: Table Of Contents
Contents Contents Contents .....................1-1 Change history ....................1-2 Symbols used ..................... 1-3 Blank page for notes ................... 1-4 General Information ..................2-1 General safety instructions ................. 2-1 Product Description ..................3-1 Function ......................3-1 Identification plate ....................3-1 Items supplied ....................3-2 Blank page for notes ................... -
Page 4: Contents
Contents Change history Edition Changes Chapter 01 / 11.02.2017 First edition 02 / 07.16.2018 Parts certificate added Editorial change "Red compliant" logo added Cover sheet... -
Page 5: Symbols Used
This symbol signifies tips and recommendations. Individual images in these instructions may differ from the appearance of the driving aid which you have received! Veigel hotline Veigel GmbH + Co. KG Phone: +49 (0) 7941 60585-0 Verrenberger Weg 36 Fax: +49 (0) 7941 60585-20 74613 Öhringen, Germany... -
Page 6: Blank Page For Notes
Contents Blank page for notes... -
Page 7: General Information
• If the driving aid is fitted in an authorized workshop, the fitting record sheet must be completed (see appendix). If factory fitted, a separate fitting record sheet will be drawn up and archived at the Veigel factory. Do not attach MyBase close to vehicle controls. - Page 8 General Information Important notes for the user: • When using and operating the driving aid, observe the generally recognized codes of practice. • Observe the applicable accident prevention and safety specifications when WARNING! operating the driving aid. • Only operate the driving aid if it is in a perfect and functional condition. Have any faults repaired immediately.
-
Page 9: Product Description
The Veigel multifunction control knob MyCommand has been developed for people with limited mobility who have complete function of the fingers. Veigel MyCommand can be used to operate all secondary functions, e.g., turn signals, wipers, lights, and horn, without taking the hands from the driving aid. -
Page 10: Items Supplied
Product Description Items supplied Fig. 3-1: Items supplied Item Description Item no. MyCommand 230352 Clamp 220296 MyBase including cabling kit VCC/VAC 230498 AAA batteries 231953 (2 pcs.) Fixing kit: Quantity Description 2 pcs. Cylinder head screw M6×30 2 pcs. Cylinder head screw M6×35 2 pcs. - Page 11 Product Description MyCommand variants overview Item number Description BMC001 MyCommand – CAN BMC002 MyCommand – analog...
-
Page 12: Blank Page For Notes
Product Description Blank page for notes... -
Page 13: Operation
Operation Safety instructions If the appropriate entry is not shown on the driver's license, the MyCommand unit must be removed and switched off. WARNING! Take the time to familiarize yourself with the adapted vehicle. It may be a good idea to pay a visit to a driver training area to get used to the new style of operation. -
Page 14: Functions Of Buttons
Operation Functions of buttons Button Function Headlight flash (T) / High beam on 1x (H) / High beam off (T) / 2x (H) automatic high beam Horn (T) Turn signal left (T) / Hazard lights (H) / Comfort turn signal 2x (T) Turn signal right (T) / Hazard lights (H) / Comfort turn signal 2x (T) Lights on (T) / Lights off (H) -
Page 15: Range Of Functions
The turn signal is canceled by the steering angle. The button assigned to the comfort turn signal depends on the vehicle setup. NOTE The vehicle's original control and the Veigel MyCommand unit must not be used at the same time. NOTE... - Page 16 Operation Range of functions Teaching-in Switch off the ignition. To activate the teach-in mode, press buttons 3 / 9 / 4 all at the same time until a confirmation tone is heard. An intermittent tone is then heard, signaling that teach-in mode is active.
-
Page 17: Fitting
For vehicle adaptations using Veigel driving aids, the tightening torques prescribed by the vehicle manufacturer apply. For Veigel parts, the usual DIN standard tightening torques from the following WARNING! table apply unless other tightening torques are mentioned in the text. -
Page 18: Fitting Of The Steering Wheel Control Knob Bracket
Fitting Fitting of the steering wheel control knob bracket Take apart the two halves of the cover and place them in the desired position on the steering wheel rim. The long button faces inward toward the steering column. Using the M6x30 cylinder head screws and the 6.5 washers, tighten the two halves of the cover together. -
Page 19: Maintenance And Care
Maintenance / care Cleaning Do not use harsh cleaning products or solvents when cleaning Under no circumstances can the MyCommand unit be cleaned under running water or immersed in water. Use dampened soft microfiber cloths or chamois leather. Battery condition If three beeps are heard on switching ON the ignition, the AAA batteries must be changed. -
Page 20: Changing The Batteries
Maintenance and Care Changing the batteries Unscrew the cross-headed screw from the lower half of the cover. Fig. 6-1: Removing the upper half of the cover Carefully pull the upper half of the cover away from the lower half with sideways pressure. - Page 21 Maintenance and Care Changing the batteries Remove the batteries from the battery holder and replace with new batteries. Fig. 6-3: Changing the batteries...
-
Page 22: Transport, Storage, And Disposal
Transport, Storage, and Disposal Transport, Storage, and Disposal Transport and storage The product must be transported and stored in the original packaging. WARNING! Disposal Notes on environmental protection: Following the enactment of European directives 2002/96/EC and 2006/66/EC into national law, the following applies: Electrical and electronic devices and batteries must not be disposed of in house- hold waste. -
Page 23: Fitting Record Sheet
This record sheet is to be filled out when fitting the driving aid in a specialist workshop. NOTE If fitted by Veigel at the factory, a separate fitting record sheet will be drawn up and archived at the Veigel factory. Customer:... -
Page 24: Blank Page For Notes
Fitting Record Sheet Blank page for notes... -
Page 25: Parts Certificate
Parts Certificate... - Page 28 Veigel GmbH + Co. KG Verrenberger Weg 36 74613 Öhringen, Germany phone +49 (0) 7941 60585 0 fax +49 (0) 7941 60585 20 info@veigel-automotive.de www.veigel-automotive.de FOR EVERY VEHICLE A SOLUTION...
