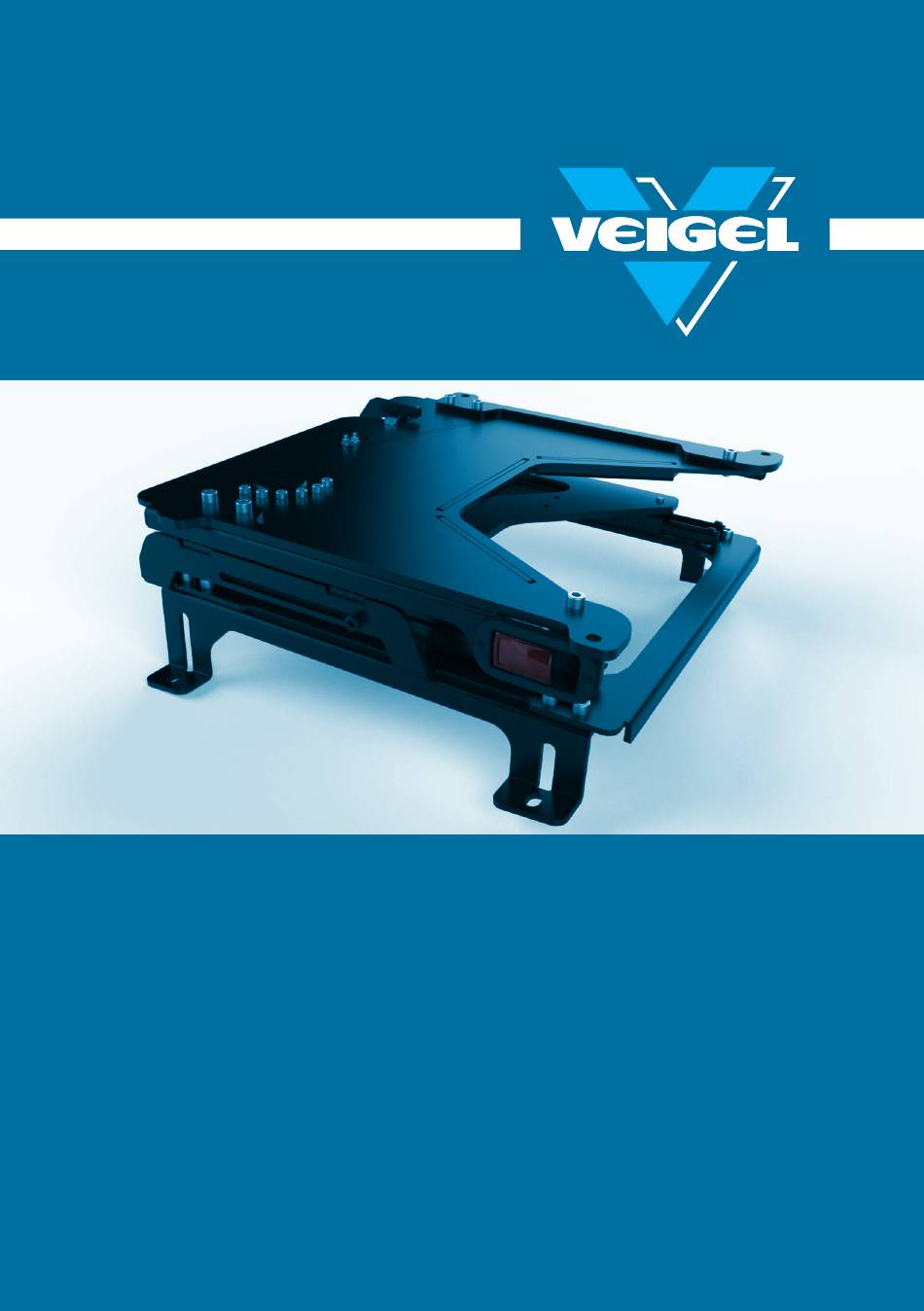

- Page 1 Rehamotive Installation and Operating Instructions Universal Installation Kit for the Twister Art. No.: S00280220 www.veigel-automotive.de...
- Page 2 Document no. 250562 Created 2020-02-13 Name Schulz Subject to technical modifications without prior Revised notification and to errors. Reproduction, even in part, only permitted with Version 1 permission from Veigel GmbH + Co. KG.
-
Page 3: Table Of Contents
Contents Contents Contents .....................1-1 Revision history ....................1-2 Symbols used ..................... 1-3 General information ..................2-1 General safety information .................. 2-1 Intended use ....................... 2-2 Foreseeable misuse ................... 2-2 Product description ...................3-1 Type plate ......................3-1 Twister scope of delivery ..................3-2 Applicable documents .................. -
Page 4: Contents
01 / 2020-02-13 Initial version 02 / 2014-03-26 Editorial revision 03 / 2013-12-16 Editorial revision 04 / 2015-09-07 Addition of Veigel Commander operation 05 / 2015-11-27 "Veigel Commander operation" removed 06 / 2016-09-07 Veigel hotline address details corrected Type plate updated... -
Page 5: Symbols Used
Contents Thank you for choosing this high-quality Veigel product! Symbols used The following symbols are used in these operating instructions: This character refers to information that, if not observed, will pose a risk to your health or the functionality of the device. - Page 6 Contents Blank page for your notes...
-
Page 7: General Information
Safety information General information General safety information The Twister is a pre-assembled component that comes ready to install. It was designed and built in line with carefully chosen harmonised standards that must be observed, as well as further technical specifications. Consequently, it is a state-of-the-art product and provides the best possible level of safety while in operation. -
Page 8: Intended Use
Safety information Intended use • This Twister is only suitable for use in the named vehicle types; it may only be installed in these vehicle types. • The Twister replaces an original seat without a lateral airbag. • The swivel functions are only intended to make vehicle entry and exit easier for people up to a maximum body weight of 160 kg. -
Page 9: Product Description
Twister must be locked in this position while driving. 2. 90° position: Twister turned outwards by 90°. The Twister can be pushed out from this position, to make it easier to get into a wheelchair, for example. Type plate Veigel GmbH + Co. KG Type: Version: Type designation: xxxxxx-xxx Factory no.:... -
Page 10: Twister Scope Of Delivery
Product description Twister scope of delivery M8x25 8.4x21x4 M8x25 M10x40 M10x45 Twister Figure 1: layout Qty Description Item Description Art. no. Tube 106319 Fillister-head screw M8x25 Centre punch 106399 Hexagon nut ISO 4032 M8 Template 106318 Hexagon nut DIN 985 M8 Angle bracket 106317 Washer DIN 7349-8.4x21x4... -
Page 11: Applicable Documents
Product description Intended use See the parts certificate for detailed information about the assignment. NOTE Applicable documents: Twister installation and operating instructions S00001... - Page 12 Product description Blank page for your notes...
-
Page 13: Operation
Operation OPERATION Safety information Keep the installation and operating instructions together with the vehicle documents. ATTEN- TION! Arrange for any irregularities to be examined by a workshop. Operation Operate the seat as per the information provided by the vehicle manufacturer. The standard functionality of the seat remains fully intact. -
Page 14: Assembly
Tightening torques The tightening torques as specified by the vehicle manufacturer apply when converting vehicles using Veigel driving aids. Unless otherwise stated in the text, the usual DIN tightening torques provided ATTEN- in the table below apply for Veigel parts. TION! -
Page 15: Removing The Original Seat
Assembly Removing the original seat Only trained individuals may make modifications to or work on airbag systems. ATTEN- TION! Add the Twister and installation kit to the vehicle documents in accordance with Section19 Paragraph 2 and Section 21 of the StVZO (Straßenverkehrs- Zulassungs-Ordnung, the German Road Traffic Licensing Regulations). -
Page 16: Assembling The Twister Installation Kit
Assembly Assembling the Twister installation kit Required parts: Required screws: Item 1 Tube 12 x fillister-head screw M8x25 Item 2 Centre punch 8 x hexagon nut ISO 4032 M8 Item 3 Template 8 x hexagon nut DIN 985 M8 Item 4 Angle bracket 12 x washer 8.4x21x4 Item 5... -
Page 17: Positioning The Template
Assembly Positioning the template Use the template to establish the correct position. Dimension X should be in the bottom third of the B-pillar. Make sure that this does not make dimension Y too small and leaves sufficient clearance to the B-pillar. Use the spirit level to ensure the installation frame is straight, both lengthwise and crosswise. -
Page 18: Customising The Angle Brackets
Assembly Customising the angle brackets Screw the centre punch into the threaded hole for the vehicle seat. Bend an angle bracket and position it over the centre punch. Use a hammer to punch-mark the bracket. Figure 5.5: Punch-marking Customise each angle bracket individually. -
Page 19: Belt Connection
Assembly Belt connection Choose a suitable location on the two rear angle brackets for the seat belt buckle and strap. Strictly observe the provisions of technical regulation ECE R-14 on safety-belt anchorages when customising these parts. Figure 5.9: Seat belt buckle Make sure that the seat belt can never be in contact with the Twister. -
Page 20: Assembling The Twister
Assembly Assembling the Twister Screw the Twister and the installation frame together. Use the M8x25 fillister-head screws, 8.4 washers and M8 hexagon nuts to do this. Make absolutely sure that all 4 screw connections sit properly and are not under strain. M8 = 25 Nm ±10% Figure 5.11: Installing the Twister Use the M10x40 or M10x45... -
Page 21: Maintenance And Care
Maintenance and care Maintenance and care Safety information Only authorised and appropriately trained personnel may perform maintenance and repair work on the Twister. ATTEN- TION! Arrange for functional faults to be remedied immediately by a specialist workshop. NOTE Maintenance/care Every 10,000–15,000 km Parts Action All screw connections... -
Page 22: Transport, Storage And Disposal
Transport, storage and disposal Transport, storage and disposal Transport and storage Transport and storage are only permitted in the original packaging or other appropriate protective packaging. ATTEN- TION! Disposal Comply with national waste disposal directives. ATTEN- TION! We ensure that the majority of the materials used to make our Twister are recyclable, right from the design phase. -
Page 23: Installation Record
Installation record Installation record This record will be completed if the driving aid is installed at an authorised workshop. If it is installed at the Veigel factory, a separate installation record will NOTE be prepared and archived there. Customer: Installation date:... - Page 28 Veigel GmbH + Co. KG Verrenberger Weg 36 74613 Öhringen, Germany phone +49 (0) 7941 60585 0 fax +49 (0) 7941 60585 20 info@veigel-automotive.de www.veigel-automotive.de FOR EVERY VEHICLE A SOLUTION...
