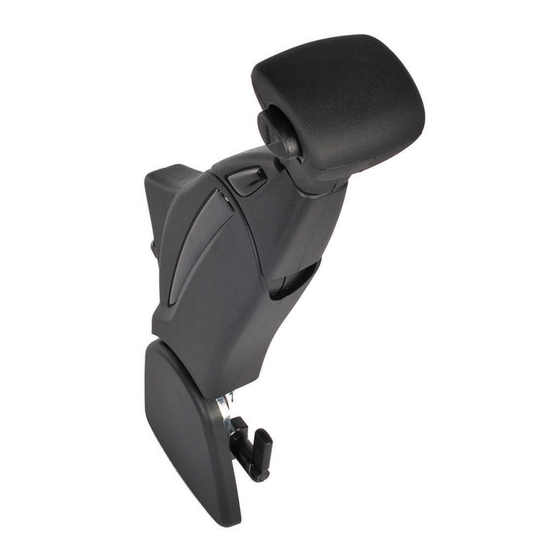

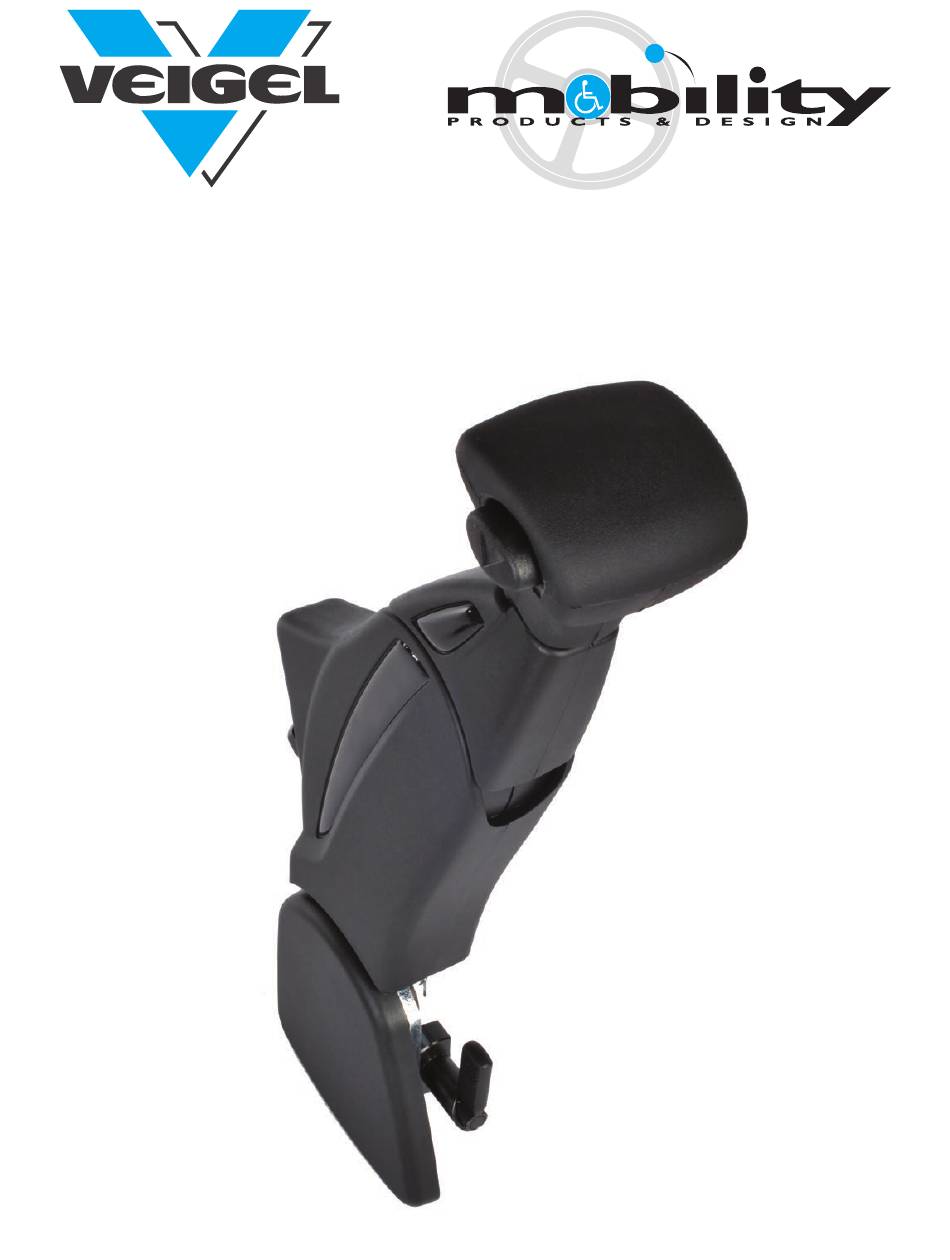

- Page 1 North America North America COMPACT II HAND CONTROL OWNER/OPERATOR MANUAL...
- Page 2 • Keep these instructions in the vehicle so they may be read by any vehicle operator before use Must be Installed with Vehicles with Automatic Transmission Only The Veigel Compact II Hand Control is designed and indented only for use with automatic transmission equipped vehicles. Must be Professionally Installed The Veigel Compact II Hand Control must be installed by a professionally trained technician only.
-
Page 3: Table Of Contents
INSTALLATION SIGN-OFF SHEET ..............12 FOR ASSISTANCE, ADDITIONAL MANUALS Call: (800) 488-7688 Fax: (800) 485-2499 E-Mail: sales@veigel-na.com Website: www.veigel-na.com... -
Page 4: Safety Information
• Use of the Veigel hand controls by those who can adequately use the foot pedals is not authorized. Most states and providence's require restrictions on driver licenses to operate hand controls. - Page 5 • The hand control is for use in vehicles equipped with automatic transmission. The hand control does not operate a clutch or shift the vehicles gear lever. • Do not modify the hand control in any way without specific written approval by Veigel.
-
Page 6: Introduction
Describes additional information that needs special attention when learning a concept or performing a procedures. The Compact II Hand Control is made for simple and reliable operation. The control is mechanically connected to your vehicle’s gas and brake pedals (see Figure 1). -
Page 7: Parts And Controls
PARTS AND CONTROLS The operator components of an installed hand control are shown in Figure 2 and described in the following table. FIGURE 2: Parts & Controls No Name: Description Accelerator Pull this handle to work the accelerator pedal. See “Accelerator and Slowing Handle Down”... -
Page 8: Before Using The Hand Control
Veigel/Mobility Products & Design Pedal Guards. GET FAMILIAR WITH YOUR HAND CONTROL Each installation of the Veigel Hand Control is unique. The location and position of the controls depends on the interior space and construction of the vehicle. Make sure your know where each control is, and be certain of your ability to quickly reach and operate the controls comfortably. -
Page 9: Basic User Instructions
BASIC USER INSTRUCTION WARNING: When operating your vehicle with the Veigel Hand Control, you must always keep your left hand on the steering wheel to control your vehicle at all times. ACCELERATING AND SLOWING DOWN To accelerate, pull handle of hand control back. Hold it in this position when the desired speed is reached. -
Page 10: Braking
BRAKE Push the handle forward to activate the brake. During the first braking tests please push gently, as only a small effort is needed to brake the vehicle. Pull lever back to release the brake. IMPORTANT: When fully applying the brakes, your arm should not be fully extended. Also, you should not have to rotate your shoulder beyond a reasonable reach to fully apply the brakes. -
Page 11: Placing The Hand Control Back In To Position
FIGURE 5: Engaging the Accelerator Handle INSTRUCTION FOR NON-PHYSICALLY IMPAIRED DRIVERS Veigel recommends that the vehicle be driven only by a physically impaired persons. The hand control should be removed or disengaged when a non-physically impaired person is driving. Non-physically impaired persons could drive by using the pedals, but: •... -
Page 12: Scheduled Maintenance
Serial Number Type The “BZDxxxxx” marked on the label is Veigel’s part number of the hand control. It differs depending on the specific installation kit. The type of hand control (Classic or Compact) is identified in the installation kit manual. -
Page 13: Mobility Products & Design Warranty Policy
SENT IN FREIGHT COLLECT OR C.O.D. WILL BE REFUSED, UNLESS PRE VI OUS LY AU THO RIZED. Veigel/MPD reserves the right to inspect any product or part which is subject of a Warranty claim in order to make final de ter mi na tion of the valid- ity of such claim. - Page 14 Intentionally Left Blank...
-
Page 15: Installation Sign-Off Sheet
INSTALLATION SIGN-OFF SHEET To be filled in by authorized professional distributor or dealer. The installing dealer should maintain a copy of the completed installation Sign-off Sheet and provide the original to the customer along with the remainder of the Installation Manual, to be kept with the vehicle in which the hand control is installed. - Page 16 North America North America...
Need help?
Do you have a question about the COMPACT II and is the answer not in the manual?
Questions and answers

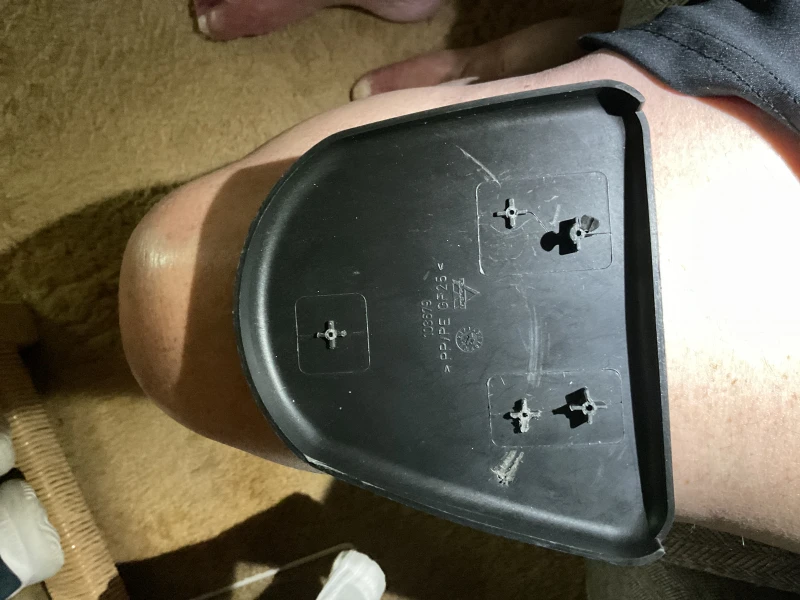

Hello I was using my hand control and I pulled it back and the rod connected to the brake pulled out completely, and now I can't get it to move forward. Is there a looking device that I am not using to get it moved back forward ?
I would like to order this part
