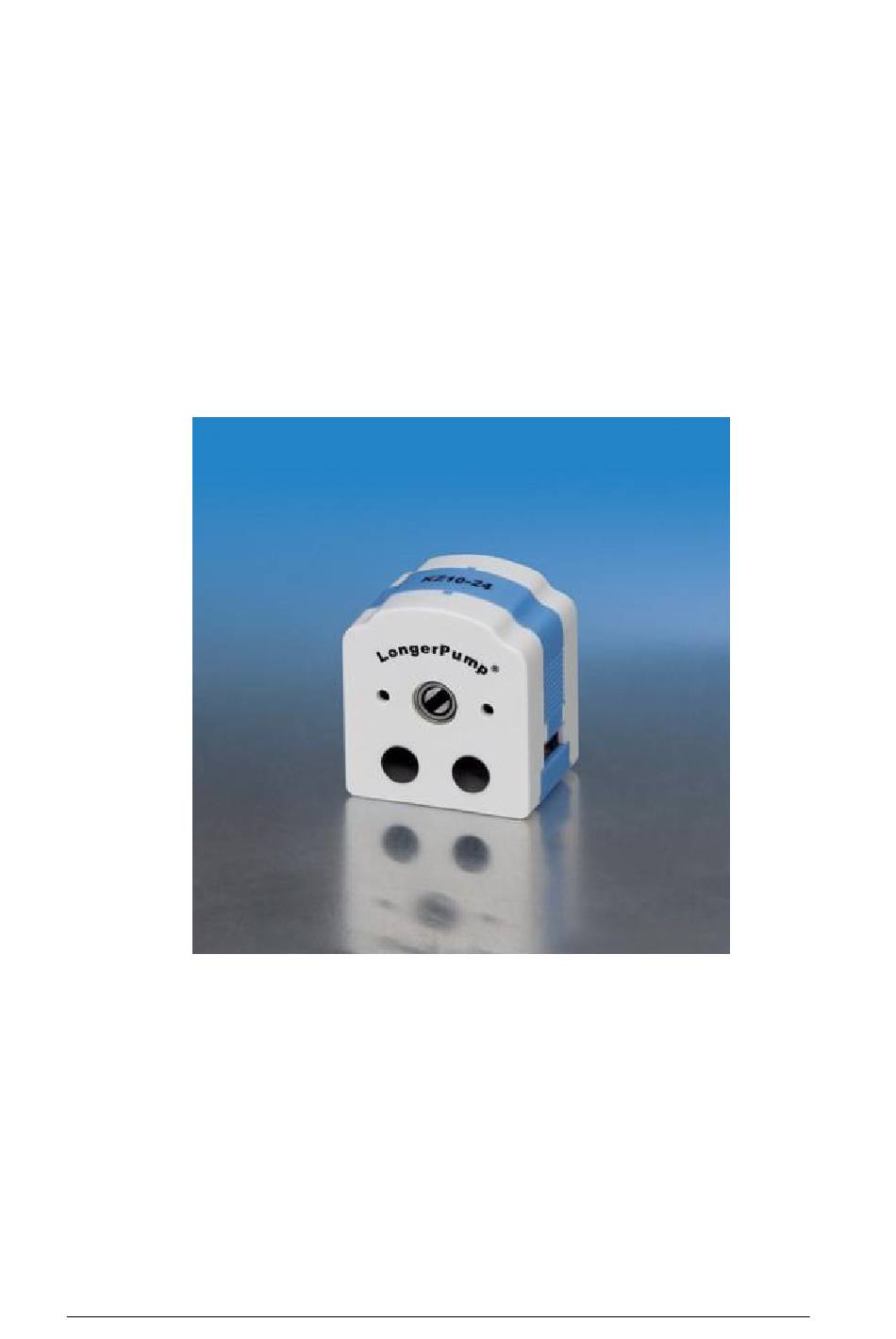

KZ10-24/KZ15-14 Operating Manual
2015-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KZ10-24 and is the answer not in the manual?

Questions and answers

Summary of Contents for Baoding Longer Precision Pump KZ10-24

  • Page 1 KZ10-24/KZ15-14 Operating Manual 2015-2...
  • Page 2: Table Of Contents

    Baoding Longer Precision Pump Co., Ltd. Contents 1 General Information ..........................1 1.1 Precaution ............................ 1 1.2 Warranty and Service ........................1 1.2.1 Warranty Service ......................1 1.2.2 Maintenance Service ....................2 1.2.3 Service Commitment..................... 2 1.2.4 Dispute Settlement ......................2 1.3 Repair Notes ..........................
  • Page 3: General Information

    Baoding Longer Precision Pump Co., Ltd. 1 General Information 1.1 Precaution If tubing leaks or bursts, fluid may spray from the tubing and pump head. Take reasonable practicable measures to ensure the operators’ safety. Check the tubing frequently and replace the tubing if necessary to protect the operators and device.
  • Page 5: Product Introduction

    Baoding Longer Precision Pump Co., Ltd. 2 Product Introduction KZ10-24 and KZ15-14 are OEM peristaltic pump heads. Mainly designed for medium flow and low flow fluid transfer. Up to four heads can be stacked for multi-channel applications. With flexible compression block, tubing can be easily loaded and replaced. KZ10-24 can accept tubings with ID≤3.17mm and wall thickness of 0.86mm.
  • Page 6: Structure

    Baoding Longer Precision Pump Co., Ltd. 2.3 Structure 2.3.1 Outline Drawing 2.3.2 Pump Head Structure 2.4 Performance and Capability 2.4.1 Pump Head Mounting Capability Pump head can be mounted on pump drive through mounting plate. The pump head can 2015-2...
  • Page 7: Tubing Loading Capability

    KZ15-14: When the pump runs, the output pressure of the tubing is up to 0.20Mpa. When the pump stops, the holding pressure is higher than 0.14Mpa. KZ10-24: When the pump runs, the output pressure of the tubing is up to 0.17Mpa. When the pump stops, the holding pressure is higher than 0.10Mpa.
  • Page 8: Installation

    Baoding Longer Precision Pump Co., Ltd. 3 Installation 3.1 Single Pump Head Mounting To mount or replace the pump head, follow below steps: 1) Loosen the pump head mounting screw by using a flat head screwdriver, remove the pump head gently.
  • Page 9: Tubing Loading

    Baoding Longer Precision Pump Co., Ltd. 3.3 Tubing Loading Note: Please disconnect pump from the mains power before loading the tube. 1. Fit the tubing fitting into the tubing clamper. Please refer to below figure. 2. Align the tubing clampers with the slots of the pump head.
  • Page 10: Transportation And Storage

    Baoding Longer Precision Pump Co., Ltd. 3. Center the tubing between the slots, and push the clampers into the slots. 4. Place the compression block into the pump head. 4 Transportation and Storage In the process of transportation, prevent water, moisture, insect, corrosion, and strong mechanical vibration.
