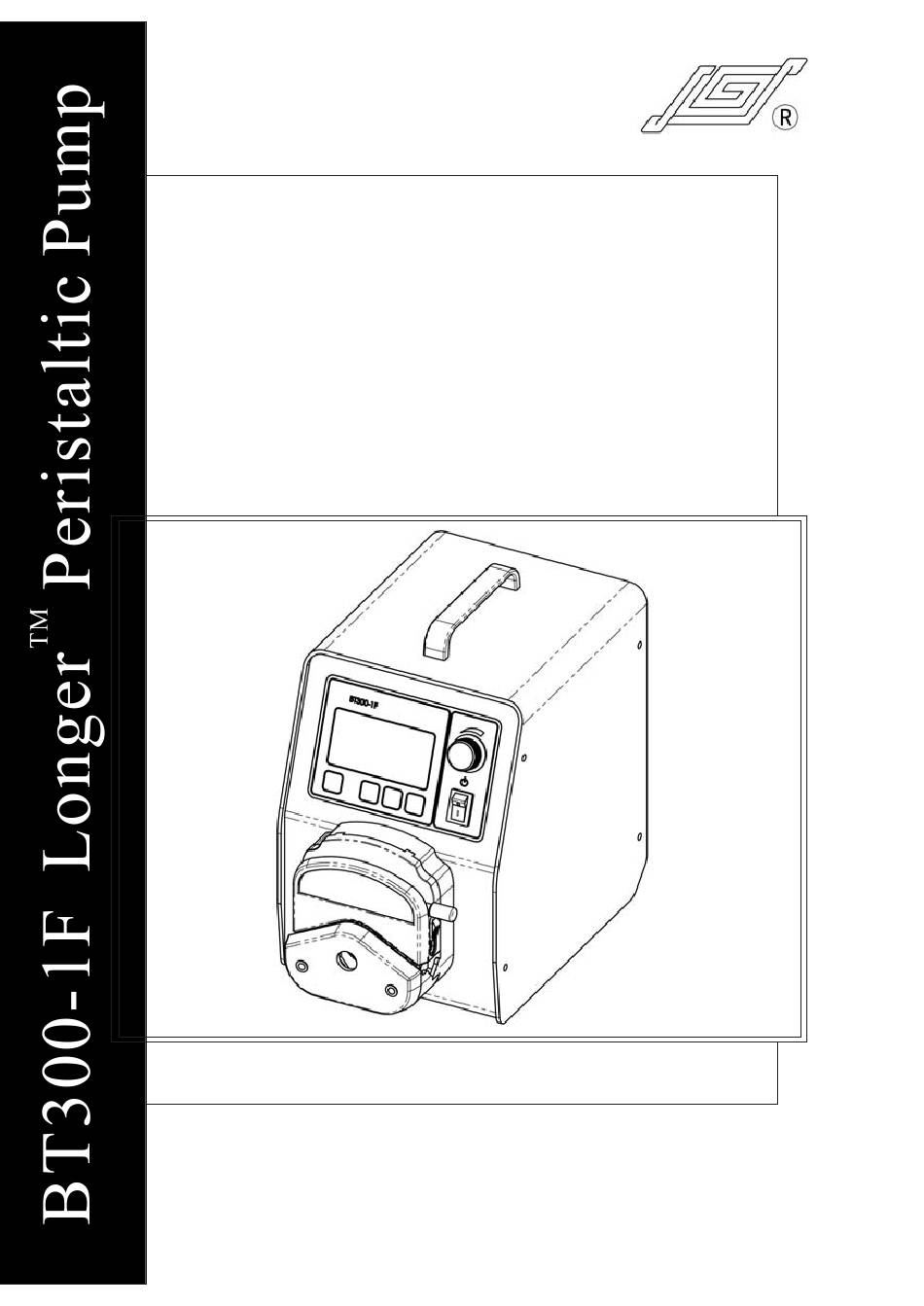

- Page 1 BT300-1F PERISTALTIC PUMP OPERATING MANUAL o n g e r Ba o i n g L P r e c i s i o n P u m p C o . , L t d .
- Page 2 BT300-1F OPERATING MANUAL IMPORTANT INFORMATION： Please read operation manual carefully before operation. WARNINGS： Tubing breakage may result in fluid being sprayed from pump. Use appropriate measures to protect operator and equipment. Please check the tubing frequently and change the tubing in time. If the power line or the plug is worn or damaged please pull out the plug (Hold the plug not the power line when pulling out).
-
Page 3: Table Of Contents
Table of Contents Introduction Operation Panel Basic Operation Start/Stop Key Direction Key Adjusting Knob Prime Key Exit Key Running Interface Menu Frame Work Function Setting Filling and Dispensing Setting Calibration Function System Setting Tubing I.D. Remote Control Pump I.D. Footswitch Back Suction Time Setting Pump Head Selection... -
Page 4: Introduction

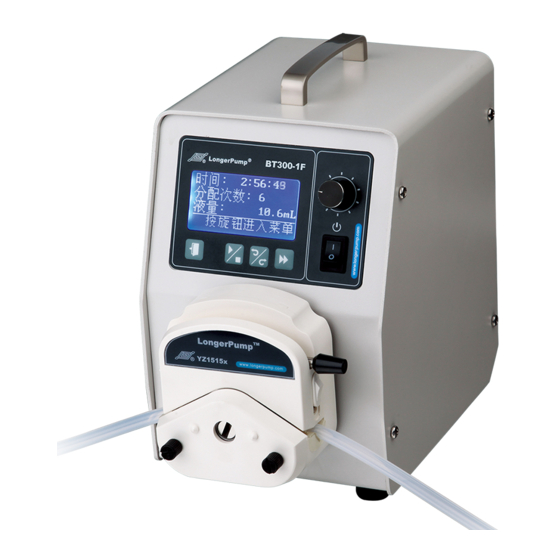

BT300-1F OPERATING MANUAL Introduction BT300-1F peristaltic pump is a multi-function peristaltic pump developed by our company. It can connect many pump heads. The flow rates are 0.005 - 1140 mL/min. 128 x 64 graphic LCD displays running menus and parameter setting menus. The display interfaces are friendly. -
Page 5: Operation Panel
BT300-1F OPERATING MANUAL Operation Panel Adjusting Knob Power Switch Exit Key Start/Stop Key Direction Key Prime Key Basic Operation Start/Stop Key Press the Start/Stop Key to start or stop the pump. Direction Key Press the direction key to change the rotation direction of the pump. -
Page 6: Running Interface
BT300-1F OPERATING MANUAL Running Interface Switch on the power switch, initialize the pump first and then display the running interface. rpm State 2 0:4 7:4 9 30 0 R P M I N T ID3.1 Flow Rates State 2 0:4 7:4 9 1.800mL/min I N T ID3.1... -
Page 7: Menu Frame Work
BT300-1F OPERATING MANUAL Menu Frame Work Running Interface 2 0 : 4 7 : 4 9 Fill Setting D isp Vol 1. 6mL ： 1.800mL/min ause Tim e 2" ： ID3.1 I N T C opy No. 4 ： 1 . 1 . TubingI.D.：ID2.4 3. -
Page 8: Filling And Dispensing Setting
BT300-1F OPERATING MANUAL Filling and Dispensing Setting Enter “Fill Setting” interface: 1. Other parameters can't be set here. Set the other parameters first and then go along the “Fill Setting”. Other parameters setting methods please see page 8 “System Setting”. 2. - Page 9 BT300-1F OPERATING MANUAL Pause Time: The pause time between two filling. Its range is 1s - 999s. In “Fill Setting” interface, press the Adjusting Knob enter the next interface. Turn the Adjusting Knob to highlight the “Pause time”. Press the Adjusting Knob to enter “Pause time”...
-
Page 10: Calibration Function
BT300-1F OPERATING MANUAL Flow: Adjust the dispensing and filling efficiency. Its range is determined by the pump head and tubing. In “Fill Setting” interface, press the Adjusting Knob to enter the next interface. Turn the Adjusting Knob to highlight the “Flow”. Press the Adjusting Knob to enter “Flow”... -
Page 11: System Setting
BT300-1F OPERATING MANUAL Flow Rate Calibration In “Calibration” interface, press the Adjusting Knob to enter “Test Time” setting interface. Turn the Adjusting Knob to set the test time. Its range is 1s 999s. Press the Adjusting Knob to enter the next interface. -
Page 12: Tubing I.d.：2 . 4
BT300-1F OPERATING MANUAL Running Interface Press the knob and 2 0 : 4 7 : 4 9 System Setting Tubing I.D.：2 . 4 Press the then turn 1.800mL/min Knob the knob ID3.1 I NT 3.1. Turn the Knob Turn the Turn the Footswitch ：... -
Page 13: Remote Control
BT300-1F OPERATING MANUAL 3.2 Remote Control Remote Control on or off setting. On: Remote control is permitted. Off: Remote control is forbidden. In “Remote Control” interface, press the Adjusting Knob to enter remoter control setting interface. Turn the Adjusting Knob select the corresponding state. -
Page 14: Footswitch
BT300-1F OPERATING MANUAL 3.4 Footswitch Set footswitch working mode. Gated: The pump runs as long as the footswitch is pressed. Trigger: Press footswitch, the pump starts running; Press footswitch again, the pump stops. In “Footswitch” interface, press the Adjusting Knob to enter footswitch setting interface. -
Page 15: Time Setting
BT300-1F OPERATING MANUAL Running Interface Press the Press the knob and 2 0 : 4 7 :4 9 knob and System Setting Back Suction ： then turn 1.800mL/min then turn ° the knob the knob ID3.1 I N T 3 . 5. Press the Knob Back Suction... -
Page 16: Control Mode
BT300-1F OPERATING MANUAL Running Interface Press the Press the knob and 20 : 4 7 : 4 9 knob and Pump Head： System Setting then turn 1.800mL/min then turn D G ( 6 - r o l l e r ) the knob the knob ID3.1... -
Page 17: Acceptable Pump Heads And Tubing
BT300-1F OPERATING MANUAL Acceptable Pump Heads and Tubing Pump Head Tubing Flow Rates (mL/min) ～ 0.07 1140 YZ1515 ～ 0.07 1140 YZ1515w ～ 0.07 1140 YZ1515x ～ 1.7 870 YZ2515 ） 2.4（ Inner Diameter ≤ ～ 0.005 30 ） 1.0（ Wall Thickness ≤... -
Page 18: Pump Head Mounting
BT300-1F OPERATING MANUAL Pump Head Mounting The pump head is mounted on drive before the pump leaves the factory. Follow below procedure for changing another pump head. 1. Loose the two M4 screws which connect the pump head and the drive. - Page 19 BT300-1F OPERATING MANUAL Analog Signal Input Function Set the “Remote Control” in “on” state. External Control Module is shown as below. External Control Module Note: Four kinds of standard external control module need to order separately according to special requirements. Terminal Definition of Standard External Control Module Analog speed control input, for external speed control in external control modules of 4 to 20 mA, 0 to 5V and 0 to 10 V.
- Page 20 Analog Signal Output Function Standard remote control module is shown as below. Output signal includes cw/ccw output, start/stop output, 0 - 5V voltage output. One side of the module is DB15 plug. Another side is wiring terminal. Insert the corresponding standard remote control module into the DB15 socket which is in the rear of the pump to get corresponding output signal.
-
Page 21: Optional Accessories
Optional Accessory Footswitch Connect to the external control interface. Control the start and stop of the pump. Note: Footswitch is optional accessories. It can only control the start and stop of the pump. The speed and direction of the pump are controlled by the knob and switch on the operation penal. -
Page 22: Technical Specifications
BT300-1F OPERATING MANUAL Technical Specifications Functions Applicable Pump Head: DG Series (DG-1, DG-2, DG-4), YZ Series Flow Rate Adjustment: Realize accurate flow rate adjustment function Flow Rate Calibration: Calibrate the setting flow rate to get accurate flow rate Speed Control: Realize accurate speed control through rotary coded switch Display: 128*64 graphic LCD displays current running status Prime: For fast filling and emptying... - Page 23 BT300-1F OPERATING MANUAL...
- Page 24 Baoding Longer Precision Pump Co.,Ltd ADD: Building A,Chuangye Center Baoding National High - Tech Industrial Development Zone Baoding,Hebei,China 071051 TEL: 86 - 312 - 3110087 3138553 FAX: 86 - 312 - 3168553 E - mail: longer@longerpump.com Http:www.longerpump.com...
