Home Accents Holiday 23RT16423141 Use And Care Manual

Safety Information
CAUTION:
Grasp the plug to insert or remove from the power source. Do not unplug by pulling on cord.
CAUTION:
The lighting string on this product is rated at 19.2 Watts (0.16 Amps) . Do not overload. Do not connect to another lighting string,
decorative outfit or other electrical products. Before you use or re-use this product inspect it carefully. Discard or return to place of purchase with
purchase receipt if the product has cuts, damage, frayed wire insulation on cords, cracks in the socket enclosures, loose connections, exposed
copper wire or other obvious damage.
Pre-Assembly
Carefully remove all the parts from the box and place them on the ground. Many parts are connected by the lighting
string that runs throughout the item. Take special care not to pull, cut or damage the lighting string. Read the entire
manual prior to assembly and identify all the parts included in the package against the parts list. It is recommended
to assemble parts of the product while lying flat on the ground or a flat surface, versus standing the item up to
assemble the parts. If any parts are missing or damaged do not attempt assembly but contact our customer service
center or return to place of purchase with purchase receipt,1-855-HDHoliday (1-855-434-6543)
Assembly of this product may require more than one person.

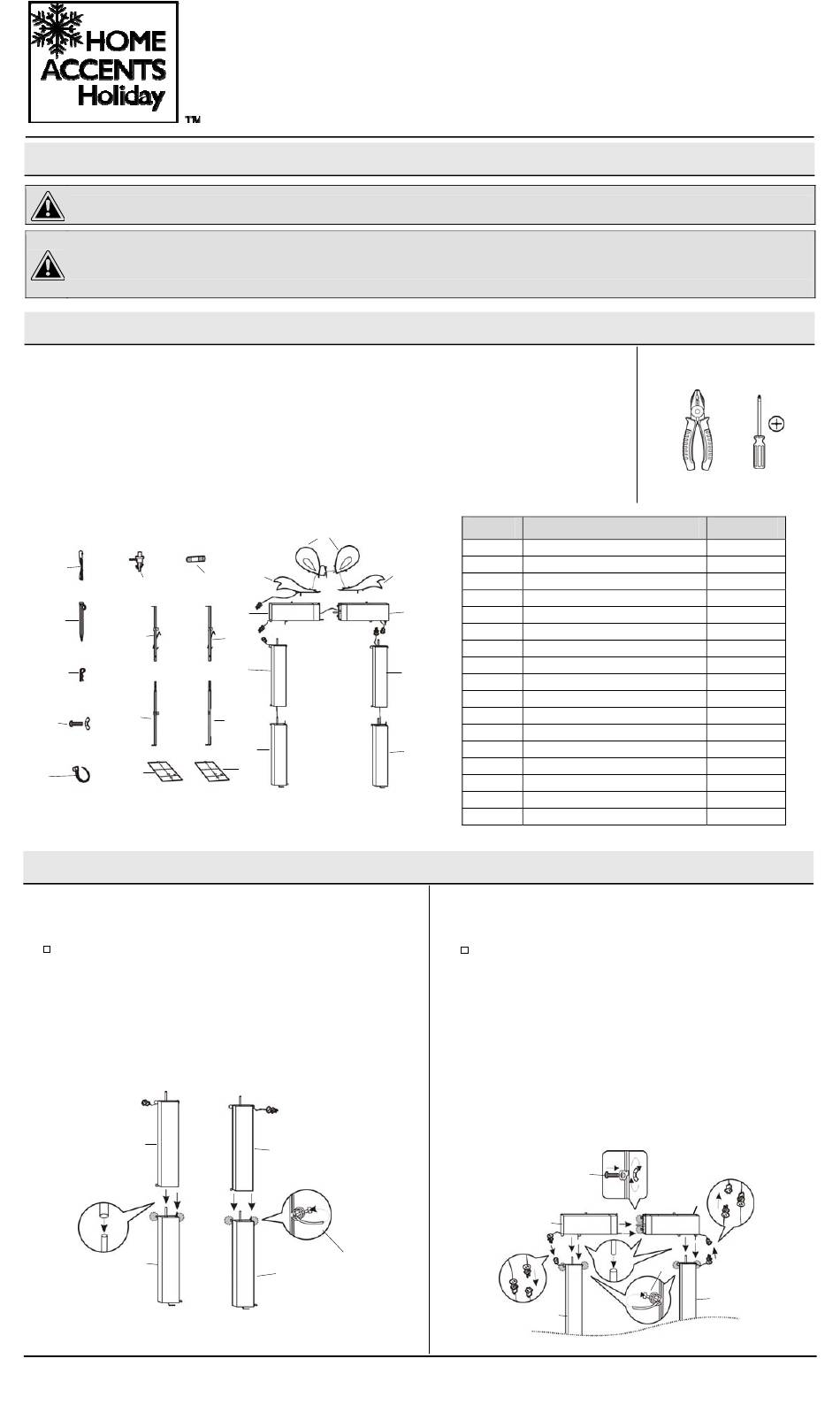

PACKAGE CONTENTS
M
L
N
I
O
J
P
H
Q
Assembly
1
Assembling the Upper Sections to Lower Sections
of Archway
Insert the connecting holes on the bottom of the Upper Right and
Left Sections of Archway (D, F) into the connecting rods on the top
of Lower Right and Left Sections of Archway (E, G). Insert the short
steel tube coming out of Lower Right and Left Sections of
Archway (E, G) to the steel tube inside the Upper Right and Left
Sections of Archway (D, F) and fasten at the connecting loops
with Plastic Ties (Q).
D
E
Use and Care Guide

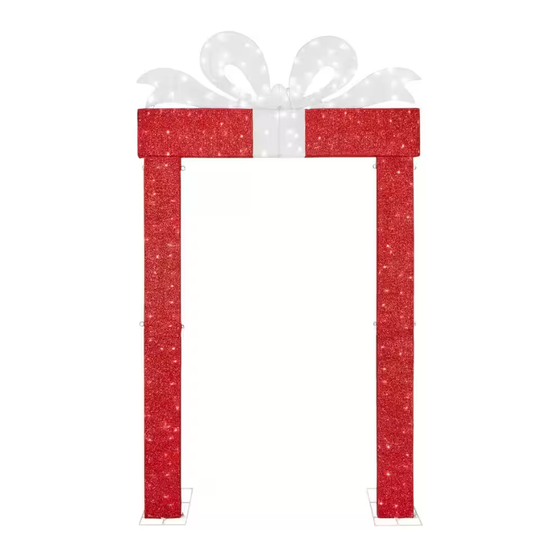

8.5 ft Yuletide Lane GIANT-SIZED
LED Present Archway
A
B
K
C
I
D
J
E
H
F
Q
G
Part Description
A Body of Top Bow
B Ribbon Legs on Top Bow
B
C Top Section of Archway
D Upper Right Section of Archway
C
E Bottom Right Section of Archway
F Upper Left Section of Archway
G Bottom Left Section of Archway
H Base Stand
F
I Upper Stabilizing Bar
J Bottom Stabilizing Bar
K Spare Fuse
L Spare Bulb
M Anchoring String
G
N Ground Stake
O Cotter Pin
P Bolt & Wingnut
Q Plastic Tie
2
Assembling the Left & Right Sections to Top Section
of Archway
Align the two halves of the Top Sections of Archway (C) with
each other. Insert the connecting rods on one half into the
connecting holes on the other half. Insert the short steel tube
coming out of Left Top Section of Archway to the steel tube
inside the Right Top Section of Archway then secure them
together at the connecting loops with the Bolt & Wingnut (P).
Insert the connecting rods on the bottom of Top Sections (C)
into the matching holes on Upper Left and Right Sections of
Archway (D, F). Insert the short steel tube coming out of Upper
Right and Left Sections of Archway to the steel tube inside the
Right and Left Top Sections (C) of Archway and fasten at the
connecting loops with Plastic Tie (Q). Connect the electrical
plug from Right and Left Sections (D, F) into the electrical
plug from the Top Section (C).
C
D
Please contact 1-855-HD-HOLIDAY (1-855-434-6543) for further assistance.
Item #1009537863
Model # 23RT16423141
TOOLS REQUIRED
Plier Screwdriver
Quantity
P
C
Q
F
HOMEDEPOT.COM
2
2
2
1
1
1
1
2
2
2
8
16
4
12
6
5
20
