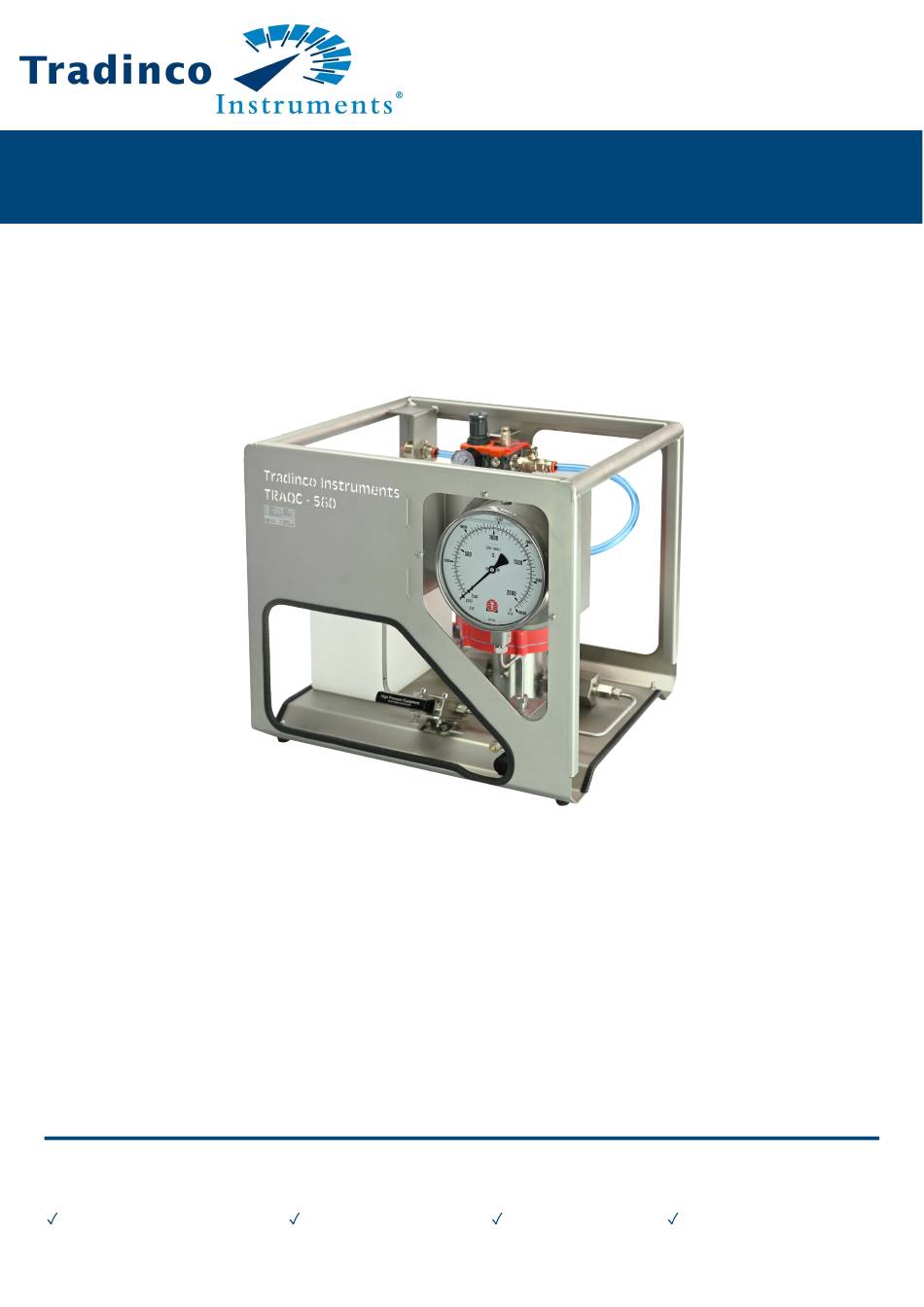

- Page 1 User manual Traqc-560 Version: 14-05-2024 Date: TRADINCO INSTRUMENTS OFFERS THE BEST SOLUTION FOR EVERY TEST, MEASURING AND CALIBRATION CHALLENGE IN THE INDUSTRY. LONG-TERM COOPERATION CALIBRATION SPECIALISTS CUSTOMER-ORIENTED BROAD PORTFOLIO...
-
Page 2: Table Of Contents
6 Commissioning of the test unit ..............10 7 Maintenance instructions ................10 8 Drawing ....................11 9 Specifications .................... 12 Tradinco Instruments | Radonstraat 250 | 2718 TB | Zoetermeer | The Netherlands +31 792033130 | sales@tradinco.com | www.tradinco.com... -
Page 3: General Information
Implementation of modifications to the product that are not supplied or implemented by TRADINCO INSTRUMENTS. TRADINCO INSTRUMENTS and its vendors will not be liable for any indirect, special, incidental or consequential damages irrespective of whether TRADINCO INSTRUMENTS or the vendor has advance notice of the possibility of such damages. -
Page 4: Introduction
In principle, safety installations may never be removed. The following consequences can take place when safety devices are removed: · Physical injuries (hearing damage, loss of sight.) · Danger to life. Tradinco Instruments | Radonstraat 250 | 2718 TB | Zoetermeer | The Netherlands +31 792033130 | sales@tradinco.com | www.tradinco.com... -
Page 5: Intended Use
· Safety helmet Intended use The Traqc-560 is specially designed to perform pressure tests up to a pressure of 370 bar. Improper use of the unit will void all warranty. The user is responsible for the damage caused. Proper use of the unit also implies that the operating instructions and the maintenance intervals indicated herein are carried out as described in this manual. -
Page 6: Work Instructions And Training
(see photo). A filter unit is mounted on the inside of the unit. Recommended filtration values of the air may be a maximum of 25 microns. Tradinco Instruments | Radonstraat 250 | 2718 TB | Zoetermeer | The Netherlands +31 792033130 | sales@tradinco.com | www.tradinco.com... -
Page 7: 2.1.1 Water Connection And Test Pressure Up To 370 Bar
Never test objects that have external visual damage or are in poor condition. Tradinco Instruments | Radonstraat 250 | 2718 TB | Zoetermeer | The Netherlands +31 792033130 | sales@tradinco.com | www.tradinco.com... -
Page 8: Transport
The unit is equipped with all control valves and control equipment required to perform a pressure test. The test unit has one high pressure test connection. Tradinco Instruments | Radonstraat 250 | 2718 TB | Zoetermeer | The Netherlands +31 792033130 | sales@tradinco.com | www.tradinco.com... -
Page 9: Test Systems
The max. drive pressure for this test pump is 7 bar. All pipes and hose material to the unit must not become trapped or have the possibility of kinks. Tradinco Instruments | Radonstraat 250 | 2718 TB | Zoetermeer | The Netherlands +31 792033130 | sales@tradinco.com | www.tradinco.com... -
Page 10: Commissioning Of The Test Unit
A service appointment must be made if pressure or water escapes from the exhaust silencer Tradinco Instruments | Radonstraat 250 | 2718 TB | Zoetermeer | The Netherlands +31 792033130 | sales@tradinco.com | www.tradinco.com... -
Page 11: Drawing
Drawing Tradinco Instruments | Radonstraat 250 | 2718 TB | Zoetermeer | The Netherlands +31 792033130 | sales@tradinco.com | www.tradinco.com... -
Page 12: Specifications
EN 61326-1 emission (group 1, class A) and immunity Low voltage directive EN 61010-1 Low voltage installations NEN-3140 RoHS EN 2011/65/EU with amendment EN 50581:2012 Tradinco Instruments | Radonstraat 250 | 2718 TB | Zoetermeer | The Netherlands +31 792033130 | sales@tradinco.com | www.tradinco.com...
