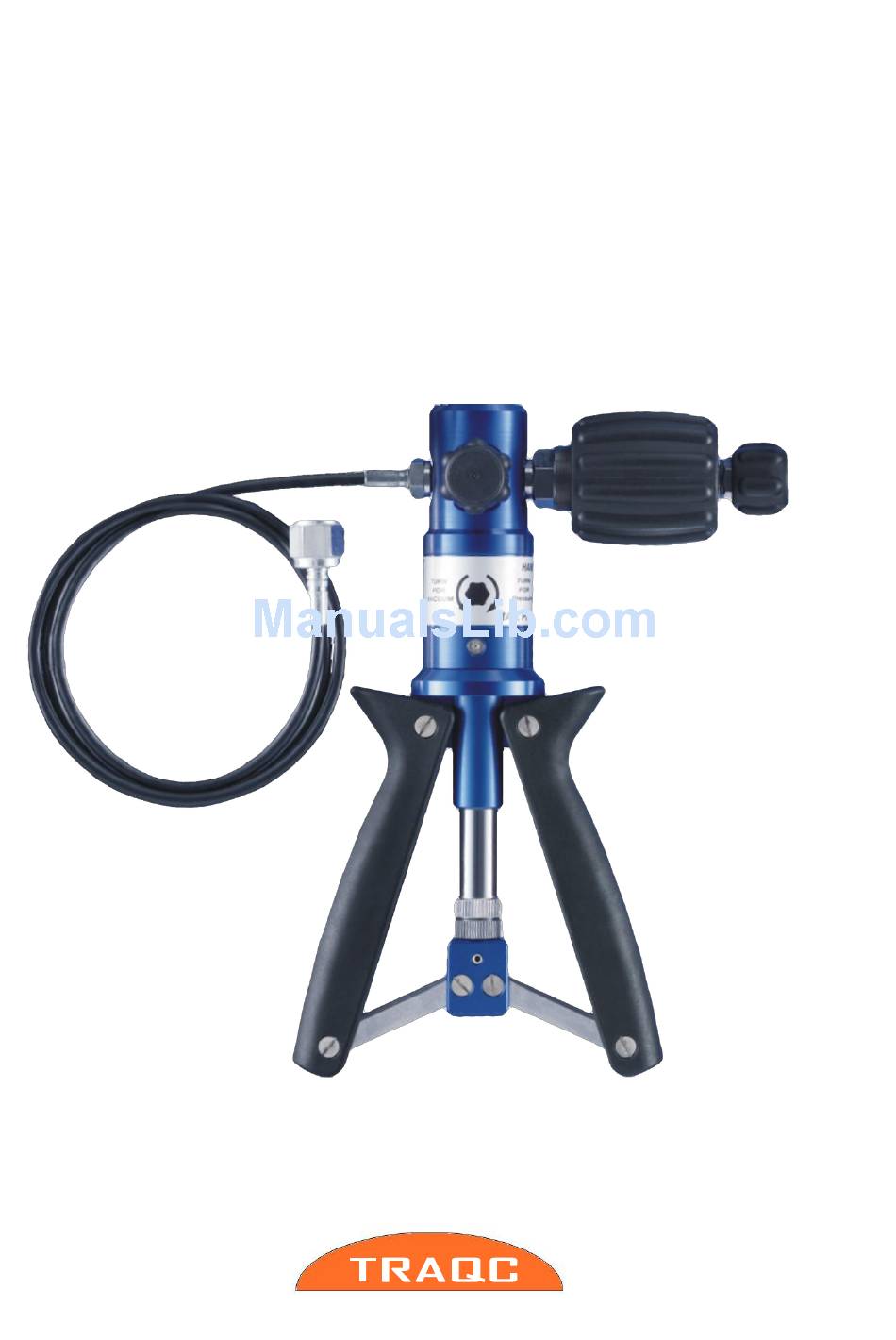

- Page 1 TRAQC-5 P Pneumatic Hand Pump Types P40 / P60 User Manual...
-
Page 2: Table Of Contents
Problems ................... 17 Maintenance/cleaning, storage and transportation ........18 10.1 Maintenance .................. 18 10.2 Cleaning ..................18 10.3 Storage and transportation .............. 18 Disposal .................... 19 Technical data and accessories ............20 page : 2 TRAQC-5 P40 / P60 07/2014 E... -
Page 3: Warranty
Implementation of modifications to the product that are not supplied or implemented by TRADINCO INSTRUMENTS. TRADINCO INSTRUMENTS and its vendors will not be liable for any indirect, special, incidental or consequential damages irrespective of whether TRADINCO INSTRUMENTS or the vendor has advance notice of the possibility of such damages. -
Page 4: About This Operating Manual
T +31 105112911 F +31 105115114 info@tradinco.com www.tradinco.com Tradinco Instruments India Pvt. Ltd. | Plot No2, Suyog Co. Op. Hsg. Society |Cross Gokhale Road, Shivaji Nagar | Pune 411 016 | India | info@tradinco.com | www.tradinco.com Hazard symbols and other symbols used:... -
Page 5: Device Description
The pressure hose is supplied from the factory already screwed onto the hand pump. The pressure hose should remain attached to the hand pump during operation, storage and transportation. Removing the pressure hose should be avoided. Operation manual. page : 5 TRAQC-5 P40 / P60 07/2014 E... -
Page 6: Accessories (Optional)
The delivered appliance is only guaranteed to operate safely if used for the intended purpose. The specified limits may not be exceeded under any circumstances. Before ordering and installation, check that the hand pump is suitable for your needs. page : 6 TRAQC-5 P40 / P60 07/2014 E... -
Page 7: Safety Instructions
In order to guarantee that the device operates safely, the operator must act competently and be conscious of safety issues. TRADINCO provides support for the use of its products either personally or via relevant literature. The customer verifies that our product is fit for purpose based on our technical information. -
Page 8: Special Safety Instructions
P40 / P60 4.3 Special safety instructions Warnings that are specifically relevant to individual operating procedures or activities can be found at the beginning of the relevant sections of this operating manual. page : 8 TRAQC-5 P40 / P60 07/2014 E... -
Page 9: Design And Function
The knurled nut is used to set the spring preload settings and limit the pumping range. page : 9 TRAQC-5 P40 / P60 07/2014 E... -
Page 10: Initial Setup
FIRST PUMPING PROCESS The first pumping process can require a large amount of energy due to adhesive forces. Carry out the first pumping process with the pressure relief valve open. page : 10 TRAQC-5 P40 / P60 07/2014 E... -
Page 11: Operation
The reference gauge is connected to the hand pump. The test item is joined to the pressure hose with the correct adapters and seals. All pressure connections are correctly in place, so that they resist pressure. page : 11 TRAQC-5 P40 / P60 07/2014 E... -
Page 12: Creating Pressure
Above 20 bar, creating Above 40 bar the important that the lower pressure becomes pressure should be hand grip is placed on a progressively more increased with the fine non-slip base. difficult. adjustment valve. page : 12 TRAQC-5 P40 / P60 07/2014 E... -
Page 13: Increasing Pressure With The Fine Adjustment Valve
When it is not under pressure the fine adjustment valve moves very freely. The wide handwheel of the fine adjustment valve can be moved into the needed position very easily using with the palm of the hand. page : 13 TRAQC-5 P40 / P60 07/2014 E... -
Page 14: Creating Vacuum
• Turn the handwheel of the valve in a clockwise direction to decrease the vacuum. • Turn the handwheel of the valve in an anti-clockwise direction to increase the vacuum. • Set the necessary testing vacuum by turning the wheel as needed. page : 14 TRAQC-5 P40 / P60 07/2014 E... -
Page 15: Pressure / Vacuum Measurements
The common reference models fit into the gaps in the transportation case and do not need to be removed. The pressure hose can also remain attached to the hand pump. It should generally never be removed. page : 15 TRAQC-5 P40 / P60 07/2014 E... -
Page 16: Practical / Usage Guidelines
) min. pump stroke ( ) Setting the fine adjustment valve: Pump body stop collar (▬▬) Storage / transportation (▬▬) Pressure relief valve stop collar (▬▬) page : 16 TRAQC-5 P40 / P60 07/2014 E... -
Page 17: Problems
Pumping stroke stiff. High counter pressure in the Increase the pressure with test item. the hand wheel of the fine adjustment valve. page : 17 TRAQC-5 P40 / P60 07/2014 E... -
Page 18: Maintenance/Cleaning, Storage And Transportation
Open the pressure relief valve. IMPORTANT! Do not store under pressure! Only store the hand pump with the pressure relief valve open. This ensures that no pressure can be built up by unintentional pumping movements. page : 18 TRAQC-5 P40 / P60 07/2014 E... -
Page 19: Disposal
The hand pump consists of various different materials and should not be disposed of with household waste. Take the hand pump to your local recycling plant Send the hand pump back to your supplier or to TRADINCO. page : 19 TRAQC-5 P40 / P60 07/2014 E... -
Page 20: Technical Data And Accessories
- Dimensions ~ 3,1 kg - Weight with pump Illustration (example): Hand pump with accessories and accessories Item No.: EPPM040KOFFE01 Pressure hose: Replacement pressure hose with seals Item No.: EPPM040SCHLA01 page : 20 TRAQC-5 P40 / P60 07/2014 E Rev. 1... - Page 21 User Manual TRAQC-5 P40 / P60 TRADINCO INSTRUMENTS Industrieweg 74 Postbus 37 2650 AA Berkel en Rodenrijs The Netherlands +31 (0)10 5112911 www.tradinco.com info@tradinco.com...
