Summary of Contents for Tradinco TRAQC-5 P1000

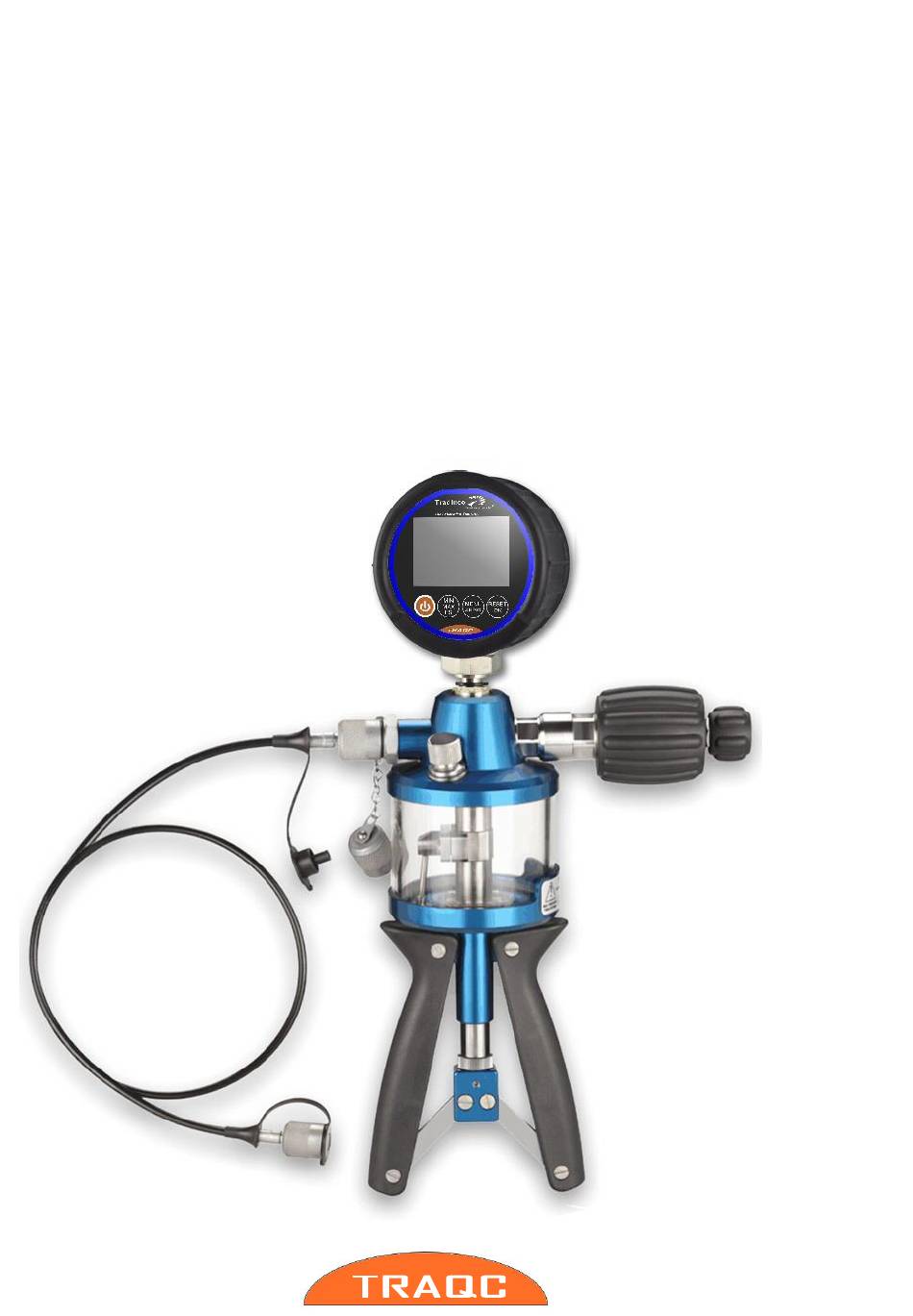

- Page 1 TRAQC-5 P1000 & TRAQC-1 DPG Hydraulic Hand Pump User Manual...
-
Page 2: Table Of Contents
Maintenance: ................. 22 Cleaning ..................22 Storage and transportation .............. 22 Disposal .................... 24 Technical data and accessories TRAQC-5 P1000 ........25 TRAQC-1 DPG ....................26 Introduction TRAQC-1 DPG ..............27 12.1 Notes on safety / production selection ..........27 12.2... - Page 3 TRAQC-5 P1000 16.10 Automatic power off ................ 37 16.11 Changing the unit ................38 16.12 Filter settings ................. 39 16.13 Display serial number ..............40 Technical data TARQC-1 DPG ............... 41 page : 3 TRAQC-5 P1000 & TRAQC-1 DPG rev.0...
-
Page 4: Warranty
Implementation of modifications to the product that are not supplied or implemented by TRADINCO INSTRUMENTS. TRADINCO INSTRUMENTS and its vendors will not be liable for any indirect, special, incidental or consequential damages irrespective of whether TRADINCO INSTRUMENTS or the vendor has advance notice of the possibility of such damages. -
Page 5: About This Operating Manual
Check the specified points or notices. information that is marked with this Reference to another section, symbol. document or source. Follow the specified instructions and • Item steps. Adhere to the given order. page : 5 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 6: Traqc-5 P1000
User Manual TRAQC-5 P1000 TRAQC-5 P1000 Pneumatic Hand Pump Types P1000 User Manual page : 6 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 7: Device Description
3.2 Scope of delivery and accessories Check the delivered items and ordered accessories. Hand pump. Pressure hose. Operation manual. Ordered accessories. page : 7 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 8: Accessories (Optional)
3.4 Intended use The TRAQC-5 P1000 hand pump can only be used for generating pressure in low-volume measuring devices. The device is only designed for use with hydraulic oil or demineralised water; other media will result in damage to the hand pump. -
Page 9: Exclusion Of Liability
At sufficiently large volumes, the reservoir may overflow. Never connect the TRAQC-5 P1000 directly to the hydraulic system with large volumes (construction machines, etc.) or an aggressive medium (such as brake liquid). -
Page 10: Safety Instructions
In order to guarantee that the device operates safely, the operator must act competently and be conscious of safety issues. TRADINCO provides support for the use of its products either personally or via relevant literature. The customer verifies that our product is fit for purpose based on our technical information. -
Page 11: Special Safety Instructions
Do not use the hand pump if it is damaged or defective. 4.3 Special safety instructions Warnings that are specifically relevant to individual operating procedures or activities can be found at the beginning of the relevant sections of this operating manual. page : 11 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 12: Construction And Function
For the assessment of the test sample, the pressure displayed on the reference manometer is compared with the measurement value. page : 12 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 13: Important Notes On Pressure Fluctuations
Settling times of reference and test sample: Observe the required waiting times after the reference and test sample have been switched on. More information on this can be found in the corresponding operating manual. page : 13 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 14: Commissioning With Ventilation
Check the TRAQC-5 P1000 carefully for damage. Never use the TRAQC-5 P1000 if you have found any damage. Return the device immediately to the manufacturer for repair. In order for the hand pump to be operated, it is vital that its connections with the reference gauge and the test item are pressure-resistant. - Page 15 The pressure hose and the test sample connection are now ventilated. CAUTION! Demineralised water! During the quality inspection of the TRAQC-5 P1000, a functional test is carried out with demineralised water. The reservoir may therefore contain residues of this liquid.
-
Page 16: Handling
Adhere to the maximum pressure of the test item! Only create an admission pressure with the hand grips that is lesser than the necessary testing pressure. Following this carefully increase the pressure using the fine adjustment valve. page : 16 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 17: Notes On Operation
In this way, you can create high pressures more easily and meter the pressure better. The higher the pressure is, the less you should open the handles. In the event of high pressures, avoid the initial position of the handles. page : 17 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 18: Hand Pump Operation
When it is not under pressure the fine adjustment valve moves very freely. The wide hand wheel of the fine adjustment valve can be moved into the needed position very easily using with the palm of the hand. page : 18 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 19: Pressure Measurements
Remove the test item with adapters and seals from the pressure hose. Put the hand pump away along with any accessories which have been used. ( § 9: Maintenance / cleaning, storage and transportation) page : 19 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... - Page 20 In the event of large-volume measurement devices or if hydraulic liquid has been refilled during pressure generation, liquid can leak through the safety valve. Carefully drain the pressure and note the fill level in the reservoir. page : 20 TRAQC-5 P1000 & TRAQC-1 DPG rev.0...
-
Page 21: Problems
Leakage in the test item. Check connections. (unstable). Check positioning of seals. Pumping stroke stiff. High counter pressure in the Increase the pressure with test item. the hand wheel of the fine adjustment valve. page : 21 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 22: Maintenance / Cleaning, Storage And Transportation
Check the seals and O-rings for fractures and wear before use. Replace defective or worn seals and O-rings. Visually inspect the TRAQC-5 P1000 and its components for damage. The inspection interval depends on the frequency of use, but at least once a year. - Page 23 Openings facing up: Ensure that the caps of the supply container and the refill bottle are properly closed and facing up when these items are stored. page : 23 TRAQC-5 P1000 & TRAQC-1 DPG rev.0...
-
Page 24: Disposal
The hand pump consists of various different materials. It should not be disposed of with household waste. Take the hand pump to your local recycling plant Send the hand pump back to your supplier or to TRADINCO. page : 24 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 25: Technical Data And Accessories Traqc-5 P1000
User Manual TRAQC-5 P1000 11. Technical data and accessories TRAQC-5 P1000 Type TRAQC-5 P1000 Pump with hose Pressure range: - Positive pressure 700 bar Medium: Hydraulic oil Demineralised water - Temperature range -10…60 °C (not freezing) * 0…60 °C (not freezing) -
Page 26: Traqc-1 Dpg
User Manual TRAQC-5 P1000 TRAQC-1 DPG Digital Pressure Gauge Type B 0.5% FS Type P 0.1% FS User Manual page : 26 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 27: Introduction Traqc-1 Dpg
For repairs or calibration of the measurement instruments, please contact TRADINCO. page : 27 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 28: Device Versions And Range Of Delivery
Measuring range Type B (0.5) Type P (0.1) -1…3 bar 0.5%FS -1…40 bar 0.5%FS 0.1%FS -1…60 bar 0.5%FS 0.1%FS 0…400 bar 0.5%FS 0.1%FS 0…700 bar 0.5%FS 0.1%FS 0…1000 bar 0.5%FS 0.1%FS page : 28 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 29: Commissioning
Batteries: 2 x 1.5 V (LR6 - AA) When in continuous operation (without light), the service life of the batteries is 1,500 hours. A battery symbol permanently displays the actual battery status. page : 29 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 30: Functions And Keys
Displays the upper limit of the scale (e.g. 400 bar) MENU Press for 2 seconds. Changes the unit. Auto Power Off – on/off. ZERO Zero point calibration. RESET Erases MIN and MAX values from the memory. Confirms the MENU functions. page : 30 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 31: Display Mode
Press the MENU key for 2 seconds to activate the functions menu. Press the MENU key again to select the next function. Press the OK key to save the function setting. The device then switches to the display mode. page : 31 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... - Page 32 User Manual TRAQC-5 P1000 page : 32 TRAQC-5 P1000 & TRAQC-1 DPG rev.0...
-
Page 33: Connection
The connection adapter (hex size 27) is approved up to nominal pressure of 1,000 bar. Please pay attention to built in test points acc. to rated nominal pressure and specified safety factor. page : 33 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 34: Operating
Auto Power Off function is active. Power off activates automatically after 5 minutes. This function can be altered in MENU. Display mode: ACT value displayed 16.2 Turn off (OFF) Press once (briefly) page : 34 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 35: Turn On Backlight
Erases MIN/MAX values. 16.7 OFL Display This indicates that the applied pressure is outside given full scale range. If the message will remain displayed, while the reference is pressure less, please consult TRADINCO. page : 35 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 36: Zero Point Correction (Zero)
Please ensure that no system pressure is being applied 16.9 Resetting the zero point correction Turn off the device. Zero point correction is no longer active when the device is turned off and on again. page : 36 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 37: Automatic Power Off
Auto Power Off is activated after 5 minutes. The device must be turned off manually. Caution! The settings Auto Power Off or Continuous operations remain stored and are active when the device is turned off and on again. page : 37 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 38: Changing The Unit
User Manual TRAQC-5 P1000 16.11 Changing the unit Press for 2 seconds. it is displayed Press it is displayed Press once (briefly) The next unit is indicated kg/cm page : 38 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 39: Filter Settings
P1000 Confirm unit selection. 16.12 Filter settings Press for 2 seconds. it is displayed Press it is displayed Press it is displayed Press once (briefly) The next filter selection is indicated page : 39 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 40: Display Serial Number
User Manual TRAQC-5 P1000 Confirm filter configuration 16.13 Display serial number Press it is displayed Display of serial number (1. line). Display of software version (2. line). page : 40 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... -
Page 41: Technical Data Tarqc-1 Dpg
20 bar -1…40 bar 80 bar 400 bar -1…60 bar 120 bar 550 bar 0…400 bar 800 bar 1700 bar 0…700 bar 1200 bar 2500 bar 0…1000 bar 1500 bar 2500 bar page : 41 TRAQC-5 P1000 & TRAQC-1 DPG rev.0... - Page 42 The Traqc-1 DPG meets the guidelines of the European Community (EU). It is confirmed that this product is approved acc. to following standards: DIN / EN 61000-6-2 DIN / EN 61000-6-3 Technical subject to change April 2011 page : 42 TRAQC-5 P1000 & TRAQC-1 DPG rev.0...
- Page 43 User Manual TRAQC-5 P1000 Tradinco Instrumenten-Apparaten b.v. Radonstraat 250 2718 TB Zoetermeer The Netherlands +31 79 2033133 www.tradinco.com info@tradinco.com page : 43 TRAQC-5 P1000 & TRAQC-1 DPG rev.0...
