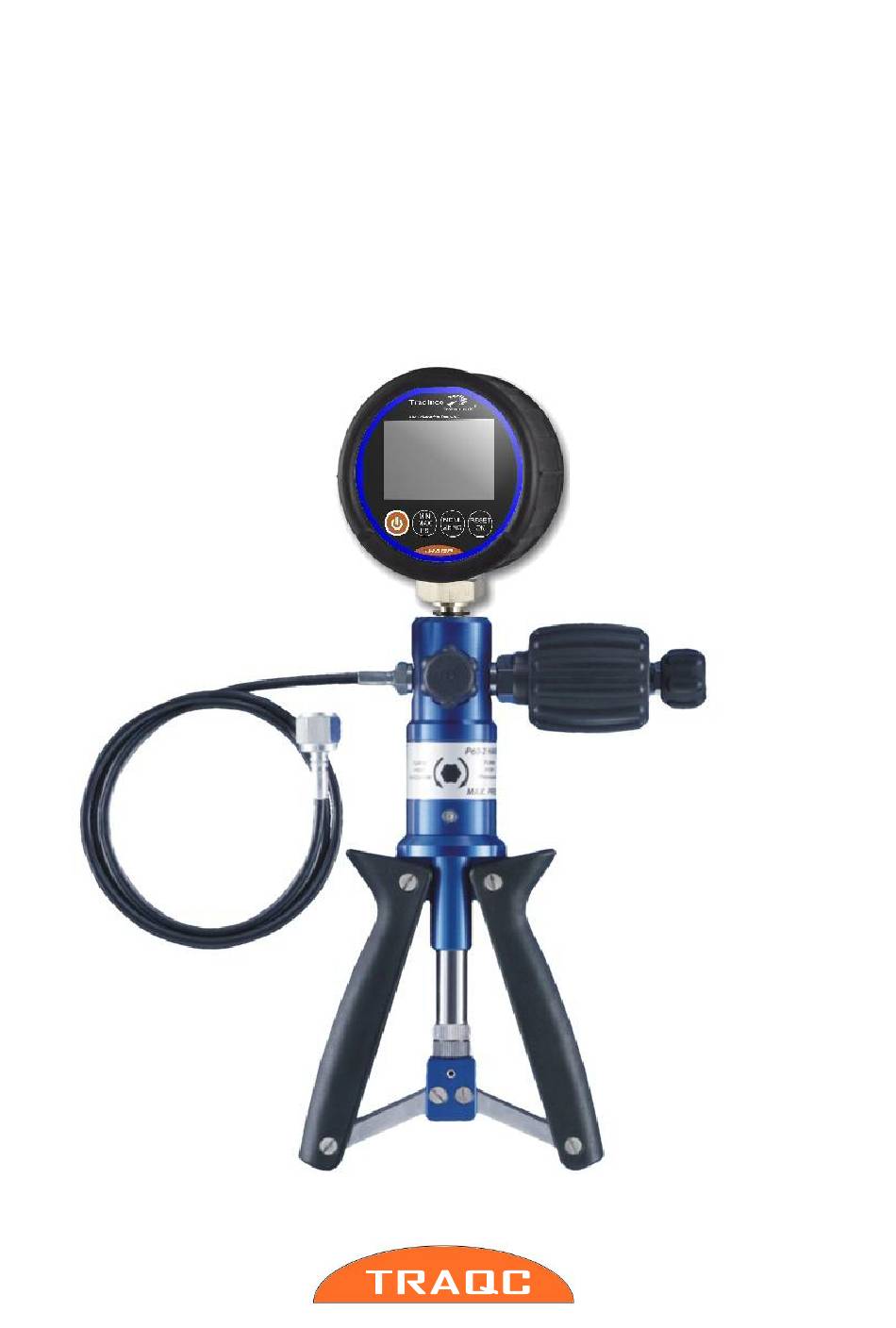

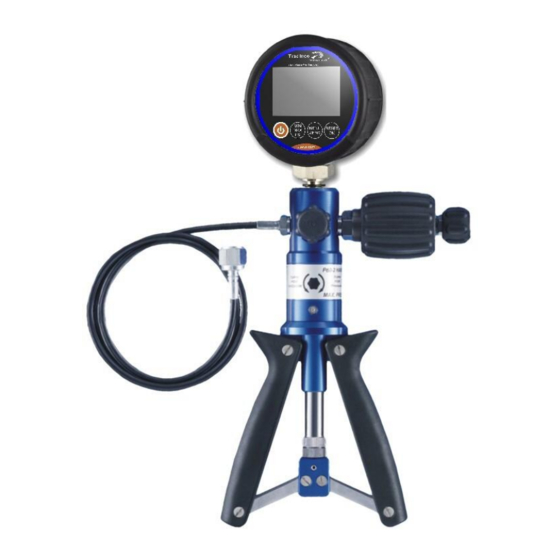

- Page 1 TRAQC-5 P & TRAQC-1 Pneumatic Hand Pump Types P40 / P60 & Digital Manometer User Manual...
-
Page 2: Table Of Contents
User Manual TRAQC-5 P40 / P60 Contents Warranty .................... 4 About this operating manual ..............5 TRAQC-5 P40/P60 .................... 6 Device description ................7 Scope of delivery and accessories ............7 Accessories (optional) ............... 7 Intended use ................... 8 Safety instructions ................9 Qualified personnel ................ - Page 3 User Manual TRAQC-5 P40 / P60 17.13 Display serial number ..............37 Technical data ................... 38 page : 3 TRAQC-5 P40 / P60 & TRAQC-1 rev. 0...
-
Page 4: Warranty
Implementation of modifications to the product that are not supplied or implemented by TRADINCO INSTRUMENTS. TRADINCO INSTRUMENTS and its vendors will not be liable for any indirect, special, incidental or consequential damages irrespective of whether TRADINCO INSTRUMENTS or the vendor has advance notice of the possibility of such damages. -
Page 5: About This Operating Manual
If the term 'pressure' is used in a very general way, then both positive pressure and negative pressure (vacuum) are intended. If you have any problems or questions, please contact your supplier or contact us directly: Tradinco Instrumenten-Apparaten b.v. Radonstraat 250 2718 TB Zoetermeer The Netherlands +31 79 2033133 www.tradinco.com... -
Page 6: Traqc-5 P40/P60
User Manual TRAQC-5 P40 / P60 TRAQC-5 P40/P60 Pneumatic Hand Pump Types P40 / P60 User Manual page : 6 TRAQC-5 P40 / P60 & TRAQC-1 rev. 0... -
Page 7: Device Description
User Manual TRAQC-5 P40 / P60 3. Device description The hand pump creates positive pressure or a vacuum for the inspection, adjustment or calibration of pressure devices of all kinds. The hand pump can be used for test items directly on location, thanks to its light weight and compact design. -
Page 8: Intended Use
User Manual TRAQC-5 P40 / P60 Transportation case (Item No.: HP40CASE01): The transportation case provides optimal protection for the hand pump and other accessories with its tight-fitting rigid foam inlay. A document compartment is located in the lid behind the burl foam inlay. ... -
Page 9: Safety Instructions
In order to guarantee that the device operates safely, the operator must act competently and be conscious of safety issues. TRADINCO provides support for the use of its products either personally or via relevant literature. The customer verifies that our product is fit for purpose based on our technical information. -
Page 10: Special Safety Instructions
User Manual TRAQC-5 P40 / P60 4.3 Special safety instructions Warnings that are specifically relevant to individual operating procedures or activities can be found at the beginning of the relevant sections of this operating manual. page : 10 TRAQC-5 P40 / P60 & TRAQC-1 rev. 0... -
Page 11: Design And Function
User Manual TRAQC-5 P40 / P60 5. Design and function Operating elements: Hand grips Fine adjustment valve (handwheel) Pressure relief valve (rotary knob) 'Pressure / vacuum' switch valve (rotary knob) Knurled nut (two parts with lock nut) Connectors: ... -
Page 12: Initial Setup
User Manual TRAQC-5 P40 / P60 6. Initial setup In order for the hand pump to be operated, it is vital that its connections with the reference gauge and the test item are pressure-resistant. The pressure hose is supplied already bolted on to the hand pump and should not be removed. CAUTION! Material damage! The test item must have absolutely nothing adhering to it (oil, grease, water ...). -
Page 13: Operation
User Manual TRAQC-5 P40 / P60 7. Operation Generating pressure and generating vacuum not only differ in their operating procedures and their range of settings, but also in the amount of energy needed to work the operating elements. Adhere to the following safety guidelines when operating the hand pump: CAUTION! Crushing hazard! During the pumping procedure ensure that fingers or other body parts are kept away from the area between the hand grips and the piston rod. -
Page 14: Creating Pressure
User Manual TRAQC-5 P40 / P60 Creating pressure As the counter pressure of the test item increases, more energy is needed for the pumping movements of the hand grips. CAUTION! Damage to test item! Adhere to the maximum pressure of the test item! Only create an admission pressure with the hand grips that is lesser than the necessary testing pressure. -
Page 15: Increasing Pressure With The Fine Adjustment Valve
User Manual TRAQC-5 P40 / P60 Pressure creation - operating steps Switch on reference gauge and test item (if necessary). Close pressure relief valve: •Turn the knob of the valve in a clockwise direction until the stop is reached. ... -
Page 16: Creating Vacuum
User Manual TRAQC-5 P40 / P60 Creating vacuum Vacuum creation - operating steps Switch on reference gauge and test item (if necessary). Close pressure relief valve: • Turn the knob of the valve in a clockwise direction until the stop is reached. -
Page 17: Pressure / Vacuum Measurements
User Manual TRAQC-5 P40 / P60 Pressure / vacuum measurements For adjustments, calibrations or an inspection of accuracy, it is vital that the test item and the reference have the same pressure / vacuum. The pressure / vacuum needed for the test points is built up and adjusted with the hand pump (... -
Page 18: Practical / Usage Guidelines
User Manual TRAQC-5 P40 / P60 8. Practical / usage guidelines Preloading the springs / stroke limitation: The preloading of the springs changes how much power the hand grips have to reset themselves. The stroke limitation changes the size of the pumping strokes and therefore the pumping volume of the hand pump. -
Page 19: Problems
User Manual TRAQC-5 P40 / P60 9. Problems CAUTION! Material damage! The hand pump cannot be repaired by the user. In case of a defect, the device must be replaced or returned to the manufacturer for repair. Never open up the hand pump and / or perform any repairs yourself. The following table details what problems you can solve yourself and how to solve them. -
Page 20: Maintenance/Cleaning, Storage And Transportation
User Manual TRAQC-5 P40 / P60 10. Maintenance/cleaning, storage and transportation 10.1 Maintenance No maintenance is required for the hand pump and it cannot be repaired by the operator either. In the case of a defect the appliance must be sent back to the manufacturer for repair. -
Page 21: Disposal
The hand pump consists of various different materials and should not be disposed of with household waste. Take the hand pump to your local recycling plant Send the hand pump back to your supplier or to TRADINCO. page : 21 TRAQC-5 P40 / P60 & TRAQC-1 rev. 0... -
Page 22: Technical Data And Accessories
User Manual TRAQC-5 P40 / P60 12. Technical data and accessories TRAQC-5 P40/P60 Type Traqc-5 P40 Traqc-5 P60 Pump with hose Pressure range: 40 bar 60 bar - Positive pressure - Vacuum -0.95 bar -0.95 bar Medium: Connection: G ¼ - Reference - Test item Pressure hose (1 m) with cap screw G ¼... -
Page 23: Traqc-1 Dpg
User Manual TRAQC-1 DPG TRAQC-1 DPG Digital Pressure Gauge Type B 0.5% FS Type P 0.1% FS... -
Page 24: Introduction Traqc-1 Dpg
For repairs or calibration of the measurement instruments, please contact TRADINCO. page : 24 TRAQC-5 P40 / P60 & TRAQC-1 rev. 0... -
Page 25: Device Versions And Range Of Delivery
User Manual TRAQC-1 DPG 13.2 Device versions and range of delivery Basic setting to unit ‘bar’ Pressure connection, male thread G1/4 Measuring range Type B (0.5) Type P (0.1) -1…3 bar 0.5%FS -1…40 bar 0.5%FS 0.1%FS -1…60 bar 0.5%FS 0.1%FS 0…400 bar 0.5%FS 0.1%FS... -
Page 26: Commissioning
User Manual TRAQC-1 DPG 14. Commissioning The Traqc-1 digital Pressure gauge is supplied with batteries fitted. The device is operational as soon as it is turned on. 14.1 Replacing the batteries Caution! Turn off the device before replacing the batteries. Open the battery compartment. -
Page 27: Functions And Keys
User Manual TRAQC-1 DPG 15. Functions and keys 15.1 Display 4 ½ digit LCD with backlight Displays measurement values and menu functions Bargraph with Peak & Hold function Actual value display (15 mm) MIN/MAX or Full Scale (8 mm) ... -
Page 28: Display Mode
User Manual TRAQC-1 DPG 15.3 Display mode The actual pressure (ACT) is indicated in the display mode. The ACT measured value is displayed in the corresponding unit. The MIN, MAX or FS values is indicated in the lower part of the display. Display Discription Bargraph... - Page 29 User Manual TRAQC-1 DPG page : 29 TRAQC-5 P40 / P60 & TRAQC-1 rev. 0...
-
Page 30: Connection
User Manual TRAQC-1 DPG 16. Connection The Traqc-1 digital pressure gauges are delivered with male thread G1/4 (BSPP). When fitting directly, please ensure the references can be rotated freely. Caution! Observe specified torques of 25 Nm when fitting the references. The spanner size of the pressure connection is 27 mm. -
Page 31: Operating
User Manual TRAQC-1 DPG 17. Operating 17.1 Turning on (ON) A self-test procedure is carried out The measuring range is indicated (FS), Unit (bar) Auto Power Off function is active. Power off activates automatically after 5 minutes. This function can be altered in MENU. Display mode: ACT value displayed 17.2 Turn off (OFF) -
Page 32: Turn On Backlight
17.7 OFL Display This indicates that the applied pressure is outside given full scale range. If the message will remain displayed, while the reference is pressure less, please consult TRADINCO. page : 32 TRAQC-5 P40 / P60 & TRAQC-1 rev. 0... -
Page 33: Zero Point Correction (Zero)
User Manual TRAQC-1 DPG 17.8 Zero point correction (ZERO) The zero point can be corrected manually should undesired deviations occur when no system pressure is being applied (atmospheric pressure). Caution! The zero point correction sets the current ACT value to zero. In order exclude erroneous measurements, ensure no system pressure is being applied when carrying out this function. -
Page 34: Automatic Power Off
User Manual TRAQC-1 DPG 17.10 Automatic power off Press for 2 seconds Depending on the device configuration, two different displays are possible: Auto Power Off Continuous operations PO On PO OFF Press „RESET / OK“: Press „RESET / OK“: Auto Power Off is activated after 5 minutes. The device must be turned off manually. -
Page 35: Changing The Unit
User Manual TRAQC-1 DPG 17.11 Changing the unit Press for 2 seconds. it is displayed Press it is displayed Press once (briefly) The next unit is indicated kg/cm page : 35 TRAQC-5 P40 / P60 & TRAQC-1 rev. 0... -
Page 36: Filter Settings
User Manual TRAQC-1 DPG Confirm unit selection. 17.12 Filter settings Press for 2 seconds. it is displayed Press it is displayed Press it is displayed Press once (briefly) The next filter selection is indicated page : 36 TRAQC-5 P40 / P60 & TRAQC-1 rev. 0... - Page 37 User Manual TRAQC-1 DPG Confirm filter configuration 17.13 Display serial number Press it is displayed Display of serial number (1. line). Display of software version (2. line). page : 37 TRAQC-5 P40 / P60 & TRAQC-1 rev. 0...
- Page 38 User Manual TRAQC-1 DPG 18. Technical data TRAQC-1 Version Traqc-1 Digital pressure gauge with ACT - MIN and MAX Display Bargraph display 33 segments (with peak and hold function) 4 ½ digit LC display (15 mm) with back light illumination (50 x 34 ...
- Page 39 User Manual TRAQC-1 DPG Caution! Exceeding the maximum overload values (Pmax) can lead to malfunctions and result in the digital pressure gauge being destroyed. The Traqc-1 DPG meets the guidelines of the European Community (EU). It is confirmed that this product is approved acc. to following standards: ...
- Page 40 User Manual TRAQC-1 DPG Tradinco Instrumenten-Apparaten b.v. Radonstraat 250 2718 TB Zoetermeer The Netherlands +31 79 2033133 www.tradinco.com info@tradinco.com page : 40 TRAQC-5 P40 / P60 & TRAQC-1 rev. 0...
