- Page 1 265 Open Owner’s Manual Model Year 2025 Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 • cobiaboats.com (772)-465-0631...
-
Page 2: Table Of Contents
Location and Reordering of Warning Labels ..................33 Location and Reordering of Warning Labels ..................34 Cobia 265 Open Hull Wire Harness ....................35 Cobia 265 Open Fwd Deck Wire Harness ................... 36 Cobia 265 Open Aft Deck Wire Harness .................... 37 Warranty ............................39 Maverick Boat Group 3207 Industrial 29th St. -
Page 3: Cobia 265 Open Specifications
Cobia 265 Open Specifications L.O.A........................26’ 05” BEAM..............………………….…....9’ 05” DRAFT........................21” WEIGHT W ENGINE..................6,450 LBS. FUEL CAPACITY....................161 GAL. DEADRISE @ TRANSOM..................21 DEG. MAXIMUM H.P......................500 TRANSOM HEIGHT……………………………………………...……………….. 25” TWINS Designated Occupency Position Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 •... -

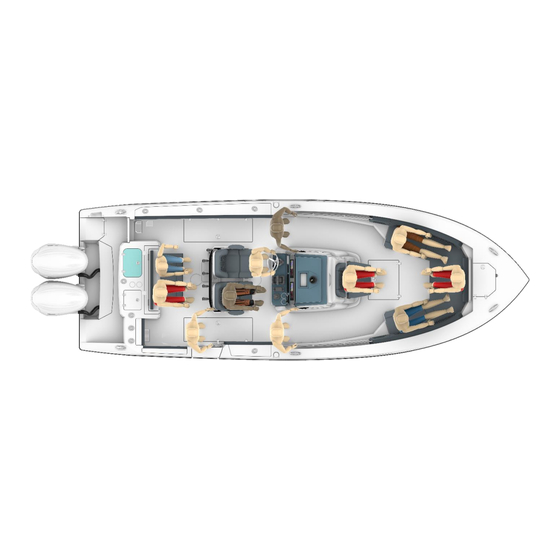

Page 4: 265 Open Deck Layout
265 Open Deck Layout Anchor Locker Port Fwd Seat Stbd Fwd Seat Fwd Bilge Stbd Fish Box Port Fish Box Aft Seat Bilge Access Livewell Aft Storage Bin Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 •... -
Page 5: Pre-Operation Checklist
Pre-Operation Checklist We recommend you print this document and store it at the helm station. Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 • cobiaboats.com (772)-465-0631... -
Page 6: Maintenance & Cleaning
Maintenance Cobia advises owners that maintenance and repairs should be performed at an authorized Cobia Dealer. The following information is general in nature and should not be considered a repair manual or guidelines set forth by Maverick Boat Group. Cleaning Each Cobia boat is constructed using the finest materials and components available. - Page 7 Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 • cobiaboats.com (772)-465-0631...
-
Page 8: Engine Break-In Period
DO NOT operate the boat if the engine stop switch system does not function properly. Go to a Cobia Dealer to have this resolved immediately. The lanyard should be securely attached to the boat operator at all times that the engine is on. -
Page 9: Helm & Command Link Gauges
Navigation Lights Your Cobia 265CC is equipped with port and starboard navigation lights and an anchor light. Navigation and anchor lights should not be modified, and additional lights should not be added such that they diminish the visibility of navigation lights or could be confused with navigation lights. -
Page 10: Cobia Duffel Bag
Hardtop and Radar o Expiration Year: 2043 Cobia Duffel Bag Along with your boat, you received a Duffel Bag with your new Cobia. Inside the Duffel Bag are the following items: o Livewell Standpipe o 2 ignition Keys and Emergency Kill Cord /Engine Stop Lanyard o Various Accessories Manuals Fuel-Water Separator &... -
Page 11: Garboard Drain Plug
Maintenance Note: Yamaha recommends replacing the 10- micron fuel filter on new boats after the first 10 hours or 1 month of operation and every 50 hours or every 6 months thereafter. In areas of high humidity where water in fuel supplies is a problem or extensive engine operation occurs, more frequent replacement may be necessary. - Page 12 Bilge Access Bilge The bilge of your Cobia should always be checked before and after a launch. While checking the bilge, note that a small amount of water in the bilge is normal. However, a large amount of water or any signs of fuel or oil requires immediate attention. If such a situation exists, the boat should be taken to a certified marine technician immediately.
-
Page 13: Systems
If the bilge pump does not come on when the float switch is submerged, attempt to manually turn it on through your switch panel. If the bilge pump comes on and evacuates the water, it is clear that the float switch is not functioning properly. If the bilge pump does not come on via the switch panel, check the breaker panel inside the console to see if a breaker has been tripped. - Page 14 265 Deckdrain System The deckdrain system is equipped with 1 1/2” thru hull fittings through the aft port and starboard hull sides. These fittings have to be installed lower than the drains in the cockpit floor so that gravity will allow the cockpit to drain free of water. This puts these fittings very close to the water line of the hull.
- Page 15 Console/Head Access Located at the top on the inside of the console/head access door is a locking gas shock that aides in opening the door and keeping the door open once the shock is fully extended. With the door fully opened, it can only be closed by releasing the pressure of the metal sleeve on the door side against the shock that is mounted to the console.
- Page 16 The Jabsco Y-Valve is designed to provide flexibility of onboard waste management by diverting waste either to the dockside pump-out fitting or directly overboard where legal to do so. Check local and federal regulations to determine where direct overboard discharge of untreated waste is permitted. Some near shore areas and inland areas are designated as "No- Discharge Zones"...
-
Page 17: Ladder & Props
Ladder & Props Stainless Boarding Ladder This Cobia model comes standard with a telescoping stainless-steel boarding ladder integrated into the port aft platform area. This provides a stepping area while the ladder is in the up position. Once the ladder is down and in the extended position, close the lid cover for safe and secure entry and exit via the ladder. -
Page 18: Fuel System
Fuel System Fuel System The Cobia 265 Open comes equipped with a 161- gallon fuel cell stationed below the leaning post between the stringer system. Every fuel tank is pressure tested at the factory before and after installation. Should you experience any fuel related problems or suspect problems with the fuel system, immediately take your boat to a Cobia Dealer. -
Page 19: Livewell System
Continuous or periodic running of the automatic bilge pump may be an indication of a hose leak or break in a seal and should be investigated by a Cobia Dealer immediately. Refer to page 10 for further information regarding bilge pump operation and maintenance. -
Page 20: Rod Storage & Fish Lockers
Rod Storage & Fish Lockers Rod Storage The 265 Open model comes standard with under gunwale rod racks on both the port and starboard sides. These give you space to safely store an additional 6 rods for your fishing needs. Port and Starboard Fish Lockers Starboard Gunwale Storage Rack The 265 Open has two 46-gallon fish lockers built... -
Page 21: Anchor Locker
Anchor Locker Trim Tabs Trim Tabs Bennett trim tabs are standard on your new Cobia. Integrated electric trim tabs can enhance the performance of your boat. The tabs are electric and therefore do not require a trim tab pump. By not having a pump there is no possibility of fluid leaks from a pump. -
Page 22: Water System
Water System Raw Water Washdown Salt water washdown is standard on the 265 Open model. The pump is located in the port bilge and is accessible through the flip up seat opening. To operate, hook a hose to the salt water receptacle located by the transom gate above the port deck drain. -
Page 23: Battery Switch And Main Distribution Panel
Battery Switch and Main Distribution Panel The battery switches and main distribution panel are located on the starboard side of the leaning post. The battery switches are labeled to correspond with each battery and the component it powers. Each engine has its own battery and there is a house battery that powers the boat’s other electrical systems. -
Page 24: Battery Access
Cranking Battery Access House Battery Access 12-Volt Accessory Plug The Cobia 265 Open comes with 4 12-volt accessory plugs standard on the boat. The plugs are located in the forward cubbies by the forward seating, the port side of the glovebox, and under the aft end of the starboard gunnel. - Page 25 Pictured is Premium Helm Seat Option 265 Aft Seating To deploy the standard aft seat, grab the seat and pull down. Once the seat begins to swing open push on the topside of the cushion straight down until the seat is fully horizontal and locks in place.
-
Page 26: Standard Features
To recess these items simply push them back into the deck. As with all stainless moving parts on your Cobia, it is recommended that you routinely apply a stainless safe corrosion inhibitor and lubricant to keep these items working properly. -
Page 27: Optional Features
Optional Features Optional Battery Charger A 4-bank and 3-bank battery charger are options for the 265 Open. The 4-bank will allow charge to the cranking and house batteries, while the 3-bank battery charger will charge the optional trolling motor batteries. The 4-bank charger is mounted in the leaning post and can be accessed via the battery storage door underneath the helm seat. - Page 28 Hardtop The Cobia 265 Open has an optional fiberglass hardtop that comes with an integrated glass enclosure to help keep out the elements. The hardtop is equipped with forward and aft spreader lights and overhead lights that can be changed from white light to blue.
- Page 29 Optional JL Stereo System If you chose the stereo option, your 265 CC came with a JL Audio Media Master 105 with six matching JL audio speakers (ten matching speakers if hard-top option is chosen) and two matching subwoofers. Please refer to the JL Audio Owner’s Manual in your ditty bag for operation.
- Page 30 Please review the manufacturer’s operating instructions on the following pages before using your windlass. Additional information can be found in the Lewmar owner’s manual. WARNING: READ ALL INSTRUCTIONS BEFORE OPERATING WINDLASS DO NOT USE THE WINDLASS TO DRAG THE BOAT TO YOUR ANCHOR. THE PROPER METHOD IS TO USE YOUR BOATS OWN POWER TO POSITION YOURSELF RIGHT ABOVE THE ANCHOR AND THEN USE THE WINDLASS TO HAUL THE ANCHOR.
- Page 31 Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 • cobiaboats.com (772)-465-0631...
- Page 32 Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 • cobiaboats.com (772)-465-0631...
- Page 33 Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 • cobiaboats.com (772)-465-0631...
-
Page 34: Location And Reordering Of Warning Labels
Location and Reordering of Warning Labels IF LABEL IS DAMAGED, REMOVED, OR LOST, IF LABEL IS DAMAGED, REMOVED, OR LOST, REPLACE WITH NEW LABEL, PART NO. 59118503, REPLACE WITH NEW LABEL, PART NO. 59118506, IF LABEL IS DAMAGED, REMOVED, OR LOST, AVAILABLE FROM DEALER OR MANUFACTURER. -
Page 35: Location And Reordering Of Warning Labels
Location and Reordering of Warning Labels IF LABEL IS DAMAGED, REMOVED, OR LOST, IF LABEL IS DAMAGED, REMOVED, OR LOST, REPLACE WITH NEW LABEL, PART NO. 59118502, REPLACE WITH NEW LABEL, PART NO. 59110900, AVAILABLE FROM DEALER OR MANUFACTURER. AVAILABLE FROM DEALER OR MANUFACTURER. INSTALL ON TRANSOM INSTALL NEAR FUEL FILL IF LABEL IS DAMAGED, REMOVED, OR LOST,... -
Page 36: Cobia 265 Open Hull Wire Harness
Cobia 265 Open Hull Wire Harness 1. Head Macerator 12. Bilge Hatch Actuator 2. Hull/Deck Connection 13. Aft Bilge Pump 3. Hull/Con Connection 14. Aft Bilge Float Switch 4. Battery Switch Panel 15. Bilge Compartment Lt 5. Deep Drop Brakers 16. -
Page 37: Cobia 265 Open Fwd Deck Wire Harness
Cobia 265 Open Fwd Deck Wire Harness 1. Fwd Compartment Lt 2. Stbd Fwd Speaker 3. Stbd Fwd USB Port 4. Stbd Subwoofer 5. Stbd Compartment Lt 6. Hull/Deck Connection 7. Stbd Midship Speaker 8. Stbd Undergunnel Lt 9. Port Undergunnel Lt 10. -
Page 38: Cobia 265 Open Aft Deck Wire Harness
Cobia 265 Open Aft Deck Wire Harness 1. Starboard Aft Undergunnel Light 6. Port Aft Undergunnel Light 2. Starboard Aft Speaker 3. Starboard Aft USB 4. Hull and Deck Connection 5. Port Aft Speaker Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 •... - Page 39 Maverick Boat Group 3207 Industrial 29th St. • Fort Pierce, Florida 34946 • cobiaboats.com (772)-465-0631...
-
Page 40: Warranty
Warranty Cobia Boats are NMMA Certified and offer superior “no wood” construction. All Cobias are backed by a no-nonsense, 10-year limited warranty. Cobia Boats advises owners that an authorized Cobia Dealer perform maintenance and repairs on your boat. Self repairs and repairs done by a non- authorized Cobia Dealer may void the warranty on the boat.
