4-Channel Mini Wireless
Microphone Series
四通道迷你麦克风系列
BY-V4
BY-V4U
BY-V4D
User Manual
用户手册

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BY-V4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Boya BY-V4

  • Page 1 4-Channel Mini Wireless Microphone Series 四通道迷你麦克风系列 BY-V4 BY-V4U BY-V4D User Manual 用户手册...
  • Page 2: General Introduction

    The BY-V4 series come with various configurations for you to choose from depending on your device interface. This manual is for all BY-V4 series packages. The BY-V4 package features a 3. 5mm TRS analog audio output for cameras, mixers, etc. The BY- V4U package features a USB-C digital audio output for USB-C smartphones, tablets, computers, and other mobile devices.
  • Page 3 In the BY-V4U package and the BY-V4D package, you can enable your mobile device’ s speaker without unplugging the receiver. Furthermore, the BY-V4 series operate on the 2.4 GHz spectrum and automatically hop to free channels to avoid static noise and audio dropouts.

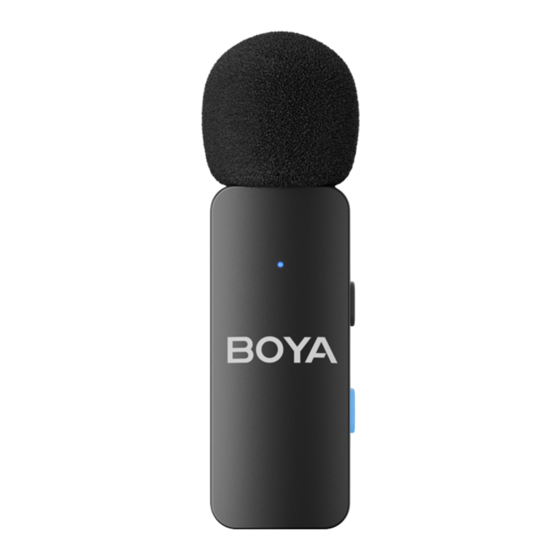

  • Page 4 Product Structure Wireless Transmitter (BY-V4-TX) ❶ Built-in Microphone ❷ Indicator Status Indicator Unpaired Blinking blue and red alternately Pairing Blinking blue rapidly Paired successfully Static blue Microphone Muted Blinking blue slowly Noise cancellation enabled Static green Low battery Blinking red...
  • Page 5 Note: •If charging the unit when it is ON, the indicator will display the current working status instead of charging status. •Please charge the transmitter when the indicator indicates low battery status, or itwill automatically shut off within 10 minutes. •The noise cancellation feature cannot be enabled or disabled when the microphone is muted.
  • Page 6 USB-C Receiver (BY-V4-RXU) ❶ USB-C Connector It can be connected to a smartphone, tablet, computer, or other mobile device featuring a USB-C port. ❷ USB-C Charging Port When the receiver is plugged into an external device, the external device can be powered via this charging port.
  • Page 7 Lightning Receiver (BY-V4-RXD) ❶ Lightning Connector It can be connected to a smartphone, tablet, computer, or other mobile device featuring a Lightning port. ❷ USB-C Charging Port When the receiver is plugged into an external device, the external device can be powered via this charging port.
  • Page 8 3.5 mm TRS Receiver (BY-V4-RX35) ❶ 3.5 mm TRS Connector It can be connected to a camera, voice recorder, or other mobile device featuring a 3.5 mm TRS port. ❷ USB-C Charging Port ❸ Power Button • Press and hold for 2 seconds to power on or off.
  • Page 9 Charging Case (BY-V4-CC) ❶ Charging Indicator Status Battery level Indicator Low battery <10% ≤25% 26%~50% Charging 51%~75% 76%~99% Fully charged 100% ❷ USB-C Charging Port...
  • Page 10: How To Use

    How to Use For the BY-V4U or BY-V4D package 1. Connect the USB-C receiver to a smartphone, tablet, or computer that features a USB-C port, or connect the Lightning receiver to a device with a Lightning port. USB-C iOS Lightning 2.
  • Page 11 3. Pairing The transmitter(s) and receiver are paired by default. If they are disconnected, please follow the below steps: ① To make the transmitter(s) enter the pairing state, press and hold its power button for 5 seconds in shutdown mode until its status indicator blinks blue rapidly.
  • Page 12 For the BY-V4 package 1. Attach the 3.5mm TRS receiver to a camera or voice recorder, etc. 3.5 mm TRS 2. Press and hold the power buttons for 2 seconds to turn on the transmitter(s) and receiver.
  • Page 13 3. Pairing The transmitter(s) and receiver are paired by default. If they are disconnected, please follow the below steps: ① To make the transmitter(s) and receiver enter the pairing state, press and hold their power buttons for 5 seconds in shutdown mode until their status indicators blink blue rapidly.
  • Page 14: Troubleshooting

    Troubleshooting If you encounter problems when using the unit, please refer to the following checklist before contacting technical support. If the problem cannot be solved, please contact the dealer's after- sales service department. No sound ① Make sure the transmitter and receiver are paired, and the receiver light glows static blue.
  • Page 15 ③ If the touch points are not firmly connected due to a lack of magnetic force, please contact BOYA after-sales support. The indicator doesn't display charge status Only if the transmitter and receiver are turned off, do their...
  • Page 16: Specifications

    Specifications BY-V4-TX Transmitter Transmission Type 2.4 GHz Modulation GFSK Polar Pattern Omnidirectional Antenna Ceramic antenna Operating Range 200 m (without obstacles) Distortion ≤0.1% Frequency Response 20 Hz-20 kHz Sensitivity -42 dB RF Output Power ≤10 dBm Sampling Rate 48 kHz...
  • Page 17 BY-V4-RXU / RXD Receiver Transmission Type 2.4 GHz Modulation GFSK Polar Pattern Omnidirectional Antenna Ceramic antenna Operating Range 200 m (without obstacles) Signal-to-Noise Ratio 85 dB RF Output Power ≤ 10 dBm Distortion ≤ 0.1% Frequency Response 20 Hz - 20 kHz...
  • Page 18 BY-V4-R35 Receiver Transmission Type 2.4 GHz Modulation GFSK Polar Pattern Omnidirectional Antenna Ceramic antenna Operating Range 200 m (without obstacles) Signal-to-Noise Ratio 85 dB RF Output Power ≤ 10 dBm Distortion ≤ 0.1% Frequency Response 20 Hz - 20 kHz...
  • Page 19 BY-V4-CC Charging Case Battery Type Built-in Li-ion battery Battery Capacity 3.7 V / 1500 mAh Charging Time Approx. 2 hours Power Supply USB-C (DC 5 V / 2 A) 1 time (4*TX+1*RX35) Charge Cycle Times 2 times (4*TX) Weight Approx. 160 g Dimensions 143.6 x 35.5 ×...
  • Page 20 USB-A to USB-C Data Cable × 1 Pairing Pin × 1 Sticker Sheet× 1 BY-V4 BY-V4-TX Transmitter × 4 BY-V4-RX35 3.5 mm TRS Receiver × 1 Charging Case × 1 USB-A to USB-C Data Cable × 1 Sticker Sheet× 1...
  • Page 21 声明 请在使⽤前仔细阅读本⼿册,并严格按照说明进⾏操作和存储。请妥 善保存好说明书以供将来参考。如果⽤户⼿册不能帮助您解决某些问 题,请向零售商寻求帮助或给我们发送电⼦邮件:sales@boya-mic.com 注意事项 1.请勿擅⾃拆开机壳; 2.请勿将本机靠近热源,如散热器、聚光灯或其他产⽣热量的设备; 3.电池不可⾃⾏更换; 4.请使⽤柔软的⼲布清洁本设备; 5.在使⽤和储存时,请注意防尘和防潮。 6.为获得最佳拾⾳效果,请勿将⼿放在⻨克⻛咪头上。...
  • Page 22 概述 BY-V4 系列是⼀款四通道⽆线⻨克⻛系统,⽀持对四个声⾳源同时进 ⾏录制,能够满⾜需要多个声⾳源的活动需求,适⽤于多⼈表演、会 议、演讲、播客、Vlog 拍摄、街头采访等场景。 BY-V4系列预设多种配置,包括 BY-V4、BY-V4U、BY-V4D 套装。 BY-V4 ⽀持 3.5mm TRS 模拟⾳频输出,兼容相机、混⾳器等设备; BY-V4U ⽀持 USB-C 数字⾳频输出,适⽤于含 USB-C 接⼝的智能 ⼿机、平板、电脑等设备;BY-V4D ⽀持 iOS Lightning 数字⾳频输 出,适⽤于含 iOS Lightning 接⼝的智能⼿机、平板、电脑等设备。 其中,BY-V4U、BY-V4D 的接收器⽀持外放功能。BY-V4系列所使⽤ 的是抗⼲扰 2.4GHz 频段,遇到⼲扰情况下能⾃动跳转频道避免噪⾳ 产⽣以及⾳频失真。 BY-V4 系列各套装内的发射器内置全向型⻨克⻛,能够 360° 拾⾳, 且具有⾼性能降噪功能,可从容应对嘈杂的录⾳环境。充电盒可提供...
  • Page 23 产品结构 发射器 (BY-V4-TX) ❶ 内置⻨克⻛ ❷ 状态指示灯 状态 指示灯 未联机 红蓝灯交替闪烁 对码中 蓝灯快闪 联机成功 蓝灯常亮 静⾳模式 蓝灯慢闪 降噪开启 绿灯常亮 低电量 红灯闪烁 关机充电中 红灯常亮...
  • Page 24 注意: 1)若在开机状态下进⾏充电,指示灯将优先显示当前⼯作状态(⽽ ⾮充电状态); 2)发射器处于低电量时请及时充电,否则发射器将在 10 分钟内⾃ 动关机; 3)静⾳模式下⽆法开启或关闭降噪功能。 ❸ 电源键 ⻓按 2 秒开/关机;短按开启/关闭静⾳模式。 关机状态下⻓按 5 秒进⼊对码状态。 ❹ 降噪键 短按开启/关闭降噪功能。 ❺ 背夹 可 360° 旋转。 ❻ USB-C 充电⼝ ⽤于给发射器充电。 ❼ 充电触点 ❽ 防⻛海绵...
  • Page 25 USB-C 接收器 (BY-V4-RXU) ❶ USB-C 接头 可连接⾄带 USB-C 接⼝的⼿机、平板或电脑等设备。 ❷ USB-C 充电孔 当接收器插⼊外部设备时,可通过此充电端⼝为外部设备充电。 ❸ 外放开关 向左拨动开启⼿机外放声⾳,向右拨动关闭⼿机外放声⾳。 ❹ 状态指示灯 状态 指示灯 未联机 蓝灯慢闪 对码中 蓝灯快闪 联机成功 蓝灯常亮 对码孔 ❺ 使⽤随附的顶针插⼊对码孔并按下以进⼊配对模式。...
  • Page 26 Lightning 接收器 (BY-V4-RXD) ❶ Lightning 接头 可连接⾄带 Lightning 接⼝的⼿机、平板或电脑等设备。 ❷ USB-C 充电孔 当接收器插⼊外部设备时,可通过此充电端⼝为外部设备充电。 ❸ 外放开关 向左拨动开启⼿机外放声⾳,向右拨动关闭⼿机外放声⾳。 ❹ 状态指示灯 状态 指示灯 未联机 蓝灯慢闪 对码中 蓝灯快闪 联机成功 蓝灯常亮 对码孔 ❺ 使⽤随附的顶针插⼊对码孔并按下以进⼊配对模式。...
  • Page 27 3.5 mm TRS接收器 (BY-V4-RX35) ❶ 3.5 mm TRS接头 可连接⾄带 3.5 mm TRS 接⼝的相机、录⾳笔等设备。 ❷ USB-C充电孔 ❸ 电源键 ⻓按 2 秒开机/关机。关机状态下⻓按 5 秒进⼊对码状态。 ❹ 状态指示灯 状态 指示灯 未联机 红蓝灯交替闪烁 对码中 蓝灯快闪 联机成功 蓝灯常亮 低电量 红灯闪烁 关机充电中 红灯常亮 ❺ 2TX / 4TX切换键...
  • Page 28 充电盒(BY-V4-CC) ❶ 充电指示灯 状态 电量 指示灯 低电量提示 <10% ≤25% 26%~50% 充电中 51%~75% 76%~99% 充满电 100% ❷ USB-C充电接⼝...
  • Page 29 使⽤⽅法 BY-V4U / V4D 套装 1. 将 USB-C 接收器插⼊带 USB-C 接⼝的⼿机、平板、电脑等移动 设备,或将带 Lightning 接收器后插⼊带 Lightning 接⼝的⼿机、 平板、电脑等移动设备。 USB-C iOS Lightning 2. ⻓按电源键 2 秒,将发射器开机。...
  • Page 30 3. 配对 发射器和接收器出⼚前已配对成功。若其断开连接,请进⾏如下配对 操作: ① 在发射器关机状态下⻓按其电源键 5 秒进⼊配对状态,待指示灯呈 蓝灯快闪时松⼿。 ② 将对码顶针插⼊接收器对码孔内并按下,接收器进⼊配对状态,其 指示灯呈蓝灯快闪。 ③ 发射器和接收器将在 10 秒内完成配对,发射器与接收器的指示灯 均呈蓝灯常亮。 4. 启动视频或⾳频录制应⽤程序;若应⽤程序适⽤,请选择外置⻨克 ⻛。 5. 建议在正式录⾳前做个简短的录⾳测试,检查⾳频⽔平是否可以接 受。 6. 若录⾳环境嘈杂,还可以短按发射器降噪键开启降噪模式,提⾼录 制效果。 7. 将接收器此键 拨⾄ 可开启外放功能,⽆需拔掉接收器 即可直接外放⼿机⾳频。...
  • Page 31 BY-V4套装 1. 将 3.5 mm TRS 接收器插⼊相机、录⾳笔等设备。 3.5 mm TRS 2. ⻓按电源键 2 秒,将发射器、接收器开机。...
  • Page 32 3. 配对 发射器和接收器出⼚前已配对成功。若其断开连接,请进⾏如下配对 操作: ① 在发射器和接收器关机状态下⻓按其电源键 5 秒进⼊配对状态,待 指示灯呈蓝灯快闪时松⼿。 ② 发射器和接收器将在 10 秒内完成配对,发射器与接收器的指示灯 均呈蓝灯常亮。 4. 建议在正式录⾳前做个简短的录⾳测试, 检查⾳频⽔平是否可以接 受。 5. 若录⾳环境嘈杂, 还可以短按发射器降噪键开启降噪模式,提⾼录 制效果。 6. 录制结束后,可将发射器/接收器放⼊充电盒中进⾏充电。 注意: • 当接收器需要与多个发射器⼀起使⽤时,请先操作接收器进⼊对码 状态,再操作发射器依次进⼊对码状态即可。 • 由于在 2.4 GHz 频谱下,信号很容易受⼲扰,请尽量避开墙壁和建 筑物等障碍物,避免接近 2.4 GHz 频率的设备,如⼤功率 Wi-Fi 天 线、收⾳机等。...
  • Page 33 故障排除 在使⽤本机的过程中出现任何问题,请参照以下内容加以解决。如果 此⼿册仍然⽆法解决您遇到的问题,请与我们当地的经销商售后服务 部联系。 录⾳⾳频⽆声 ① 确保发射器已与接收器成功联机, 接收器指⽰灯呈蓝灯常亮, 若未联 机则需要操作对码功能。 ② 确保发射器当前未处于静⾳状态。 若发射器指⽰灯呈蓝灯慢闪, 则需 要短按发射器电源键解除静⾳。 使⽤距离受限、出现变⾳和噪⾳ ① 确保当前使⽤环境中没有⼤功率⽆线路由器或⽆线设备⼲扰。 若⽆法 避免, 则需要找到合适的距离和⻆度。 ② 由于在 . GHz 频谱下, 信号很容易受⼲扰, 请尽量避开墙壁和建筑 物等障碍物, 避免接近 . GHz 频率的设备, 如⼤功率 WiFi 线、 收 ⾳机等。 ③ 检查接收器是否有松动, 将接收器拔出后重新插⼊。 ⽆法开机...
  • Page 34 ⼀拖四时⽆法对码联机 ① 对码需逐⼀进⾏, 暂不⽀持多台发射器同时对码。 接收器与第⼀台发 射器对码成功后, 再操作第⼆台发射器与之对码。 ② 若出现了发射器对码不成功的情况, 则需将发射器关机后, 再次⻓按 其电源键 秒与接收器进⾏对码。 放⼊充电盒⽆法充电 ① 将充电盒进⾏充电, 查看是否电量过低引起。 ② 擦拭产品和充电盒的触点, 避免由灰尘引起的接触不良。 ③ 检查产品放⼊充电盒是否有吸⼒吸附, 若⽆吸⼒需联系售后协助处 理。 指示灯不显示充电状态 检查发射器和 器是否处于开机状态。 产品只有在关机状态下充电时 才显⽰充电灯效。...
  • Page 35 参数 BY-V4-TX发射器 传输⽅式 2.4 GHz 信号调制 ⾼斯频移键控 极性模式 全向型 天线类型 陶瓷天线 操作距离 200 ⽶ (⽆障碍) 射频输出功率 ≤10 dBm 失真 ≤ 0.1% 频率响应 20 Hz-20 kHz 灵敏度 -42 dB 参考⾳频输⼊电平 -20~-42 dBu(MIC输⼊,0dB增益) 采样率 48 kHz 信噪⽐ 85 dB ⾳频输⼊ 内置咪头 内置电池容量...
  • Page 36 BY-RXU / RXD接收器 传输⽅式 2.4 GHz 信号调制 GFSK 极性模式 全向型 天线类型 陶瓷天线 操作距离 最远⾄ 200 ⽶(⽆障碍) 射频输出功率 ≤10 dBm 失真 ≤ 0.1% 频率响应 20 Hz - 20 kHz 信噪⽐ 85 dB RXU: USB-C ⾳频输出 RXD: Lightning 供电⽅式 外接设备供电 RXU:9 g 重量...
  • Page 37 BY-RX35 接收器 传输⽅式 2.4 GHz 信号调制 GFSK 极性模式 全向型 天线类型 陶瓷天线 操作距离 最远⾄ 200 ⽶(⽆障碍) 射频输出功率 ≤10 dBm 失真 ≤ 0.1% 频率响应 20 Hz - 20 kHz 信噪⽐ 85 dB 电池容量 260 mAh 续航时⻓ 2 TX 模式约 10 ⼩时;4 TX 模式约 6⼩时 充电时⻓...
  • Page 38 BY-V4-CC充电盒 内置锂电池 电池类型 内置电池容量 3.7 V / 1500 mAH 充电时⻓ 约 2 ⼩时 供电⽅式 USB-C 充电⼝(直流电 5 V / 2 A) 1 次(4*TX+1*RX35) 可供循环充电次数 2 次(4*TX) 重量 约 160 g 尺⼨ 143.6 × 35.5 × 80.5 mm ⼯作温度 0°C ~ + 50°C 贮存温度...
  • Page 39 BY-V4-RXD iOS Lightning 接收器 × 1 充电盒 × 1 USB-A 转 USB-C 数据线 × 1 对码顶针 × 1 贴纸 × 1 BY-V4 BY-V4-TX 发射器 × 4 BY-V4-RX35 3.5 mm TRS 接收器 × 1 充电盒 × 1 USB-A 转 USB-C 数据线 × 1 贴纸 × 1...
