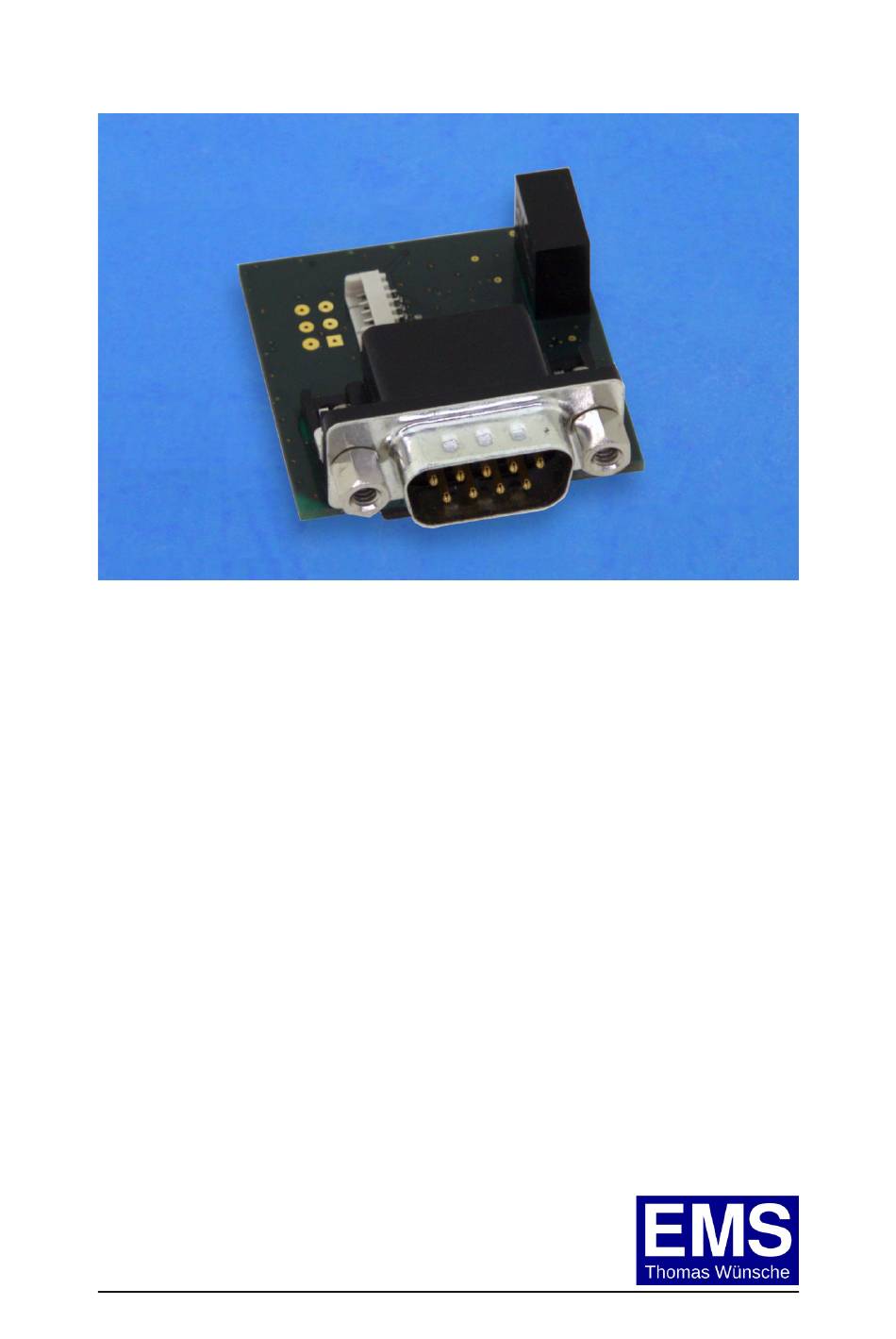

- Page 1 C N PC Interface CPCUS /FDembedded ser manual...
- Page 2 1.02 Documentation date: May 24th, 2024 No part of this document or the software described herein may be reproduced in any form without prior written agreement from EMS Dr. Thomas Wünsche. For technical assistance please contact: EMS Dr. Thomas Wünsche Sonnenhang 3 D-85304 Ilmmünster...
- Page 3 CPC-USB/FDembedded User Manual 1.1 Attributes 1.2 General Description 1.3 Ordering Information 2.1 Absolute Limiting Values 2.2 Nominal Values 3.1 Pin Configuration of CAN Connector 3.2 Pin Assignment of USB connection cable 3.3 Dimensions 3.4 Installation 3.5 SocketCAN 4.1 Instruction for Disposal 4.2 FCC Statement...
- Page 4 User Manual CPC-USB/FDembedded THIS PAGE INTENTIONALLY LEFT BLANK Dr. Thomas Wünsche...

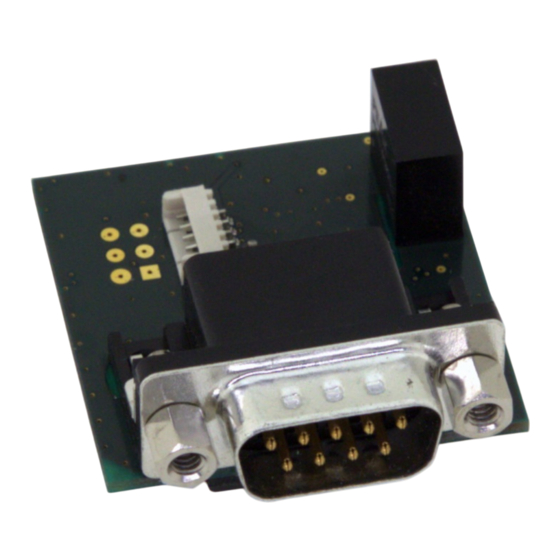

- Page 5 Linux socketCAN is in development • CPC-USB/FDembedded is a CAN interface for internal USB ports. Due to its compact size it is eminently suitable for applications in embedded PCs. It is installed directly at a SUB-D9 case opening or a slot panel and wired with the included cable to a pin connector of an internal USB interface of the mainboard.
- Page 6 User Manual CPC-USB/FDembedded 10-08-502-xx CAN FD PC interface for internal USB ports with Cortex M4 microcontroller and galvanic separation of the CAN transceiver xx denotes language of delivery: 10 German 20 English Dr. Thomas Wünsche...
- Page 7 CPC-USB/FDembedded User Manual Any (also temporary) stress in excess of the limiting values may cause permanent damage on CPC-USB/FDembedded and connected devices. Exposure to limiting conditions for extended periods may affect the reliability and shorten the life cycle of the device.
- Page 8 User Manual CPC-USB/FDembedded The CAN interface connector (D-Sub9 male) for the standard version complies to CiA Standard DS 102. The pin usage is detailed in the following tables: CAN_L CAN data line (dominant low) CAN Ground CAN_H CAN data line (dominant high)
- Page 9 CPC-USB/FDembedded User Manual Dr. Thomas Wünsche...
- Page 10 User Manual CPC-USB/FDembedded CPC-USB/FDembedded may be connected to a free internal USB port of a computer. To avoid damage please pay attention to the following hints: Avoid damage by achieving equal potential between the corresponding devices before plugging any connections to CPC-USB/FDembedded.
- Page 11 CPC-USB/FDembedded User Manual With a recent Linux kernel the socketCAN driver for the CPC-USB/ ARM7 (ems_usb.ko) is already included. It supports the following interface versions: CPC-USB/ARM7 v1.0 and v2.0, also low speed variants CPC-USB/ARM7-GTI v1.0 and v2.0, also low speed variants...
- Page 12 As an alternative the products can be returned to EMS free of charge. CPC-USB/FDembedded has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
- Page 13 CPC-USB/FDembedded User Manual Dr. Thomas Wünsche...
- Page 14 User Manual CPC-USB/FDembedded Dr. Thomas Wünsche...
