PORSCHE RS Door Pull
DH51
DH51 RS Door Pull Installation Instructions

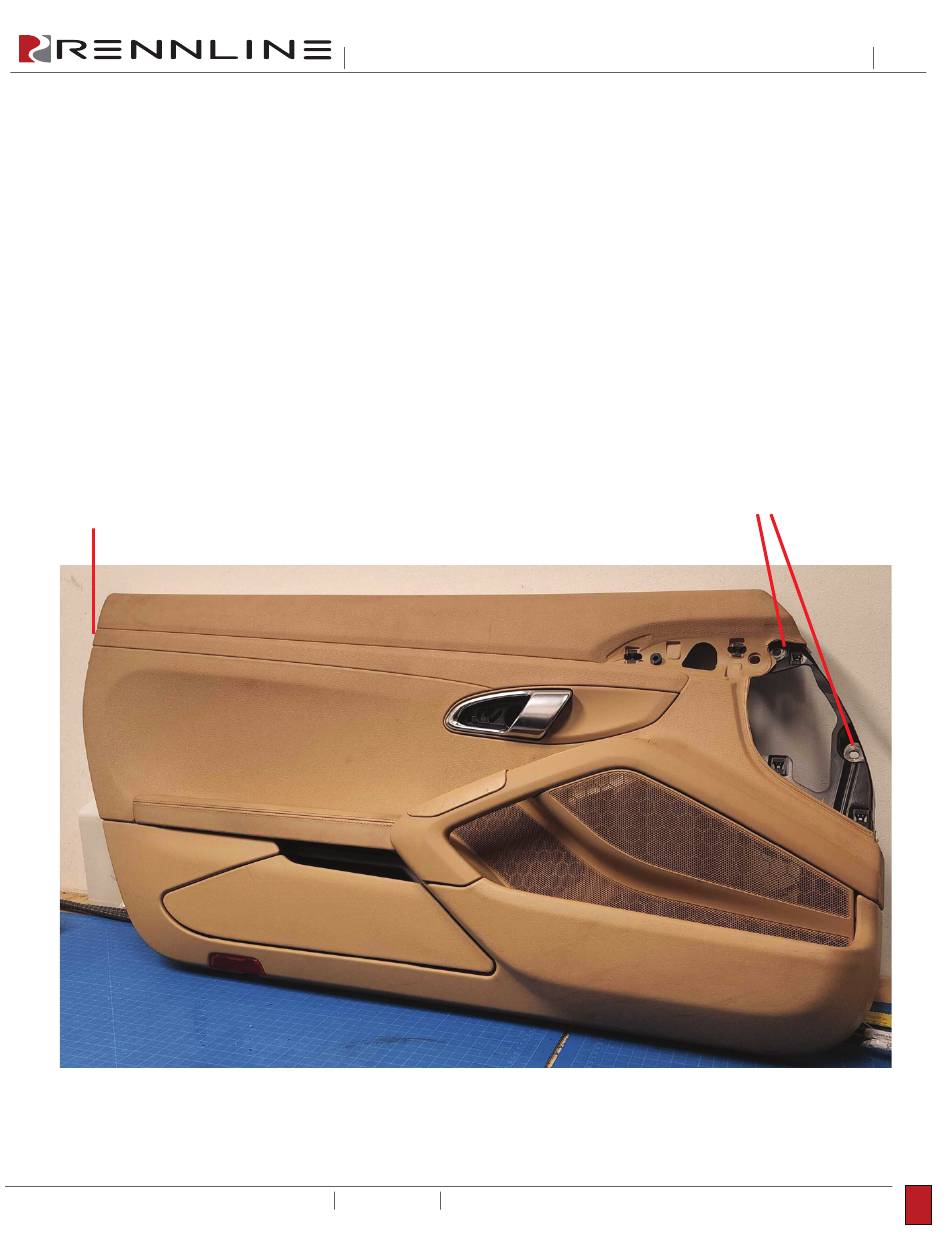

Start this installation by removing the door card. Remove trim pieces as shown in the image below and
remove all fastening hardware.
When all hardware is removed lift up on the door card by the handle. This may take some force on the initial
removal.
When free, unplug all power and sensors connected to the door card.
Remove the door release cable.
Torx Screw
Torx Screw on backside
RENNLINE 32 CATAMOUNT DR. MILTON, VT 05468
2 1 3 . 2 2 4 . 7 3 9 3
WWW.RENNLINE.COM
